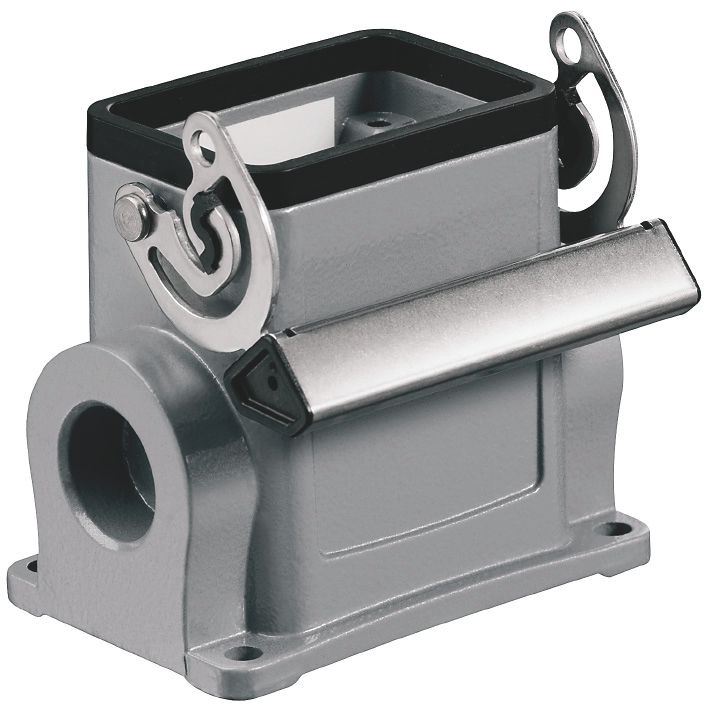

Weidmüller 1900460000 HDC 06B SLU 1M20G HDC housing BG:3 IP65 plinth

Your rating:
Average rating
product review for Weidmüller 1900460000 HDC 06B SLU 1M20G HDC housing BG:3 IP65 plinth
( 4 / 5 ) 7 ratings
Weidmüller 1900460000
This image may differ from the desired article.
Weidmüller 1900460000Weidmüller 1900460000
20,61 EUR
( 24,53 EUR incl. VAT )
≈ £17.21  |  ≈ $22.69
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Weidmüller 1900460000 HDC 06B SLU 1M20G HDC housing BG:3 IP65 plinth
Datasheet:file_download Download
Lieske Part No.:566092
Mfg Part No: 1900460000
UPC/EAN: 4032248585939
Weight:0.232 kg
Type:HDC 06B SLU 1M20G
Graduated prices net
From piecesPrice per pieces
1519,06 EUR
3017,52 EUR
7015,97 EUR
10014,43 EUR

Product information for Weidmüller 1900460000:

The Weidmüller HDC 06B SLU 1M20G is an industrial connector housing, specifically designed as a plinth for the HDC connector series. It serves as a mechanical and electrical connection point in industrial applications where high mechanical stability and protection against environmental influences are required. The housing is part of a modular system that enables flexible and secure connection of plugs and sockets, particularly in environments with increased requirements for protection rating.

Applications
This housing is suitable for use in industrial plants, such as machine building, automation technology, and manufacturing technology. It is used wherever a fixed mounting of connectors on a surface is required, for example on machine plates, enclosures, or control units. The protection rating IP65 makes it suitable for outdoor use or in humid environments, provided there is no direct water impact.

Functions and Equipment in Detail
The housing is made of a special die-cast alloy, offering high mechanical strength and resistance to corrosion. The surface is multi-stage sealed, providing an additional protective layer against moisture, dust, and chemical influences. This construction ensures a long service life and reliable performance under industrial conditions. The housing is designed as a plinth, meaning it functions as a fixed-mounted socket into which a matching plug is inserted.

Technology Explained Simply
The die-cast alloy used ensures high strength and dimensional stability, which is particularly important when the housing is exposed to mechanical stress. The multi-stage surface sealing protects the housing not only against dust but also against splashing water and humid environments, corresponding to the protection rating IP65. This rating means the housing is dust-tight and protected against water jets from any direction, as long as there is no direct water impact. The design ensures a secure and durable electrical connection between plug and socket.

Compatibility and Accessories
The housing is specifically designed for the HDC connector series by Weidmüller. It is compatible with plugs from the HDC series that also feature the designation BG:3. As accessories, suitable cable glands are available, such as VG M20 - MS 68 (brass, nickel-plated) and VG M20 - K 68 (plastic). These cable glands enable a secure and watertight fixation of cables in the housing. Additionally, a matching cover with longitudinal bracket (HDC 06B DODL 2BO) is available, which provides additional protection for the housing and facilitates installation.

Mounting and Installation
The housing is mounted using a mounting book or a suitable hole in the desired surface. Mounting is done via screws or fastening elements, selected according to the application and mounting surface. The cable glands are directly attached to the housing to securely fix the cables and ensure a watertight connection. The mounting is designed to allow quick and secure installation without requiring additional tools or special skills.

Advantages in Operation
The housing offers high mechanical stability and a reliable electrical connection. The protection rating IP65 ensures safe operation even in humid or dusty environments. The multi-stage sealing and die-cast alloy increase service life and reduce maintenance costs. Compatibility with the HDC series enables flexible and modular system design, making adaptations and expansions easy to implement. Mounting is simple and does not require special tools, accelerating installation in practice.

General
Degree of protectionIP65
Type of enclosureBase
Materialdie-cast alloy
Surface sealingmulti-stage
AccessoriesCable glands VG M20 - MS 68, VG M20 - K 68, cover with longitudinal bracket HDC 06B DODL 2BO


Product data sheet
Datasheet for Weidmüller 1900460000, EAN: 4032248585939

Questions & answers

What is the delivery time of Weidmüller 1900460000 HDC 06B SLU 1M20G HDC housing BG:3 IP65 plinth ?

The article Weidmüller 1900460000 HDC 06B SLU 1M20G HDC housing BG:3 IP65 plinth is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Weidmüller 1900460000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Weidmüller 1900460000 HDC 06B SLU 1M20G HDC housing BG:3 IP65 plinth always at the best possible price. We can give you a discount of 2% on Weidmüller 1900460000 HDC 06B SLU 1M20G HDC housing BG:3 IP65 plinth if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Weidmüller 1900460000 HDC 06B SLU 1M20G HDC housing BG:3 IP65 plinth we can offer you a price of 19,06 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
