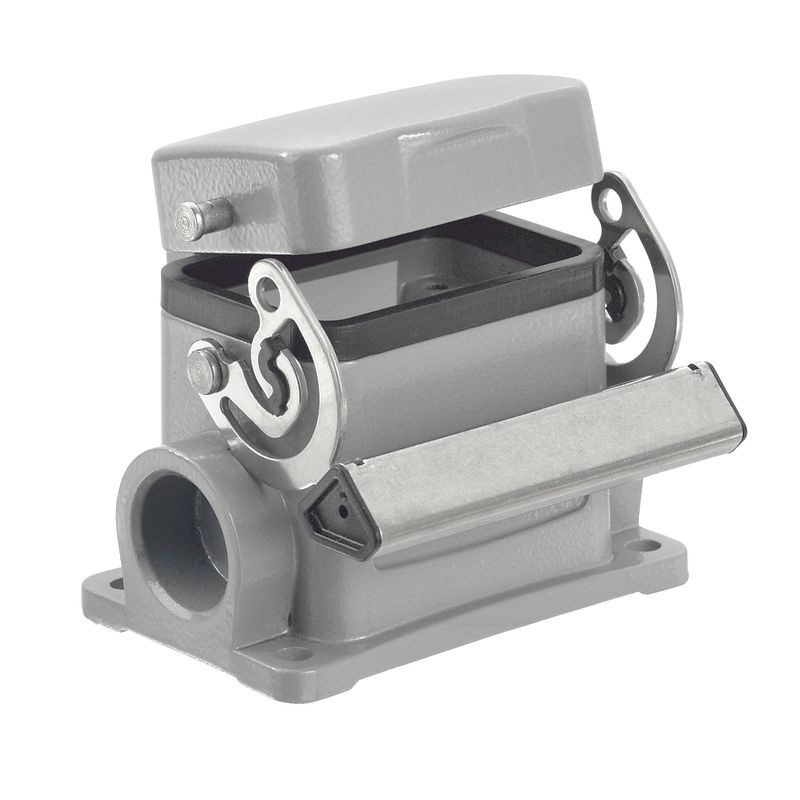

Weidmüller 1900360000 HDC 06B SDLU 1M20G housing BG:3 IP65 plinth

Your rating:
Average rating
product review for Weidmüller 1900360000 HDC 06B SDLU 1M20G housing BG:3 IP65 plinth
( 4.5 / 5 ) 6 ratings
Weidmüller 1900360000
This image may differ from the desired article.
Weidmüller 1900360000Weidmüller 1900360000
36,10 EUR
( 42,96 EUR incl. VAT )
≈ £30.14  |  ≈ $39.75
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Weidmüller 1900360000 HDC 06B SDLU 1M20G housing BG:3 IP65 plinth
Lieske Part No.:640901
Mfg Part No: 1900360000
UPC/EAN: 4032248585922
Weight:0.3 kg
Type:HDC 06B SDLU 1M20G
Graduated prices net
From piecesPrice per pieces
1033,39 EUR
2530,69 EUR
5027,98 EUR
7525,27 EUR

Product information for Weidmüller 1900360000:

The Weidmüller HDC 06B SDLU 1M20G is an industrial connector housing, specifically designed for use in demanding environments. It serves as a base for connector systems and provides reliable protection for the integrated electrical components. The housing is made from a special die-casting alloy, ensuring high mechanical stability and corrosion resistance. The surface is protected by a multi-stage sealing process, enhancing resistance against external influences such as moisture, dust, and chemical substances.

Applications
This housing is intended for use in industrial electrical engineering, particularly in installations exposed to high mechanical and climatic stresses. It is suitable for use in production plants, automation systems, and other environments where high reliability and longevity of electrical connections are required. The IP65 protection rating also makes it suitable for outdoor use, provided there is no direct, continuous water exposure.

Functions and Equipment in Detail
The housing features a robust construction characterized by the use of a special die-casting alloy and a multi-stage surface sealing. These measures ensure high mechanical strength and effective protection against environmental influences. The sealing prevents the ingress of dust and splashing water, extending the service life of the installed components and enhancing operational safety.

Technology Explained Simply
The die-casting alloy used offers an optimal combination of strength and corrosion resistance, which is crucial for long-term functionality in industrial applications. The multi-stage surface sealing protects the housing against contamination, moisture, and chemical influences. The IP65 protection rating means the housing is dust-tight and protected against splashing water, making it suitable for use in humid or dusty environments. The designation BG:3 refers to the component class, which defines the mechanical and electrical requirements for the housing.

Compatibility and Accessories
Examples include the VG M20 - K 68 cable gland made of plastic and the VG M20 - MS 68 cable gland made of brass, nickel-plated. These cable glands enable secure and tight cable attachment to the housing, ensuring the electrical connection remains stable and weather-resistant.

Operation
The housing provides high operational safety due to its robust construction and effective protective measures against environmental influences. The use of high-quality materials and the special sealing process ensures reliable performance even under difficult conditions. Mounting is typically done by securing to a mounting surface, with exact installation instructions depending on the specific application. The use of appropriate cable glands is essential for a tight and secure cable connection.

Mounting and Installation
Mounting of the housing is typically done on a suitable surface, such as a control panel or housing base. Exact mounting instructions depend on the specific application and local regulations. Fixing is usually done with screws or other suitable fasteners. Mounting does not require special tools, although using appropriate tools is recommended for a secure and tight connection.

Advantages in Operation
The housing offers high reliability and longevity due to the use of high-quality materials and multi-stage sealing. The IP65 protection rating ensures effective protection against dust and splashing water, enhancing operational safety in demanding environments. The robust construction ensures the housing remains stable even under mechanical stress. Compatibility with various cable glands allows flexible adaptation to different requirements.

General
Degree of protectionIP65
Materialdie-cast alloy
Surface sealingmulti-stage
Module classBG:3
Functionsocket for connectors


Questions & answers

What is the delivery time of Weidmüller 1900360000 HDC 06B SDLU 1M20G housing BG:3 IP65 plinth ?

The article Weidmüller 1900360000 HDC 06B SDLU 1M20G housing BG:3 IP65 plinth is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Weidmüller 1900360000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Weidmüller 1900360000 HDC 06B SDLU 1M20G housing BG:3 IP65 plinth always at the best possible price. We can give you a discount of 2% on Weidmüller 1900360000 HDC 06B SDLU 1M20G housing BG:3 IP65 plinth if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Weidmüller 1900360000 HDC 06B SDLU 1M20G housing BG:3 IP65 plinth we can offer you a price of 33,39 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Weidmüller 1900360000 HDC 06B SDLU 1M20G housing BG:3 IP65 plinth

Weidmüller 2811470000 VG M20 - K 68 cable gland (plastic) Weidmüller LogoWeidmüller 2811470000 VG M20 - K 68 cable gland (plastic) Kabelverschraubung aus Kunststoff zum Abdichten Gehäusen bei der Einführung von Leitungen. Mit Zugentlastung.

Lieske Part No.: 1301285
Mfg Part No: 2811470000
Type: VG M20 - K 68
58,19 EUR 58,36 EUR
Weidmüller 2811470000 plus VAT
≈ £48.59  |  ≈ $64.07
Made to order · Delivery time approx. 20 workdaysinfo_outline
Weidmüller 1772220000 VG M20 - MS 68 cable gland brass nickel-plated Weidmüller LogoWeidmüller 1772220000 VG M20 - MS 68 cable gland brass nickel-plated Metal cable gland for sealing housings when inserting cables. With strain relief.

Lieske Part No.: 1312442
Mfg Part No: 1772220000
Type: VG M20 - MS 68
336,25 EUR
Weidmüller 1772220000 plus VAT
≈ £280.77  |  ≈ $370.21
Made to order · Delivery time approx. 20 workdaysinfo_outline
