Weidmüller 1788180000 HDC 16B TSBU 1M25G HDC housing BG:6 IP65 plug

Your rating:
Average rating
product review for Weidmüller 1788180000 HDC 16B TSBU 1M25G HDC housing BG:6 IP65 plug
( 4.5 / 5 ) 14 ratings

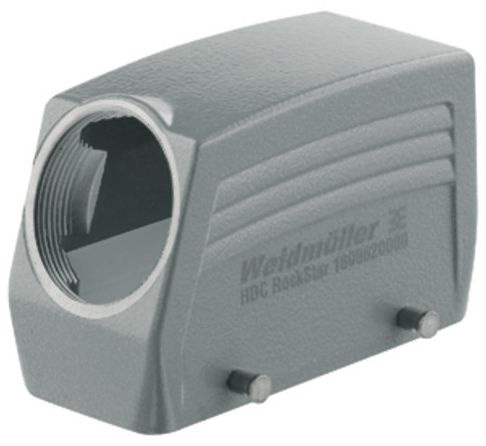

Weidmüller 1788180000
This image may differ from the desired article.
Weidmüller 1788180000Weidmüller 1788180000
18,43 EUR
( 21,93 EUR incl. VAT )
≈ £15.39  |  ≈ $20.29
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >5 pieces
1x Weidmüller 1788180000 HDC 16B TSBU 1M25G HDC housing BG:6 IP65 plug
Lieske Part No.:881150
Mfg Part No: 1788180000
UPC/EAN: 4032248205714
Weight:0.234 kg
Type:HDC 16B TSBU 1M25G
Graduated prices net
From piecesPrice per pieces
1517,74 EUR
3017,05 EUR
7016,36 EUR
10015,67 EUR

Product information for Weidmüller 1788180000:

The Weidmüller HDC 16B TSBU 1M25G is an industrial connector housing, specifically designed for use in demanding environments where high mechanical load capacity and protection against dust and moisture are required. The housing serves as a base for connector solutions in industrial applications and is typically used in automation technology, machine building, or electrical installations. It is designed as a plug and features a protection rating suitable for use in damp or dusty areas.

Applications

The housing is designed for use in industrial plants where high mechanical stability and environmental protection are necessary. It is particularly suitable for applications in outdoor environments or production environments with increased contamination risk. The IP65 protection rating ensures reliable protection against dust and splashing water, making it suitable for use in the food industry, agriculture, or machine building. Use in combination with compatible connector modules enables flexible and secure connection technology.

Functions and Equipment in Detail

The housing is made of a special die-cast alloy, providing high mechanical strength and resistance to corrosion. The surface is protected by a multi-stage sealing, which extends the housing's service life in harsh environments. The construction ensures a tight cover of internal components and protects against mechanical stress and environmental influences. The plug design enables a secure and quick connection with compatible socket or connector modules.

Technology Explained Simply

The die-cast alloy used ensures high strength and dimensional stability of the housing, which is particularly advantageous under mechanical loads or temperature fluctuations. The multi-stage surface sealing protects against corrosion and contamination, maintaining functionality over a longer period. The IP65 protection rating means the housing is dust-tight and protected against splashing water, making it suitable for use in damp or dusty environments. The designation BG:6 refers to the component size, defining the dimensions and compatibility with other parts.

Compatibility and Accessories

The housing is compatible with other components from the HDC system by Weidmüller. Suitable accessories include, for example, the HDC housing BG:6 IP65 cover cross-bracket (article number 1665270000), used for finishing the housing. Additionally, cable glands such as VG M25 - MS 68 (article number 1772230000) or VG M25 - K 68 (article number 1772310000) are available to ensure a secure and watertight cable connection. These accessories allow individual adaptation to the specific requirements of the installation.

Mounting and Installation

Mounting is carried out in the usual manner for industrial connectors. The housing can be attached to machines, enclosures, or other devices, with the exact mounting method depending on the specific application and mechanical requirements. The use of suitable cable glands ensures a secure and watertight cable connection. Installation is typically performed without additional tools, although the exact mounting instructions may vary according to the application.

Advantages in Operation

Using the Weidmüller HDC 16B TSBU 1M25G provides high reliability and longevity in operation. The special die-cast alloy and multi-stage sealing ensure a long service life, even under harsh operating conditions. The IP65 protection rating ensures reliable protection against environmental influences, increasing maintenance-free operation. Compatibility with other HDC components enables flexible and modular system design, adaptable to different requirements.

General
Degree of protectionIP65
Module sizeBG:6
Type of enclosurePlug
Materialdie-cast alloy
Surface sealingmulti-stage


Questions & answers

What is the delivery time of Weidmüller 1788180000 HDC 16B TSBU 1M25G HDC housing BG:6 IP65 plug ?

The article Weidmüller 1788180000 HDC 16B TSBU 1M25G HDC housing BG:6 IP65 plug is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Weidmüller 1788180000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Weidmüller 1788180000 HDC 16B TSBU 1M25G HDC housing BG:6 IP65 plug always at the best possible price. We can give you a discount of 2% on Weidmüller 1788180000 HDC 16B TSBU 1M25G HDC housing BG:6 IP65 plug if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Weidmüller 1788180000 HDC 16B TSBU 1M25G HDC housing BG:6 IP65 plug we can offer you a price of 17,74 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
