Weidmüller 1787760000 HDC 24B TSBU 1M25G housing BG:8 IP65 plug

Your rating:
Average rating
product review for Weidmüller 1787760000 HDC 24B TSBU 1M25G housing BG:8 IP65 plug
( 4.4 / 5 ) 9 ratings

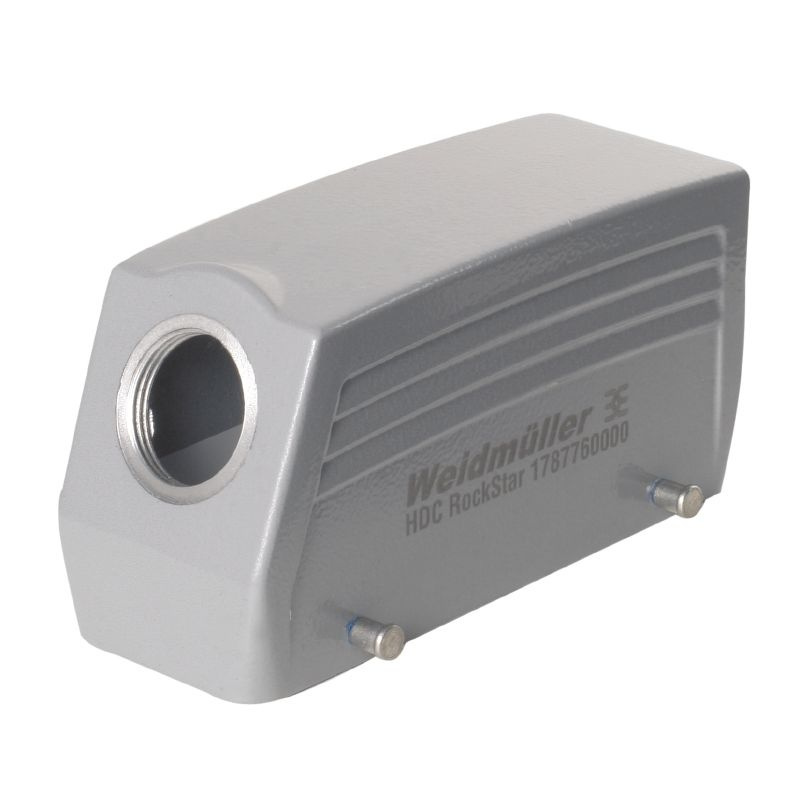

Weidmüller 1787760000
This image may differ from the desired article.
Weidmüller 1787760000Weidmüller 1787760000
21,85 EUR
( 26,00 EUR incl. VAT )
≈ £18.24  |  ≈ $24.06
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Weidmüller 1787760000 HDC 24B TSBU 1M25G housing BG:8 IP65 plug
Lieske Part No.:412143
Mfg Part No: 1787760000
UPC/EAN: 4032248205103
Weight:0.281 kg
Type:HDC 24B TSBU 1M25G
Graduated prices net
From piecesPrice per pieces
1520,21 EUR
3018,57 EUR
7016,93 EUR
10015,30 EUR

Product information for Weidmüller 1787760000:

The Weidmüller HDC 24B TSBU 1M25G is an industrial connector housing, specifically designed for use in demanding environments of industrial electrical engineering. It serves as a protective housing for connectors and provides a robust cover for electrical connections, particularly in installations exposed to high mechanical stress, dust, or moisture. The housing is designed as a plug and corresponds to component group BG:8, ensuring compatibility with standardized connector systems from Weidmüller.

Applications
This housing is intended for use in industrial installations where high mechanical stability and environmental protection are required. It is particularly suitable for applications in automation technology, manufacturing industry, and machine and plant engineering. The protection rating IP65 ensures high protection against dust and splashing water, making it suitable for outdoor use or in damp indoor environments. Its use in environments with increased contamination risk or direct wetness is therefore possible.

Functions and Equipment in Detail
The housing is made of a special die-cast alloy, offering high mechanical strength and resistance to corrosion. The surface is protected by a multi-stage sealing, which extends the housing's service life and increases its resistance to environmental influences such as moisture, chemicals, or mechanical stress. The design ensures a secure and durable installation of the connector, with the shape optimized for optimal fit and mechanical stability.

Technology Explained Simply
The die-cast alloy used ensures high strength and dimensional stability of the housing, which is particularly advantageous under vibrations or mechanical loads. The multi-stage surface sealing protects the housing against corrosion and wear, enabling reliable long-term operation even in harsh operating environments. The IP65 protection rating means the housing is dust-tight and protected against splashing water, making it suitable for use in damp or wet environments. The designation BG:8 refers to the component group number, which defines the geometric and mechanical requirements for mounting and connection with other components.

Compatibility and Accessories
The housing is part of the HDC connector system from Weidmüller and is compatible with other components from this series. Suitable accessories include, for example, the HDC housing BG:8 IP65 cover cross-bracket (article number 1665640000), which serves as a closure cover for the plug. Additionally, cable glands such as VG M25 - K 68 (article number 1772310000) or VG M25 - MS 68 (article number 1772230000) are available, which can be used for secure cable fixation within the housing. These accessories enable flexible and secure integration into existing installations.

Mounting and Installation
Mounting is carried out in the usual manner for industrial connectors. The housing is attached to the designated position, with mechanical fit and cable gland securing ensuring a tight and stable connection. The use of appropriate cable glands is recommended to ensure a secure and durable connection. Installation requires no special tools, with the exact mounting instructions depending on the specific application.

Advantages in Operation
The housing offers high mechanical stability and reliable protection for the integrated connectors. The IP65 protection rating ensures long service life even in harsh environments. The use of a special die-cast alloy and multi-stage sealing increases resistance to environmental influences. Compatibility with other HDC components enables flexible and modular system design.

General
ManufacturerWeidmüller
Degree of protectionIP65
ModuleBG:8
Housing shapePlug
Materialdie-cast alloy
Surface sealingmulti-stage


Questions & answers

What is the delivery time of Weidmüller 1787760000 HDC 24B TSBU 1M25G housing BG:8 IP65 plug ?

The article Weidmüller 1787760000 HDC 24B TSBU 1M25G housing BG:8 IP65 plug is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Weidmüller 1787760000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Weidmüller 1787760000 HDC 24B TSBU 1M25G housing BG:8 IP65 plug always at the best possible price. We can give you a discount of 2% on Weidmüller 1787760000 HDC 24B TSBU 1M25G housing BG:8 IP65 plug if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Weidmüller 1787760000 HDC 24B TSBU 1M25G housing BG:8 IP65 plug we can offer you a price of 20,21 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
