Weidmüller 1257660000 KTB MOPL 2626 S2N H component for expansion

Your rating:
Average rating
product review for Weidmüller 1257660000 KTB MOPL 2626 S2N H component for expansion
( 4.3 / 5 ) 3 ratings
Weidmüller 1257660000
This image may differ from the desired article.
Weidmüller 1257660000Weidmüller 1257660000
34,96 EUR 35,05 EUR
( 41,60 EUR incl. VAT )
≈ £29.26  |  ≈ $38.42
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Weidmüller 1257660000 KTB MOPL 2626 S2N H component for expansion
Lieske Part No.:509071
Mfg Part No: 1257660000
UPC/EAN: 4050118049084
Weight:0.123 kg
Type:KTB MOPL 2626 S2N H
Graduated prices net
From piecesPrice per pieces
1034,17 EUR
2533,39 EUR
5032,60 EUR
7531,81 EUR

Product information for Weidmüller 1257660000:

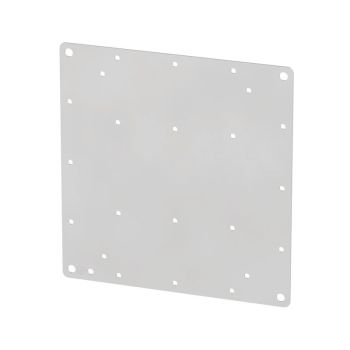

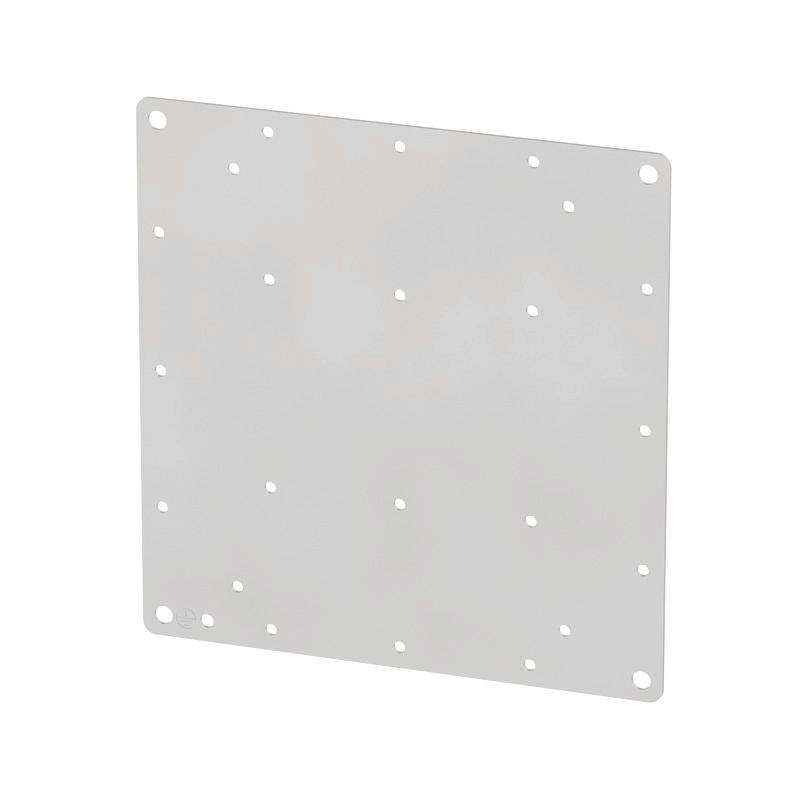

The mounting plate KTB MOPL 2626 S2N H from Weidmüller is a component for use in industrial enclosures and small housings. It serves as a mounting base for support rails or electrical operating devices within an enclosure. The plate enables a structured and stable mounting of components, thereby simplifying the installation and maintenance of control and switching devices. It is specifically designed for use in enclosed housings, where secure and vibration-resistant mounting is required.

Applications
The mounting plate is used in industrial electrical engineering, particularly in enclosures, control cabinets and other enclosed housings. It is suitable for mounting support rails, such as those used for contactors, relays or fuses. Electrical operating devices that must be mounted on a flat, stable surface can also be secured to this plate. The application typically occurs as part of internal mounting, where the plate is inserted into the housing and fixed in place.

Functions and Equipment in Detail
The plate is designed to provide a stable and secure mounting surface. It allows components to be mounted using screws or other fastening elements, which are screwed into the housing or directly into the plate. The exact fastening is achieved via pre-drilled holes or mounting points, designed for use with standard screws. The plate itself is made from a robust material that meets the requirements of industrial environments.

Technology Explained Simply
The mounting plate KTB MOPL 2626 S2N H is a mechanical component that does not perform any electrical functions, but serves purely structural purposes. Its main function is the mechanical stabilization of mounted components. The designation “S2N H” refers to the specific version of the plate, designed for certain housing dimensions or mounting requirements. The plate is inserted into the housing and secured there, with the exact mounting method depending on the respective housing construction.

Compatibility and Accessories
To secure the mounting plate in the housing or to mount components onto the plate, suitable screws and fastening elements can be used. As accessories, for example, the hex socket screw FKSC M6X8 D9/SW3 and the clamp GFSC M5x10 TX20 SET are available. These elements ensure the secure fastening of the plate in the housing or the mounting of electrical operating devices onto the plate. The exact selection of fastening elements depends on the mounting requirements and the hole spacing of the plate.

A mounting instruction or additional documentation is not part of the delivery. Mounting is carried out according to standard electrical installation practices, with the fastening screws selected according to the respective housing construction.

Mounting and Installation
The mounting plate is inserted into the designated housing and secured using screws or other fastening elements. The exact mounting method depends on the housing construction. The holes in the plate are designed for use with standard screws. After securing the plate in the housing, support rails or electrical operating devices can be mounted onto the plate.

Advantages in Operation
The mounting plate provides a stable and vibration-resistant mounting for electrical components, increasing the reliability of the installation. The structured mounting facilitates maintenance and component replacement. Using a dedicated mounting plate reduces the risk of wear or damage to components due to inadequate fastening. The plate is designed for use in industrial environments and provides a reliable base for mounting control and switching devices.

General
Product typeMounting plate
Functionmounting of support rails or electrical equipment


Questions & answers

What is the delivery time of Weidmüller 1257660000 KTB MOPL 2626 S2N H component for expansion ?

The article Weidmüller 1257660000 KTB MOPL 2626 S2N H component for expansion is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Weidmüller 1257660000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Weidmüller 1257660000 KTB MOPL 2626 S2N H component for expansion always at the best possible price. We can give you a discount of 2% on Weidmüller 1257660000 KTB MOPL 2626 S2N H component for expansion if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Weidmüller 1257660000 KTB MOPL 2626 S2N H component for expansion we can offer you a price of 34,17 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
