Walther-Werke 6H53101LA

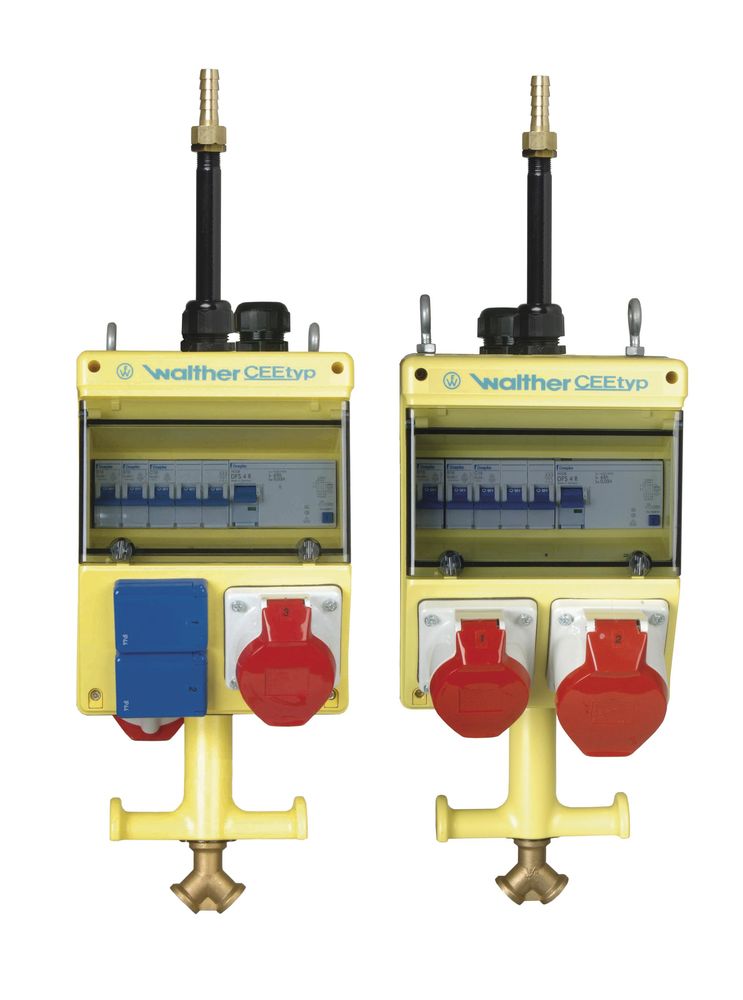

Walther plastic hanging socket combination
|
1.003,96 EUR |
|
|
( 1.194,71 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1768726 |
|---|---|
| Mfg Part No: | 6H53101LA |
| UPC/EAN: | 4015609609451 |
| Weight: | 0 kg |
Product information for Walther-Werke 6H53101LA:
in accordance with IEC 61439-part 1 and 3
Housing (6H5) made of silicone and halogen-free PC/ABS
Color: RAL 1016/9005 -sulphur yellow/jet black-
with 2 hanging eyes
with handle hooks at the bottom
with transparent lids that snap into place at the top
Protection class II
Protection type: IP44
Size approx.: 450 x 183 x 253mm / HBT
Connection:
1 cable screw connection M40 at the top
1 connection up to 25qmm 5P
outlets/fuse:
1 residual current device (RCD) 4P 63A/30mA -A-
1 CEE mounting box straight 32A 5P 400V 6h
with circuit breaker (MCB) 3P 32A -C-
2 CEE mounting boxes straight 16A 5P 400V 6h
each with 1 miniature circuit breaker (MCB) 3P 16A -C-
2 earthed sockets 16A 3P 230V
each with 1 miniature circuit breaker (MCB) 1P 16A -B-
1 compressed air connection
with internal thread at the top and bottom 1/2 inch
compressed air class 5
operating pressure < 16 bar
Hanging socket combination according to DIN EN 61439:
individually tested
, wired ready for
connection Rated current: 63A
Type: 6H53101LA
