Walther-Werke 6H40102LA

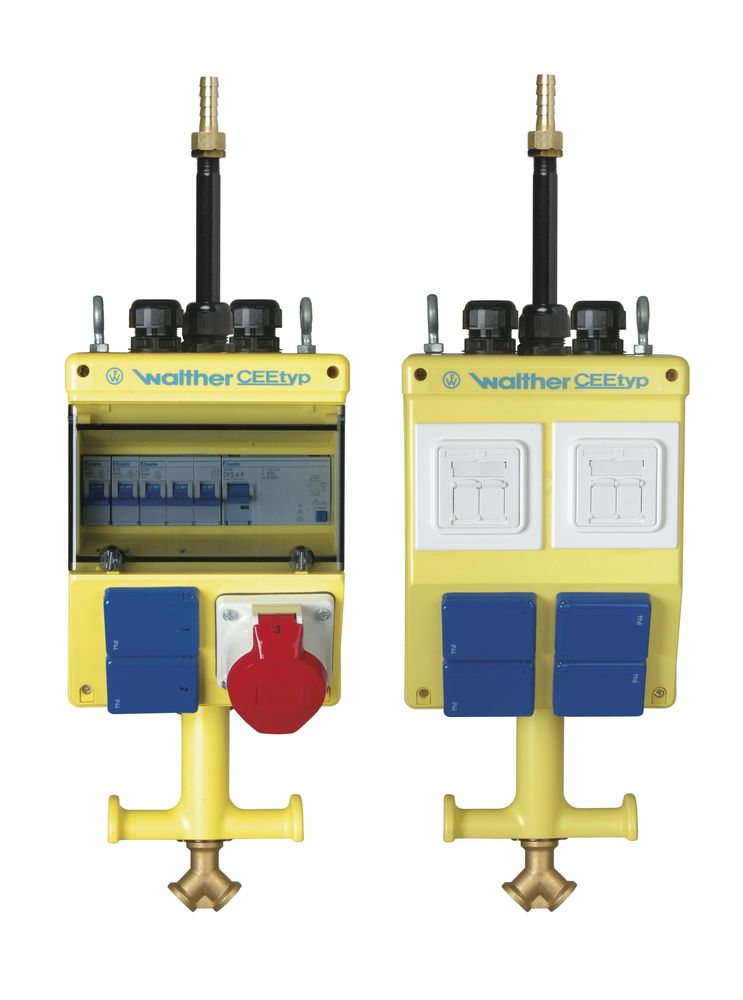

Walther plastic hanging socket combination
|
982,87 EUR |
|
|
( 1.169,62 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1768712 |
|---|---|
| Mfg Part No: | 6H40102LA |
| UPC/EAN: | 4015609609543 |
| Weight: | 0 kg |
Product information for Walther-Werke 6H40102LA:
in accordance with IEC 61439-part 1 and 3
Housing (6H4) made of silicone and halogen-free PC/ABS
Color: RAL 1016/9005 -sulphur yellow/jet black-
with 2 hanging eyes
with handle hook at the bottom
with a transparent cover that snaps into place at the top
Protection class II
Protection type: IP20
Size approx.: 450 x 183 x 253mm / HBT
Connection:
1 cable gland M32 at the top
1 connection up to 6qmm 5P
1 cable gland M32 at the top
with 4-way sealing insert
Outlets/fuse:
1 residual current device (RCD) 4P 40A/30mA -A-
1 CEE mounting box straight 16A 5P 400V 6h
with circuit breaker (MCB) 3P 16A -C-
6 earthed sockets 16A 3P 230V
to 2 circuit breakers (MCB) 1P 16A -B-
2 data double sockets RJ Cat.6
Color: white
1 compressed air connection
with internal thread at the top and bottom 1/2 inch
Compressed air class 5
Operating pressure < 16 bar
Hanging socket combination according to DIN EN 61439:
individually tested
, wired ready for connection
Rated current: 32A
Type: 6H40102LA
Questions & answers
What is the delivery time of Walther-Werke 6H40102LA Walther plastic hanging socket combination?
The article Walther-Werke 6H40102LA Walther plastic hanging socket combination is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Walther-Werke 6H40102LA to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Walther-Werke 6H40102LA Walther plastic hanging socket combination always at the best possible price. We can give you a discount of 2% on Walther-Werke 6H40102LA Walther plastic hanging socket combination if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
