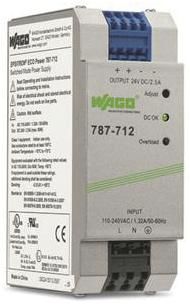

WAGO 787-712 ECO Power Supply 24V 2.5A , primary switched-mode LED
|
147,51 EUR |
|||||||||||
|
( 175,54 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 135310 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 787-712 | ||||||||||
| UPC/EAN: | 4045454908195 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for WAGO 787-712:
General technical data;
Nominal input voltage Vin rated 230 V
Input voltage range 85 V ... 264 V (with derating -3% / V (<90 V))
Frequency 47 Hz ... 63 Hz
Input current Ie 0.7 A typical at 230 V AC
Inrush current <30 Ap
Power failure bypass
20 ms at AC 230 V
Rated output voltage Vout DC 24 VOutput voltage range 22 V DC ... 28 V adjustable
Output current Io 2.5 A at 24 V DC
Ripple <100 mVpp to 20 MHz
Derating 3.3% / K (> 55 ° C at 230 V AC)
Deviation max. 1%
Current limitation in the range 1.15 .. 1.4 x Ia
Efficiency typ 82%
Test voltage primary. - PE 1.5 kV
Test voltage primary. - Sec 3 kV
Test voltage sec - PE 0.5 kV
Degree of protection IP 20
Status display Green LED (24 V DC OK) LED red (overload)
Mounting DIN-rail mounting (DIN EN 50022)
Ambient temperature -10 ° C ... +70 ° C
Storage temperature -25 ° C ... +85 ° C
Standards / EN 60950, EN 61000-6-2, EN 61000-6-3
Dimensions, Height [mm] 92 Width [mm] 50 mm Depth [mm] 136 mm
Type: 787-712 Quantity: 1 ea.
Questions & answers
What is the delivery time of WAGO 787-712 ECO Power Supply 24V 2.5A , primary switched-mode LED?
The article WAGO 787-712 ECO Power Supply 24V 2.5A , primary switched-mode LED is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of WAGO 787-712 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you WAGO 787-712 ECO Power Supply 24V 2.5A , primary switched-mode LED always at the best possible price. We can give you a discount of 2% on WAGO 787-712 ECO Power Supply 24V 2.5A , primary switched-mode LED if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of WAGO 787-712 ECO Power Supply 24V 2.5A , primary switched-mode LED we can offer you a price of 136,45 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of WAGO 787-712 ECO Power Supply 24V 2.5A , primary switched-mode LED via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
