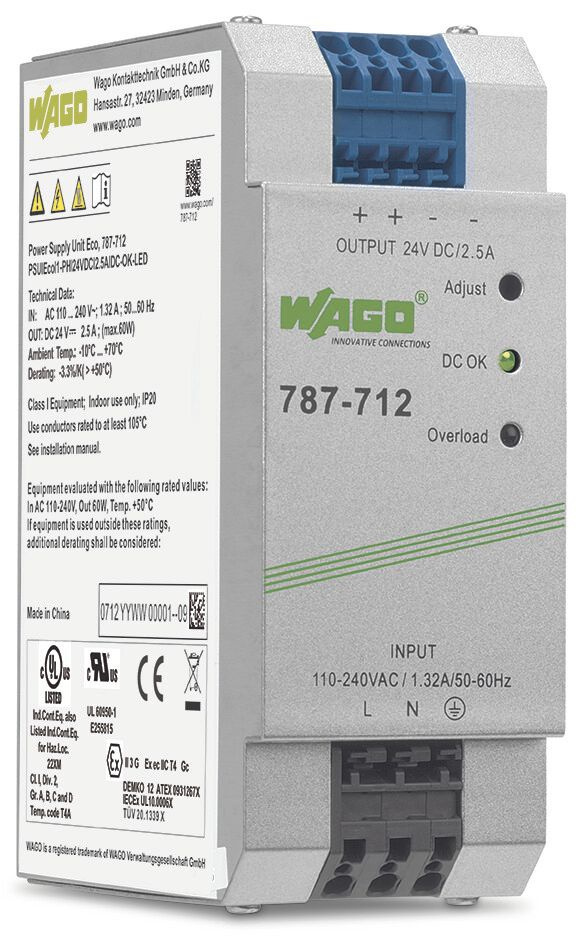

WAGO 787-712 primary switched power supply ECO Power output voltage 24 VDC 2.5 A
|
152,95 EUR |
|||||||||||
|
( 182,01 EUR incl. VAT ) ≈ £128.78 | ≈ $171.76 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 135310 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 787-712 | ||||||||||
| UPC/EAN: | 4045454908195 | ||||||||||
| Weight: | 0.596 kg | ||||||||||
| Type: | 787-712 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for WAGO 787-712:
General technical data;
Nominal input voltage Vin rated 230 V
Input voltage range 85 V ... 264 V (with derating -3% / V (<90 V))
Frequency 47 Hz ... 63 Hz
Input current Ie 0.7 A typical at 230 V AC
Inrush current <30 Ap
Power failure bypass
20 ms at AC 230 V
Rated output voltage Vout DC 24 VOutput voltage range 22 V DC ... 28 V adjustable
Output current Io 2.5 A at 24 V DC
Ripple <100 mVpp to 20 MHz
Derating 3.3% / K (> 55 ° C at 230 V AC)
Deviation max. 1%
Current limitation in the range 1.15 .. 1.4 x Ia
Efficiency typ 82%
Test voltage primary. - PE 1.5 kV
Test voltage primary. - Sec 3 kV
Test voltage sec - PE 0.5 kV
Degree of protection IP 20
Status display Green LED (24 V DC OK) LED red (overload)
Mounting DIN-rail mounting (DIN EN 50022)
Ambient temperature -10 ° C ... +70 ° C
Storage temperature -25 ° C ... +85 ° C
Standards / EN 60950, EN 61000-6-2, EN 61000-6-3
Dimensions, Height [mm] 92 Width [mm] 50 mm Depth [mm] 136 mm
Type: 787-712 Quantity: 1 ea.
Questions & answers
What is the delivery time of WAGO 787-712 primary switched power supply ECO Power output voltage 24 VDC 2.5 A?
The article WAGO 787-712 primary switched power supply ECO Power output voltage 24 VDC 2.5 A is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of WAGO 787-712 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you WAGO 787-712 primary switched power supply ECO Power output voltage 24 VDC 2.5 A always at the best possible price. We can give you a discount of 2% on WAGO 787-712 primary switched power supply ECO Power output voltage 24 VDC 2.5 A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of WAGO 787-712 primary switched power supply ECO Power output voltage 24 VDC 2.5 A we can offer you a price of 142,63 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
