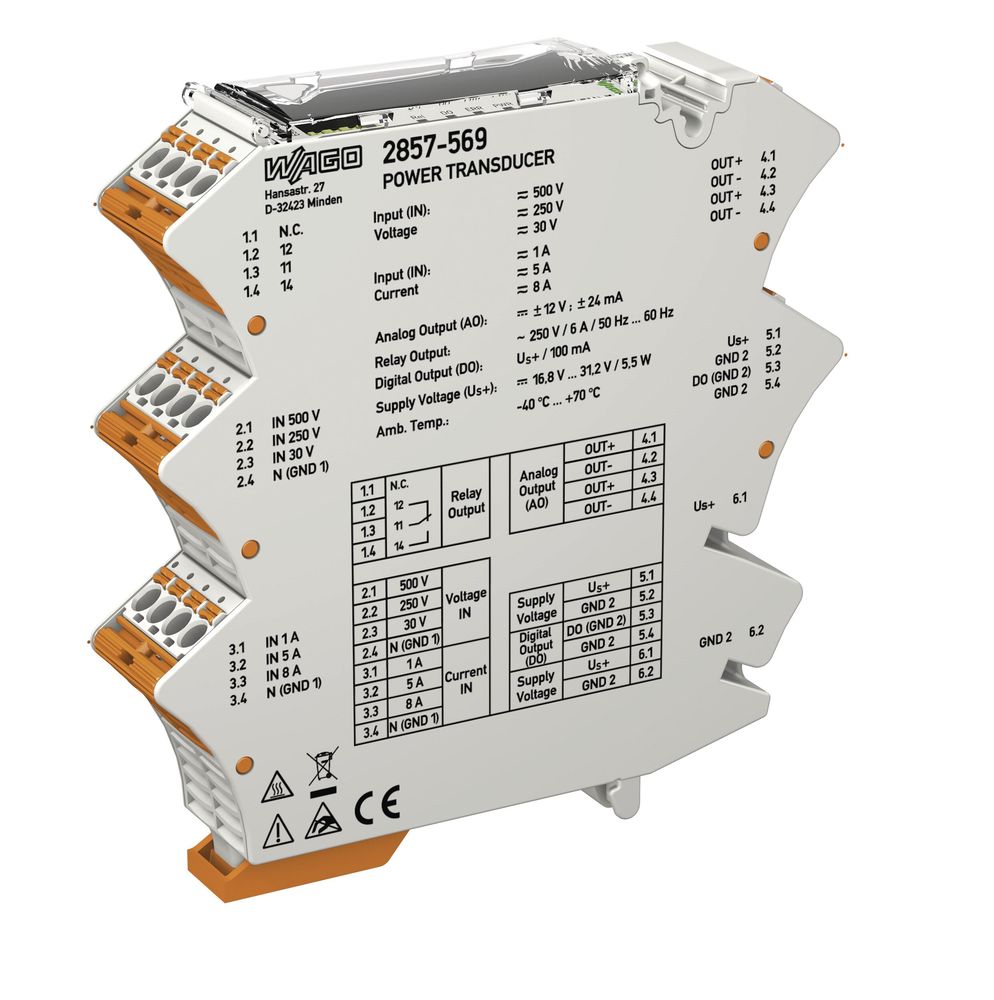

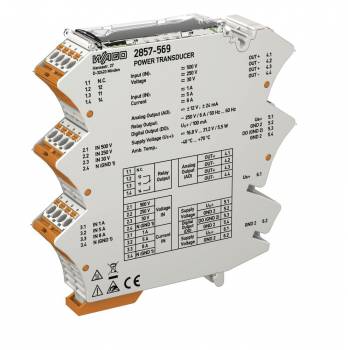

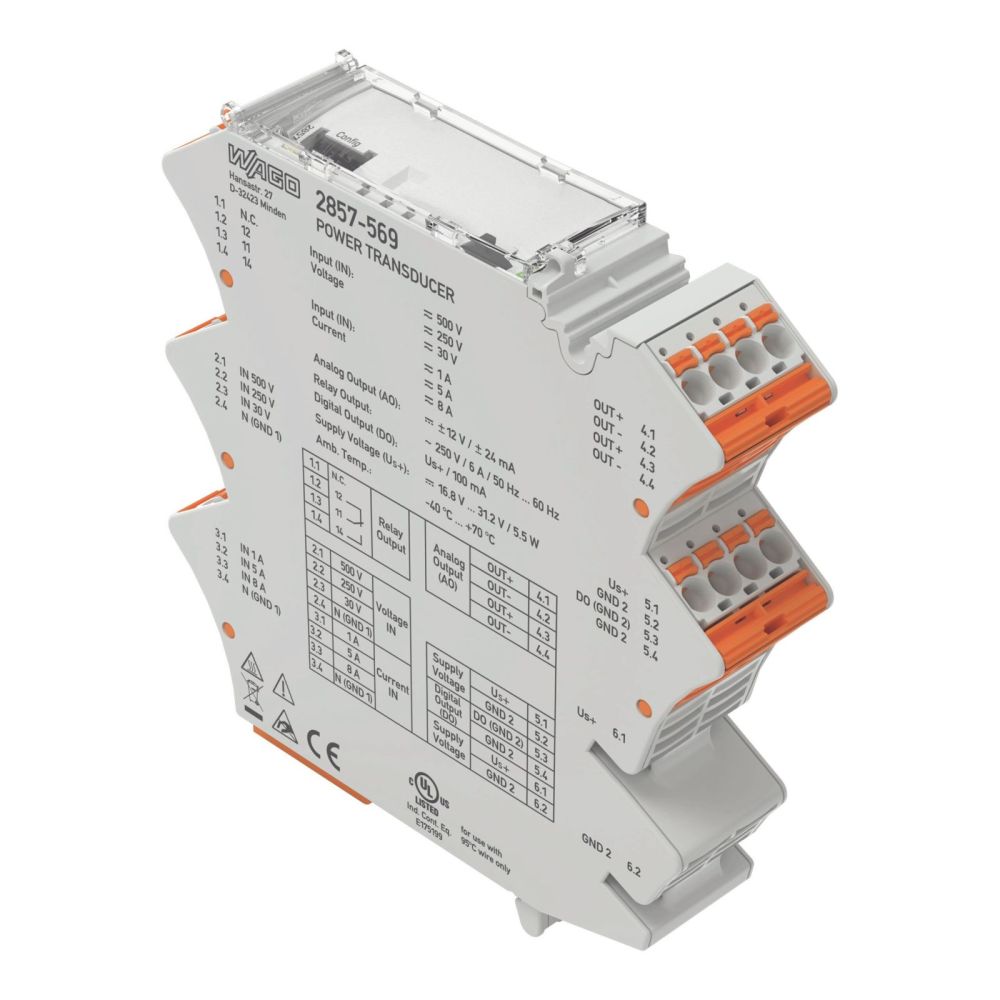

WAGO 2857-569 1PH-P-Transducer

Your rating:
Average rating
product review for WAGO 2857-569 1PH-P-Transducer
( 5 / 5 ) 1 ratings
WAGO 2857-569
This image may differ from the desired article.
WAGO 2857-569WAGO 2857-569
446,50 EUR 449,46 EUR
( 531,33 EUR incl. VAT )
≈ £373.72  |  ≈ $490.70
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x WAGO 2857-569 1PH-P-Transducer
Lieske Part No.:1953966
Mfg Part No: 2857-569
UPC/EAN: 4055143907323
Weight:0.123 kg
Type:2857-569
Graduated prices net
From piecesPrice per pieces
4436,45 EUR
8426,41 EUR
12416,36 EUR
16406,32 EUR

Product information for WAGO 2857-569:

The article 2857-569 from WAGO is a 1-phase power transducer used for measuring and converting electrical power in industrial applications. It processes both current and voltage input signals and provides corresponding current and voltage output signals. Additionally, the device features a digital output, which can be used for transmitting status information or alarms. Configuration is performed via software, allowing individual settings such as measurement ranges, scaling, or output parameters to be adjusted. The supply voltage is DC 24 V, making it suitable for standard applications in automation technology.

Applications

The power transducer 2857-569 is designed for use in industrial control and monitoring systems, particularly in installations where precise measurement of electrical power is required. This includes, for example, machine controls, energy consumption measurements in production facilities, or monitoring systems for electrical loads. The ability to process both current and voltage signals makes it flexible for use in various network configurations, especially in single-phase systems.

Functions and Equipment in Detail

The device features a current and voltage input that captures the electrical signals from the monitored network. These signals are processed internally to calculate the electrical power. The output is provided via current and voltage outputs, suitable for driving controllers, displays, or other control components. The integrated digital output enables the transmission of digital signals, for example, for alarms or status messages. Configuration is done via software, allowing the user to adjust measurement parameters individually. The supply voltage of DC 24 V is a standard value in automation technology and ensures reliable power supply.

Technology Explained Simply

A power transducer like the 2857-569 measures the electrical power flowing in a circuit by simultaneously capturing voltage and current. Internal circuits calculate the power, which is then transmitted via analog outputs (current and voltage signals) or a digital output. Software configuration allows adjustment of the measurement range, scaling, and other parameters to meet the requirements of the specific application. The supply voltage of DC 24 V is a common voltage in industrial electronics and is often provided via control systems or external power supplies.

Compatibility and Accessories

Various accessories are available for this device to facilitate installation and labeling. These include multilabeling systems from the WMB series in various versions, such as blank or printed labels with horizontal prints for number ranges 1–10, 11–20, 21–30, 31–40, 41–50, and 1–50. Additional accessories include labeling strips, bridging combs, potential taps in various cross-sections (2.5–6 mm² and 10–16 mm²) with or without fuses, as well as tools such as an actuation tool and screwless end terminals. Communication cables for USB connection (lengths 2.5 m and 5 m) are also available to enable software configuration.

Mounting and Installation

Mounting is done on standard DIN rails (TS 35), enabling easy integration into existing enclosures. Connections are made via terminals designed for wiring. Labeling of the terminals can be done using the available multilabeling systems to ensure clear identification of signals. Software configuration requires a computer with a USB port and the corresponding communication cable to perform the settings.

Advantages in Operation

The power transducer 2857-569 provides precise and reliable measurement of electrical power in single-phase systems. The combination of analog and digital outputs allows flexible integration into existing control and monitoring systems. Software configuration offers flexibility in adapting to specific requirements, while the supply voltage of DC 24 V represents a standard solution in automation technology. The use of accessories such as labeling systems and tools simplifies installation and maintenance.

General
Product type1-phase power transducer
Input signalscurrent and voltage signal
Output signalscurrent and voltage signal
Configurationvia software
Supply voltage24 V DC
Digital outputYes


Questions & answers

What is the delivery time of WAGO 2857-569 1PH-P-Transducer?

The article WAGO 2857-569 1PH-P-Transducer is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of WAGO 2857-569 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you WAGO 2857-569 1PH-P-Transducer always at the best possible price. We can give you a discount of 2% on WAGO 2857-569 1PH-P-Transducer if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of WAGO 2857-569 1PH-P-Transducer we can offer you a price of 436,45 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
