Vipa 603-1OP00 Operator Panel OP03,

Display: 2 x 20 characters
Interface: MP²I
User memory: 256 KB
Languages: DE, EN, FR, ES, IT, SV, NO, DA
Project engineering via VIPA OP-Manager or Siemens ProTool

Product Description:

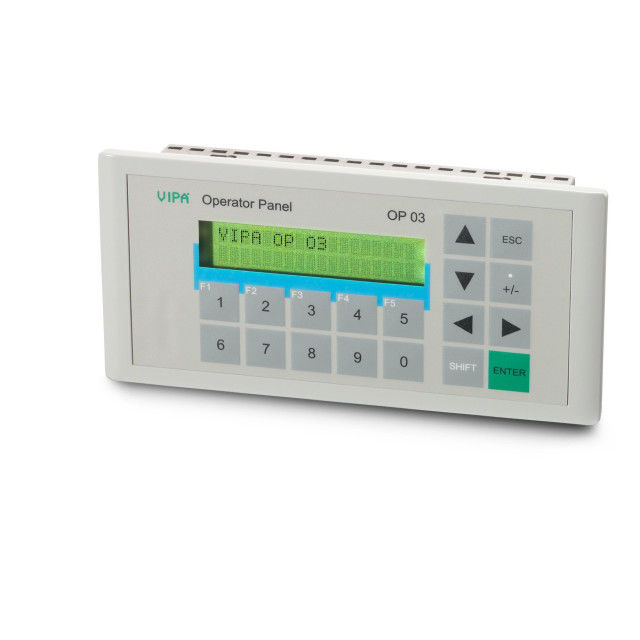

The Operator Panel OP 03 (603-1OP00) is a compact operator panel designed for industrial applications. It features an STN display with LED backlighting, displaying two lines of 20 characters each. With a character height of 5 mm, the display ensures clear readability. The panel supports multiple languages, including German, English, French, Spanish, Italian, Swedish, Norwegian, and Danish, and offers 256 KB of user memory for project storage. It can be configured using the VIPA OP-Manager or Siemens ProTool.

The panel uses a membrane keyboard with 8 system keys and 5 soft keys for user interaction. It supports the MP²I interface and is equipped with a 9-pin Sub-D connector. The power supply operates at a nominal 24 V DC, with a permissible range of 20.4 V to 28.8 V. For additional safety, the device includes reverse polarity protection.

The OP 03 features a rugged die-cast aluminum housing and offers IP65 protection on the front side, safeguarding it against dust and water splashes. Installation is made easy with the integrated pivoted lever. The panel is suited for demanding industrial environments with an operating temperature range of 0 °C to 60 °C.

Technical Data:

Order number:

• 603-1OP00

Type:

• Operator Panel OP 03

General Information:

• Display: 2 x 20 characters
• Interface: MP²I
• User memory: 256 KB
• Languages: DE, EN, FR, ES, IT, SV, NO, DA
• Project engineering: VIPA OP-Manager or Siemens ProTool

Display:

• Number of rows: 2
• Characters per row: 20
• Character height: 5 mm
• Display type: STN with LED backlighting

OP Functionality:

• User memory: 256 KB
• Number of variables: 4096
• Languages: DE, EN, FR, ES, IT, SV, NO, DA

Operating Controls:

• Touchscreen: No
• Keyboard: Membrane keyboard
• Mouse: No
• Number of system keys: 8
• Number of soft keys: 5

Power Supply:

• Rated voltage: 24 V DC
• Permitted voltage range: 20.4 V to 28.8 V DC
• Reverse polarity protection: Yes
• Current consumption (no-load operation): 80 mA
• Current consumption (rated value): 500 mA
• Inrush current: 55 A
• I²t: 0.34 A²s

Time:

• Real-time clock: Yes

Sub-D Interfaces:

• Type: MP²I
• Interface type: RS485
• Connector: Sub-D, 9-pin, female
• Electrically isolated: No
• MPI support: Yes
• MP²I (MPI/RS232): Yes

Mechanical Data:

• Housing material: Die-cast aluminum
• Mounting: Integrated pivoted lever
• Protection class front side: IP65
• Protection class rear side: IP65

Dimensions:

• Front panel: 187 mm x 90 mm x 6 mm
• Rear panel: 154 mm x 77 mm x 55 mm
• Installation cut-out (width x height): 156 mm x 78 mm
• Maximum front panel thickness: 6 mm

Weight:

• Net weight: 600 g

Environmental Conditions:

• Operating temperature: 0 °C to 60 °C
• Storage temperature: -20 °C to 70 °C

Certifications:

• UL certification: Yes
• KC certification: No
