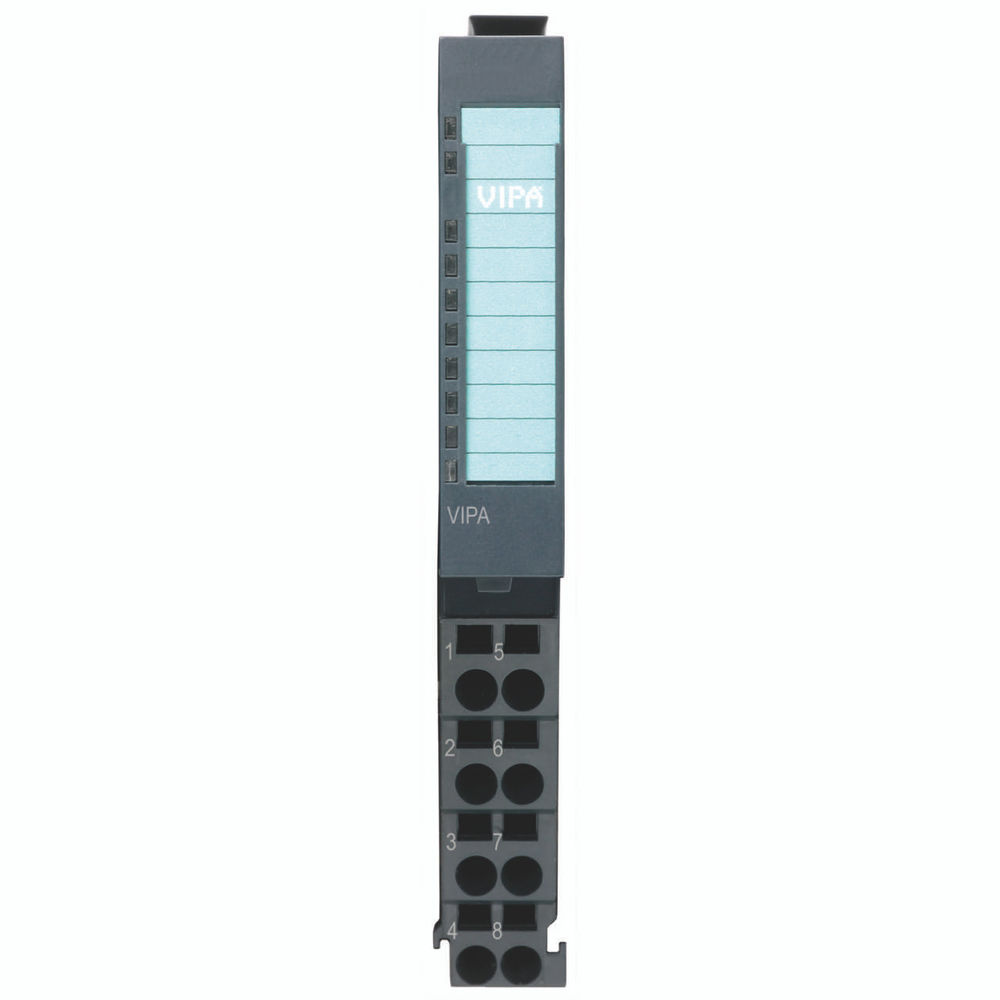

Vipa 031-1LD80 SM 031 Analog input 4 inputs 16bit resistance 0...3000 ohms
|
253,63 EUR |
|||||||||||
|
( 301,82 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1336772 | ||||||||||
| Mfg Part No: | 031-1LD80 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VIPA 031-1LD80:
4x AI
16 Bit
Resistance 0.3000 Ohm
Resistance measurement 2-, 3-, and 4-wires
Resistance temperature transmitter Pt100, Pt1000, NI100 and NI1000
Reduced parameter bytes
SM 031 - Analog Input (031-1LD80)
Technical Data:
Order No.:
- 031-1LD80
Type:
- SM 031 - Analog Input
Module ID:
- 0410 1544
General Information:
- Note: -
- Features: 4x AI, 16 Bit, Resistance 0…3000 Ohm, Resistance measurement 2-, 3-, and 4-wire, Resistance temperature transmitter Pt100, Pt1000, Ni100, Ni1000, Reduced parameter bytes
Current Consumption/Power Loss:
- Current consumption from backplane bus: 55 mA
- Power loss: 1 W
Technical Data Analog Inputs:
- Number of inputs: 4
- Cable length, shielded: 200 m
- Rated load voltage: DC 24 V
- Current consumption from load voltage L+ (without load): 30 mA
- Voltage inputs: -
- Min. input resistance (voltage range): -
- Input voltage ranges: -
- Operational limit of voltage ranges: -
- Operational limit of voltage ranges with SFU: -
- Basic error limit voltage ranges: -
- Basic error limit voltage ranges with SFU: -
- Destruction limit voltage: -
- Current inputs: -
- Max. input resistance (current range): -
- Input current ranges: -
- Operational limit of current ranges: -
- Operational limit of current ranges with SFU: -
- Basic error limit current ranges: -
- Radical error limit current ranges with SFU: -
- Destruction limit current inputs (voltage): -
- Destruction limit current inputs (electrical current): -
- Resistance inputs: yes
- Resistance ranges: 0 ... 60 Ohm, 0 ... 600 Ohm, 0 ... 3000 Ohm
- Operational limit of resistor ranges: +/- 0.4 %
- Operational limit of resistor ranges with SFU: +/- 0.2 %
- Basic error limit: +/- 0.2 %
- Basic error limit with SFU: +/- 0.1 %
- Destruction limit resistance inputs: max. 24 V
- Resistance thermometer inputs: yes
- Resistance thermometer ranges: Pt100, Pt1000, Ni100, Ni120, Ni1000
- Operational limit of resistance thermometer ranges: +/- 0.4 %
- Operational limit of resistance thermometer ranges with SFU: +/- 0.2 %
- Basic error limit resistance thermometer ranges: +/- 0.2 %
- Basic error limit resistance thermometer ranges with SFU: +/- 0.1 %
- Destruction limit resistance thermometer inputs: max. 24 V
- Thermocouple inputs: -
- Thermocouple ranges: - -
Type: 031-1LD80
