Vipa 031-1BD40 SM 031 Analog input 4 inputs 12Bit current 0(4)-20mA
|
181,32 EUR |
|||||||||||
|
( 215,77 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1336773 | ||||||||||
| Mfg Part No: | 031-1BD40 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||

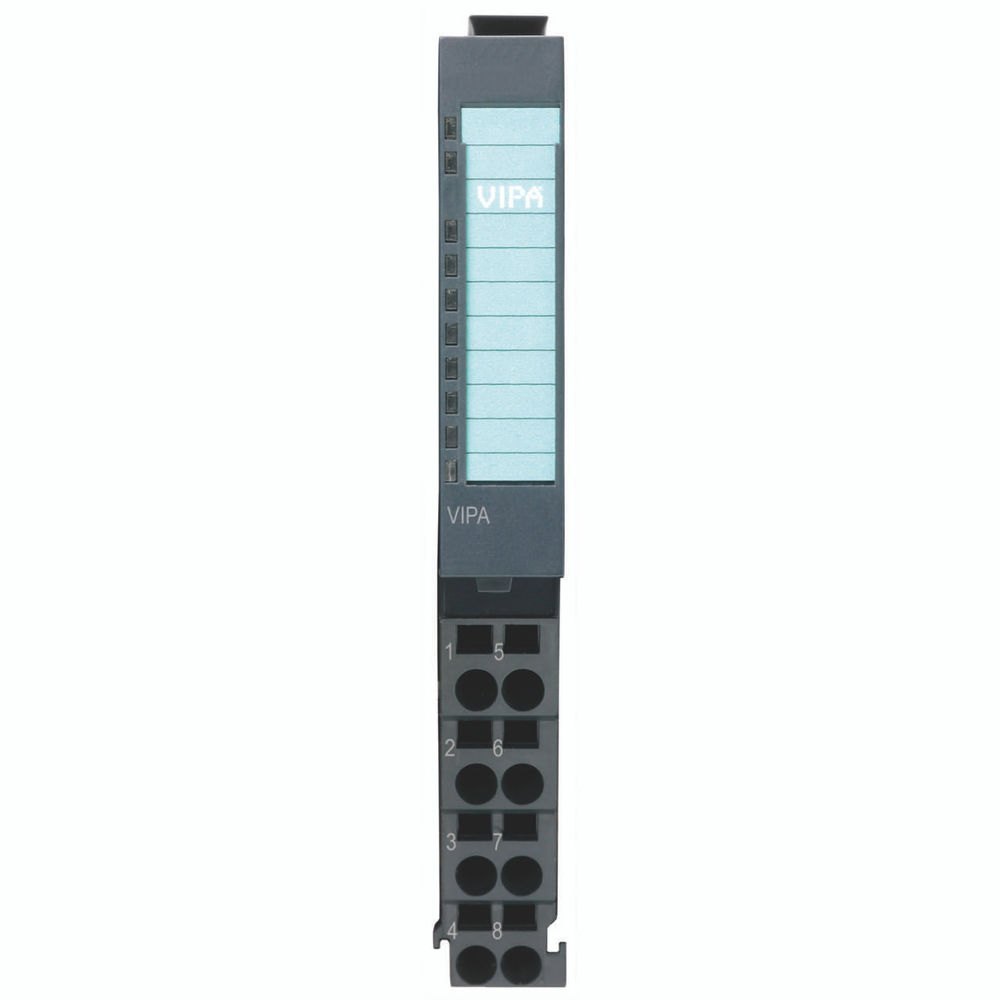

Product information for VIPA 031-1BD40:
4x AI
12 Bit
Current 0(4).20 mA
Technical Data:
Order No.:
- 031-1BD40
Type:
- SM 031 - Analog Input
Module ID:
- 0405 15C4
General Information:
- Note: -
- Features: 4x AI, 12 Bit, Current 0(4)...20 mA
Current Consumption/Power Loss:
- Current consumption from backplane bus: 75 mA
- Power loss: 0.7 W
Technical Data Analog Inputs:
- Number of inputs: 4
- Cable length, shielded: 200 m
- Rated load voltage: DC 24 V
- Current consumption from load voltage L+ (without load): 15 mA
- Voltage inputs: -
- Min. input resistance (voltage range): -
- Input voltage ranges: -
- Operational limit of voltage ranges: -
- Operational limit of voltage ranges with SFU: -
- Basic error limit voltage ranges: -
- Basic error limit voltage ranges with SFU: -
- Destruction limit voltage: -
- Current inputs: yes
- Max. input resistance (current range): 110 Ohm
- Input current ranges: 0 mA ... +20 mA, +4 mA ... +20 mA
- Operational limit of current ranges: +/-0.3% ... +/-0.5%
- Operational limit of current ranges with SFU: -
- Basic error limit current ranges: +/-0.2% ... +/-0.3%
- Radical error limit current ranges with SFU: -
- Destruction limit current inputs (voltage): max. 24V
- Destruction limit current inputs (electrical current): max. 40mA
- Resistance inputs: -
- Resistance ranges: -
- Operational limit of resistor ranges: -
- Operational limit of resistor ranges with SFU: -
- Basic error limit: -
- Basic error limit with SFU: -
- Destruction limit resistance inputs: -
- Resistance thermometer inputs: -
- Resistance thermometer ranges: -
- Operational limit of resistance thermometer ranges: -
Datasizes:
- Input bytes: 8
- Output bytes: 0
- Parameter bytes: 8
- Diagnostic bytes: 20
Housing:
- Material: PPE / PPE GF10
- Mounting: Profile rail 35 mm
Mechanical Data:
- Dimensions (WxHxD): 12.9 mm x 109 mm x 76.5 mm
- Net weight: 59 g
- Weight including accessories: 59 g
- Gross weight: 74 g
Environmental Conditions:
- Operating temperature: 0 °C to 60 °C
- Storage temperature: -25 °C to 70 °C
Certifications:
- UL certification: yes
- KC certification: yes
Type: 031-1BD40
