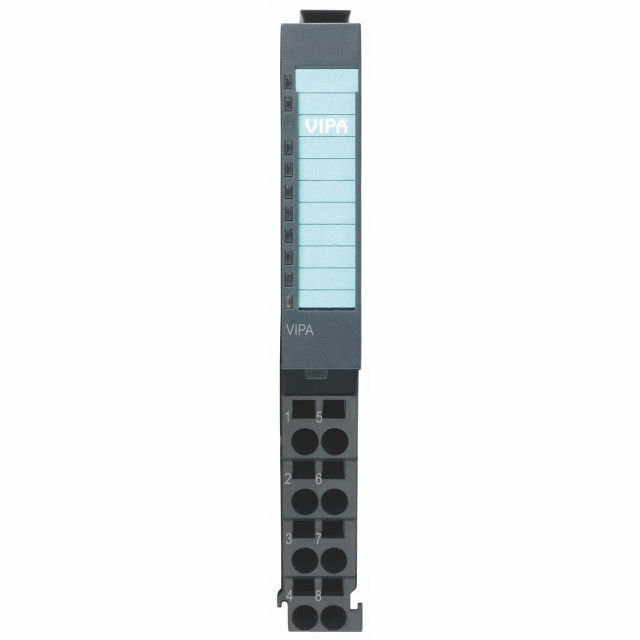

Vipa 031-1BD30 SM 031 Analogue input 0404 15C4 4 inputs 12bit voltage. 0-10V
|
181,32 EUR |
|||||||||||
|
( 215,77 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1336774 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 031-1BD30 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VIPA 031-1BD30:
4x AI
12 Bit
Voltage 0.10 V
Technical Data:
Order No.:
- 031-1BD30
Type:
- SM 031 - Analog Input
Module ID:
- 0404 15C4
General Information:
- Note: -
- Features: 4x AI, 12 Bit, Voltage 0…10 V
Current Consumption/Power Loss:
- Current consumption from backplane bus: 75 mA
- Power loss: 0.7 W
Technical Data Analog Inputs:
- Number of inputs: 4
- Cable length, shielded: 200 m
- Rated load voltage: DC 24 V
- Current consumption from load voltage L+ (without load): 15 mA
- Voltage inputs: yes
- Min. input resistance (voltage range): 100 kOhm
- Input voltage ranges: 0 V ... +10 V
- Operational limit of voltage ranges: +/-0.3%
- Operational limit of voltage ranges with SFU: -
- Basic error limit voltage ranges: +/-0.2%
- Basic error limit voltage ranges with SFU: -
- Destruction limit voltage: max. 30V
- Current inputs: -
- Max. input resistance (current range): -
- Input current ranges: -
- Operational limit of current ranges: -
- Operational limit of current ranges with SFU: -
- Basic error limit current ranges: -
- Radical error limit current ranges with SFU: -
- Destruction limit current inputs (voltage): -
- Destruction limit current inputs (electrical current): -
- Resistance inputs: -
- Resistance ranges: -
- Operational limit of resistor ranges: -
- Operational limit of resistor ranges with SFU: -
- Basic error limit: -
- Basic error limit with SFU: -
- Destruction limit resistance inputs: -
- Resistance thermometer inputs: -
- Resistance thermometer ranges: -
- Operational limit of resistance thermometer ranges: -
Datasizes:
- Input bytes: 8
- Output bytes: 0
- Parameter bytes: 8
- Diagnostic bytes: 20
Housing:
- Material: PPE / PPE GF10
- Mounting: Profile rail 35 mm
Mechanical Data:
- Dimensions (WxHxD): 12.9 mm x 109 mm x 76.5 mm
- Net weight: 59 g
- Weight including accessories: 59 g
- Gross weight: 74 g
Environmental Conditions:
- Operating temperature: 0 °C to 60 °C
- Storage temperature: -25 °C to 70 °C
Certifications:
- UL certification: yes
- KC certification: yes
Type: 031-1BD30
Questions & answers
What is the delivery time of Vipa 031-1BD30 SM 031 Analogue input 0404 15C4 4 inputs 12bit voltage. 0-10V?
The article Vipa 031-1BD30 SM 031 Analogue input 0404 15C4 4 inputs 12bit voltage. 0-10V is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VIPA 031-1BD30 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Vipa 031-1BD30 SM 031 Analogue input 0404 15C4 4 inputs 12bit voltage. 0-10V always at the best possible price. We can give you a discount of 2% on Vipa 031-1BD30 SM 031 Analogue input 0404 15C4 4 inputs 12bit voltage. 0-10V if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Vipa 031-1BD30 SM 031 Analogue input 0404 15C4 4 inputs 12bit voltage. 0-10V we can offer you a price of 178,60 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
