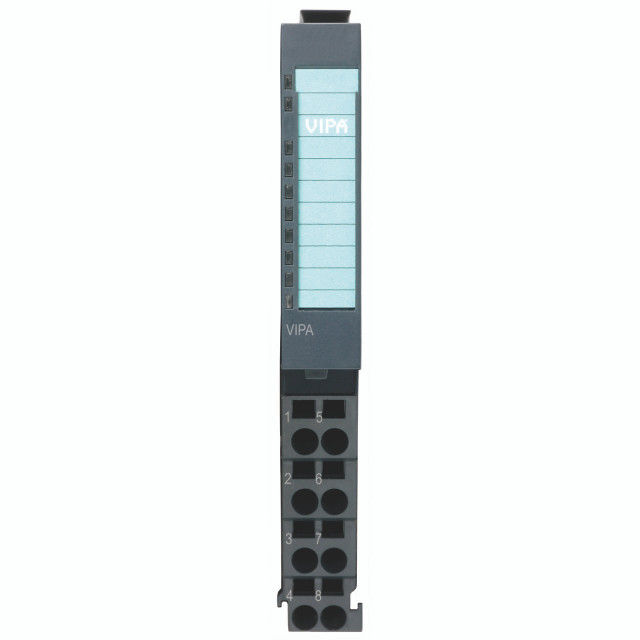

Vipa 031-1BB90 SM 031 Analogue input 0403 1543 2 inputs 16bit thermal span. -80m
|
218,03 EUR |
|||||||||||
|
( 259,46 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1336775 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 031-1BB90 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VIPA 031-1BB90:
2x AI
16 Bit
Voltage -80 mV.+80 mV
TC type J, K, N, R, S, T, B, C, E, L
STechnical Data:
Order No.:
- 031-1BB90
Type:
- SM 031 - Analog Input
Module ID:
- 0403 1543
General Information:
- Note: -
- Features: 2x AI, 16 Bit, Voltage -80 mV…+80 mV, TC type J, K, N, R, S, T, B, C, E, L
Current Consumption/Power Loss:
- Current consumption from backplane bus: 85 mA
- Power loss: 1.1 W
Technical Data Analog Inputs:
- Number of inputs: 2
- Cable length, shielded: 200 m
- Rated load voltage: DC 24 V
- Current consumption from load voltage L+ (without load): 30 mA
- Voltage inputs: -
- Min. input resistance (voltage range): 10 MOhm
- Input voltage ranges: -80 mV ... +80 mV
- Operational limit of voltage ranges: ±0.3%
- Operational limit of voltage ranges with SFU: ±0.1%
- Basic error limit voltage ranges: ±0.25%
- Basic error limit voltage ranges with SFU: ±0.05%
- Destruction limit voltage: max. 20 V
- Current inputs: -
- Max. input resistance (current range): -
- Input current ranges: -
- Operational limit of current ranges: -
- Operational limit of current ranges with SFU: -
- Basic error limit current ranges: -
- Radical error limit current ranges with SFU: -
- Destruction limit current inputs (voltage): -
- Destruction limit current inputs (electrical current): -
- Resistance inputs: -
- Resistance ranges: -
- Operational limit of resistor ranges: -
- Operational limit of resistor ranges with SFU: -
- Basic error limit: -
- Basic error limit with SFU: -
- Destruction limit resistance inputs: -
- Resistance thermometer inputs: -
- Resistance thermometer ranges: -
- Operational limit of resistance thermometer ranges: -
Thermocouple Inputs:
- Thermocouple ranges: Type B, E, J, K, L, N, R, S, T, C
Type: 031-1BB90
