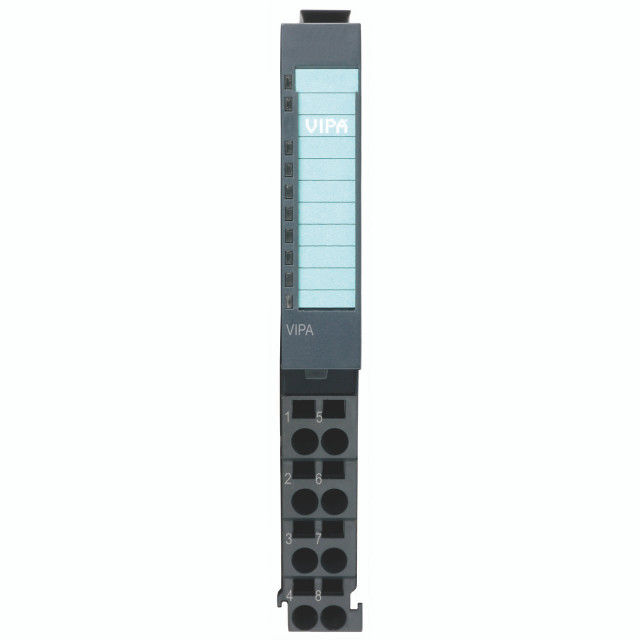

Vipa 031-1BB30 SM 031 Analog input 0401 15C3 2 inputs 12Bit voltage 0..10V
|
166,86 EUR |
|||||||||||
|
( 198,56 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1336784 | ||||||||||
| Mfg Part No: | 031-1BB30 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VIPA 031-1BB30:
2x AI
12 Bit
Voltage 0.10 V
Technical Data:
Order No.:
- 031-1BB30
Type:
- SM 031 - Analog Input
Module ID:
- 0401 15C3
General Information:
- Note: -
- Features: 2x AI, 12 Bit, Voltage 0…10 V
Current Consumption/Power Loss:
- Current consumption from backplane bus: 80 mA
- Power loss: 0.7 W
Technical Data Analog Inputs:
- Number of inputs: 2
- Cable length, shielded: 200 m
- Rated load voltage: DC 24 V
- Current consumption from load voltage L+ (without load): 15 mA
- Voltage inputs: yes
- Min. input resistance (voltage range): 100 kOhm
- Input voltage ranges: 0 V ... +10 V
- Operational limit of voltage ranges: +/-0.3%
- Operational limit of voltage ranges with SFU: -
- Basic error limit voltage ranges: +/-0.2%
- Basic error limit voltage ranges with SFU: -
- Destruction limit voltage max.: 30 V
- Current inputs: -
- Max. input resistance (current range): -
- Input current ranges: -
- Operational limit of current ranges: -
- Operational limit of current ranges with SFU: -
- Basic error limit current ranges: -
- Radical error limit current ranges with SFU: -
- Destruction limit current inputs (voltage): -
- Destruction limit current inputs (electrical current): -
- Resistance inputs: -
- Resistance ranges: -
- Operational limit of resistor ranges: -
- Operational limit of resistor ranges with SFU: -
- Basic error limit: -
- Basic error limit with SFU: -
- Destruction limit resistance inputs: -
- Resistance thermometer inputs: -
- Resistance thermometer ranges: -
- Operational limit of resistance thermometer ranges: -
- Operational limit of resistance thermometer ranges with SFU: -
- Basic error limit thermoresistor ranges: -
- Basic error limit thermoresistor ranges with SFU: -
- Destruction limit resistance thermometer inputs: -
- Thermocouple inputs: -
- Thermocouple ranges: -
- Operational limit of thermocouple ranges: -
- Operational limit of thermocouple ranges with SFU: -
- Basic error limit thermocouple ranges: -
- Basic error limit thermocouple ranges with SFU: -
- Destruction limit thermocouple inputs: -
- Programmable temperature compensation: -
- External temperature compensation: -
- Internal temperature compensation: -
- Temperature error internal compensation: -
- Technical unit of temperature measurement: -
- Resolution in bit: 12
- Measurement principle: successive approximation
- Basic conversion time: 2 ms all channels
- Noise suppression for frequency: >50dB at 50Hz (UCM < 2V)
Status Information, Alarms, Diagnostics:
- Status display: yes
- Interrupts: no
- Process alarm: no
- Diagnostic interrupt: no
- Diagnostic functions: yes
- Diagnostics information read-out: possible
- Module state: green LED
- Module error display: red LED
- Channel error display: red LED per channel
Isolation:
- Between channels: -
- Between channels of groups to: -
Type: 031-1BB30
Questions & answers
What is the delivery time of Vipa 031-1BB30 SM 031 Analog input 0401 15C3 2 inputs 12Bit voltage 0..10V?
The article Vipa 031-1BB30 SM 031 Analog input 0401 15C3 2 inputs 12Bit voltage 0..10V is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VIPA 031-1BB30 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Vipa 031-1BB30 SM 031 Analog input 0401 15C3 2 inputs 12Bit voltage 0..10V always at the best possible price. We can give you a discount of 2% on Vipa 031-1BB30 SM 031 Analog input 0401 15C3 2 inputs 12Bit voltage 0..10V if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Vipa 031-1BB30 SM 031 Analog input 0401 15C3 2 inputs 12Bit voltage 0..10V we can offer you a price of 164,36 EUR per piece. The more you buy, the cheaper the article will be.
