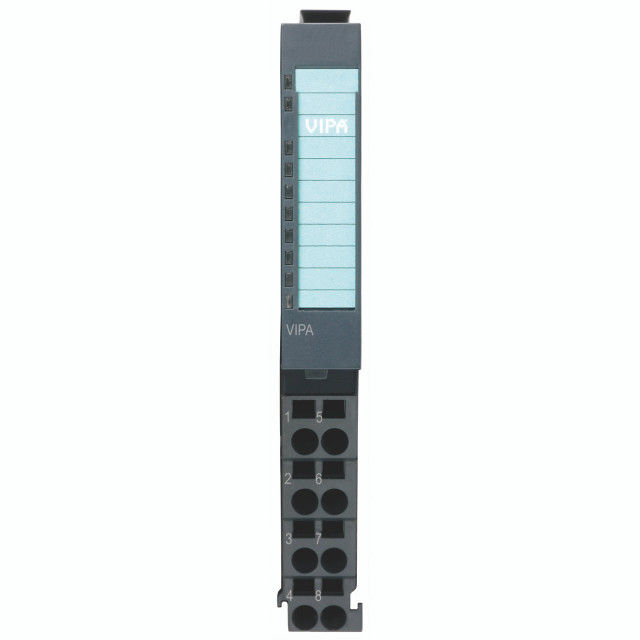

Vipa 022-1BD00 SM 022 Digital output 0104 AFA0 4 outputs 0.5A

SM 022 - Digitaler Ausgang (022-1BD00)

Technical Data:

Order No.:

• 022-1BD00

Type:

• SM 022 - Digital Output

Module ID:

• 0104 AFA0

General Information:

• Note: -
• Features: 4x DO, DC 24 V, 0.5 A

Current Consumption/Power Loss:

• Current consumption from backplane bus: 75 mA
• Power loss: 0.5 W

Technical Data Digital Outputs:

• Number of outputs: 4
• Cable length, shielded: 1000 m
• Cable length, unshielded: 600 m
• Rated load voltage: DC 20.4...28.8 V
• Current consumption from load voltage L+ (without load): 10 mA
• Total current per group, horizontal configuration, 40°C: 2 A
• Total current per group, horizontal configuration, 60°C: 2 A
• Total current per group, vertical configuration: 2 A
• Output current at signal 1, rated value: 0.5 A
• Signal logic output: Sourcing output
• Output delay of 0 to 1: 30 µs
• Output delay of 1 to 0: 175 µs
• Minimum load current: -
• Lamp load: 10 W
• Parallel switching of outputs for redundant control of a load: not possible
• Parallel switching of outputs for increased power: not possible
• Actuation of digital input: yes
• Switching frequency with resistive load: max. 1000 Hz
• Switching frequency with inductive load: max. 0.5 Hz
• Switching frequency on lamp load: max. 10 Hz
• Internal limitation of inductive shut-off voltage: L+ (-45 V)
• Short-circuit protection of output: yes, electronic
• Trigger level: 1 A
• Number of operating cycles of relay outputs: -
• Switching capacity of contacts: -
• Output data size: 4 Bit

Status Information, Alarms, Diagnostics:

• Status display: green LED per channel
• Interrupts: no
• Process alarm: no
• Diagnostic interrupt: no
• Diagnostic functions: no
• Diagnostics information read-out: none
• Supply voltage display: green LED
• Group error display: red LED
• Channel error display: none

Isolation:

• Between channels: -
• Between channels of groups to: -
• Between channels and backplane bus: yes
• Insulation tested with: DC 500 V

PWM Data:

• PWM channels: -
• PWM time basis: -
• Period length: -
• Minimum pulse width: -
• Type of output: -

Safety:

• Safety protocol: -
• Safety requirements: -
• Secure user address: -
• Watchdog: -
• Two channels: -
• Test pulse length: -
• Circuit monitoring: -

Datasizes:

• Input bytes: 0
• Output bytes: 1
• Parameter bytes: 0
• Diagnostic bytes: 0

Housing:

• Material: PPE / PPE GF10
• Mounting: Profile rail 35 mm

Mechanical Data:

• Dimensions (WxHxD): 12.9 mm x 109 mm x 76.5 mm
• Net weight: 57 g
• Weight including accessories: 57 g
• Gross weight: 71 g

Environmental Conditions:

• Operating temperature: 0 °C to 60 °C
• Storage temperature: -25 °C to 70 °C

Certifications:

• UL certification: yes
• KC certification: yes

Type: 022-1BD00
