Vertiv ACS8048DAC-404 48-PORT ACS8000 Console System content_copy

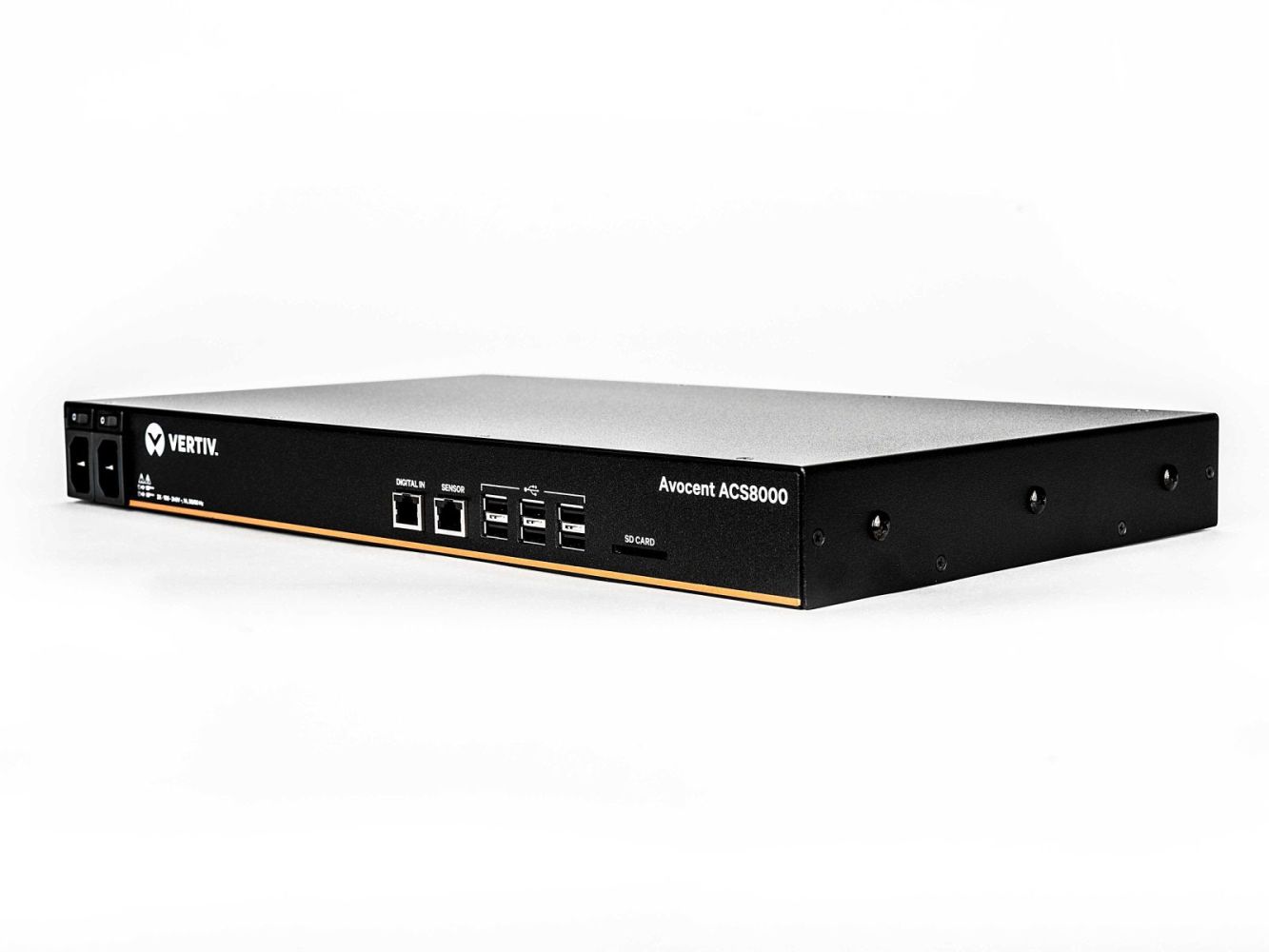

The Vertiv Avocent ACS8048DAC-404 is a KVM accessory in 8-slot rack format, specifically designed for central management of servers and network units via serial consoles. As a console server, it enables secure, out-of-band access to IT systems, independent of network status, and is designed for use in data centers, telecommunications centers, and remote locations. The device features 48 serial RS-232 connections, connected via RJ-45 connectors, and supports pinout configurations for Cyclades™ and Cisco devices, eliminating the need for adapters. The integrated management platform offers features such as Zero Touch Provisioning (ZTP) for automated configurations, as well as web-based management via HTTP/HTTPS and SNMP. Management is performed through an embedded Linux operating system running on a dual-core ARM Cortex-A9 processor with a clock speed of 667 MHz. The hardware is equipped with 1024 MB DDR3L RAM and 16 GB eMMC storage, ensuring stable and high-performance processing of management tasks.

Applications include secure remote management of servers, network units, and test environments, particularly in environments where direct physical access is not available. The server is suitable for use in data centers where high availability and security are required. Integrated support for rack PDUs from Vertiv™, ServerTech, APC, Raritan, and Eaton, as well as for Vertiv GXT4 UPS systems, extends functionality in the area of energy management. The network and security functions include support for IPv4 and IPv6, authentication via LDAP, RADIUS, TACACS+, and One-Time Passwords (OTP), as well as IP address filtering. Security algorithms include 3DES, AES in various key lengths (128-bit, 192-bit, 256-bit), SHA-256, IPSec, and HTTPS, with FIPS 140-2 certification confirming compliance with strict security standards. Event logging, including last gasp events prior to system failure, supports fault analysis and compliance requirements.

Technology explained simply is demonstrated by the combination of two Gigabit Ethernet ports (10/100/1000BASE-T) and two SFP slots for Gigabit fiber connections, enabling redundant network connectivity. The two AC power supplies, with an input voltage of 108–240 V and frequency of 50–60 Hz, ensure stable power supply, with operation using two redundant power supply units ensuring high availability. Power consumption is 20 W in standard operation and up to 35 W maximum. Operating temperature ranges from -10 °C to 60 °C, with relative humidity during operation between 20 % and 80 % (non-condensing). Dimensions are 438.2 x 241.3 x 44.5 mm, and weight is 3.4 kg. The device is black and designed for rack mounting.

Compatibility and accessories include integration with rack PDUs from various manufacturers as well as with Vertiv GXT4 UPS systems. Support for SFP fiber modules enables the use of fiber optic cables for network connections. The 8 USB 2.0 ports allow connection of external devices, and the integrated port for environmental sensors (RJ45, 1-Wire) enables monitoring of temperature, humidity, or other environmental parameters. The DSView™ management software supports centralized management and monitoring of the console.

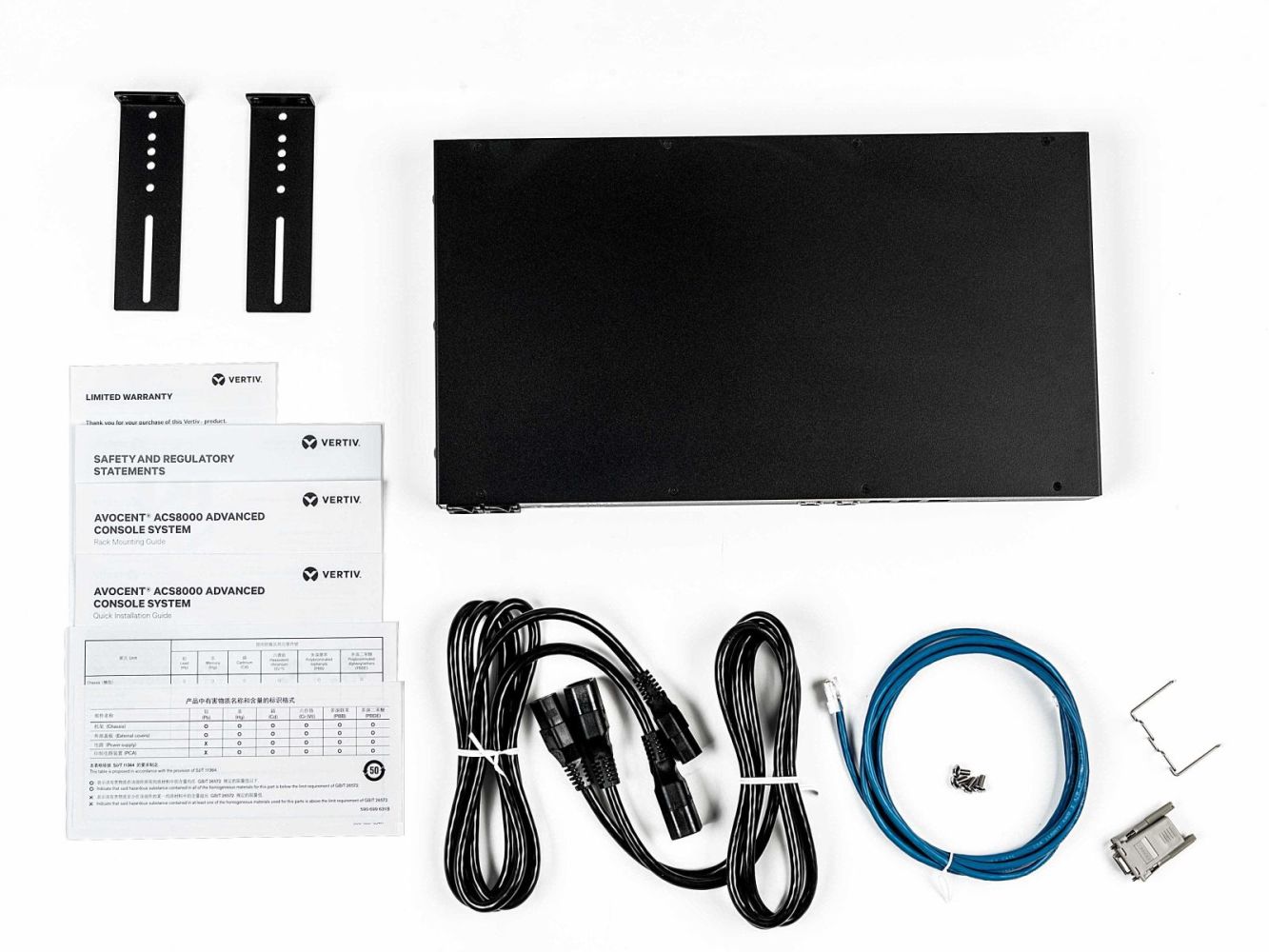

Mounting and installation is performed in a standard 19-inch rack, with the device occupying 8 U (height units). Power supply is via C13 connectors, connected to an appropriate power distribution unit. Serial ports are connected to devices via RJ-45 connectors, with the first two ports switchable between RS-232, RS-422, and RS-485. Network connection is made via Cat5 to Cat7 cables or via SFP modules for fiber optic connections. Configuration is performed via the web-based interface or CLI, with Zero Touch Provisioning accelerating setup.

Operational advantages include high availability through redundant power supplies and network connections, secure authentication and encryption, as well as centralized monitoring and logging. Integration of sensors and PDUs extends functionality for comprehensive data center management. Support for IPv6 and compatibility with modern network standards ensure future-proofing of the system. Automatic pinout configuration for various devices reduces configuration effort and error susceptibility. The integrated temperature sensor function enables monitoring of ambient temperature, which is helpful for predicting overheating risks. The devices are designed for use in critical infrastructures where high reliability and security are required.

Certificates
Certification	FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
Features
Product colour	Black
Rack mounting
Internal modem
Zero Touch Provisioning (ZTP)
Web-based management
Temperature sensor
Management features
Management protocols	CLI, HTTP/ HTTPS, SNMP
Memory
Flash memory	16000 MB
RAM capacity	1024 MB
RAM type	DDR3L
eMMC capacity	16 GB
Network
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported	Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Ports & interfaces
Console port	RJ-45
Serial ports quantity	48
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	2
SFP module slots quantity	2
AC outlet types	C13 coupler
Power
Power source type	AC
AC input voltage	108 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Power consumption (max)	35 W
Input current	0.1 A
Number of power supply units	2
Processor
Processor family	ARM Cortex-A9
Processor architecture	ARM Cortex-A9
Processor cores	2
Processor frequency	667 MHz
Security
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2
Authentication method	LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)
IP address filtering
One-time password (OTP)
Software
Operating system installed	Embedded LINUX
Technical details
Safety	UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
Weight & dimensions
Dimensions (WxDxH)	438.2 x 241.3 x 44.5 mm
Weight	3.4 kg

---
