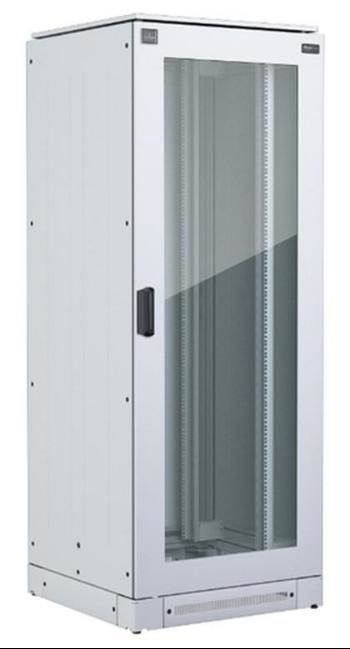

Vertiv (Knürr) cabinet, Miracel 2, 42U, B800/T1000
|
2.768,81 EUR |
|
|
( 3.294,88 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 942423 |
|---|---|
| Mfg Part No: | 011570051026 |
| Weight: | 120 kg |
Further Racksystems 31+HE from VertivFurther products in category Racksystems 31+HE
All products of Vertiv
Product information for Vertiv 011570051026:
Knürr cabinet, Miracel 2, 42U, B800/T1000,
* Order-related, cannot be canceled *
With fixed 48,3 cm ( 19 inch ) installation at the front and rear for installations in accordance with IEC 297-3.
– Installation of slide-in rails, drawers, pull-out shelves and cable management
– Cable entry via base and cover.
– Cable entry on the cover, at the back; Cover assembly or disassembly possible after wiring.
– Dissipation of heat loss via raised roof
– Door – opening angle 160° with internal hinges
for maneuvering space
– Front 123 mm.
Load capacity
– 8000 N static.
Protection class
* Order-related, cannot be canceled *
With fixed 48,3 cm ( 19 inch ) installation at the front and rear for installations in accordance with IEC 297-3.
– Installation of slide-in rails, drawers, pull-out shelves and cable management
– Cable entry via base and cover.
– Cable entry on the cover, at the back; Cover assembly or disassembly possible after wiring.
– Dissipation of heat loss via raised roof
– Door – opening angle 160° with internal hinges
for maneuvering space
– Front 123 mm.
Load capacity
– 8000 N static.
Protection class
- IP 20. Tests
- Earthing according to VDE 0100 T 540.
- IP test according to EN 60529. Material / surface
- Base frame extruded aluminum. – Corner connector made of die-cast aluminum, blank.
- 2 x side panels with quick-release fasteners.
- 1 x raised lid with cable entry (three-part sliding plates, can also be opened completely) at the rear.
- 1 x front door, single-leaf, toughened safety glass, with handle and holder for locking cylinder.
- 1 x Rear door, single-leaf, sheet steel, with handle and holder for locking cylinder. - 1 x base with ventilation slots at the front and back, filter mat can be retrofitted - 1 x earthing
– Cladding parts made of galvanized sheet steel, powder-coated structure
– Doors made of sheet steel, powder-coated structure, glass filling on the front with 4 mm toughened safety glass
– 19” profiles, 1.5 mm sheet steel, galvanized
Color
– Visible surfaces and cladding parts RAL 7035 light gray.
Scope of delivery
– 1 base frame.
– 4 x 19” perforated sheet steel profiles including HE marking. At 600mm only 2x 48,3 cm ( 19 inch ) profiles
set, complete (VDE 0100).
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Vertiv (Knürr) cabinet, Miracel 2, 42U, B800/T1000?
The article Vertiv (Knürr) cabinet, Miracel 2, 42U, B800/T1000 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Vertiv 011570051026 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Vertiv (Knürr) cabinet, Miracel 2, 42U, B800/T1000 always at the best possible price. We can give you a discount of 2% on Vertiv (Knürr) cabinet, Miracel 2, 42U, B800/T1000 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
