Vershoven 26.510_ Call detector DUO/SIP content_copy

The DUO/SIP call indicator is a reliable solution for both acoustic and visual signaling of incoming calls in modern SIP networks. Its robust IP66-rated housing, made of anthracite gray ABS plastic, provides excellent protection against dust and water, making it ideal for demanding industrial environments. Designed for wall mounting, the DUO/SIP is controlled via an integrated SIP relay.

With customizable LED flash sequences and ringtone options, the signaling behavior can be tailored to meet specific requirements. Configuration is done conveniently via the built-in web interface, ensuring easy setup and maintenance. Power can be supplied via PoE (802.3af standard) or alternatively with a 48VDC power connection. Delivering a sound level of up to 105 dBA at 1 meter, it ensures reliable acoustic notification even in noisy environments.

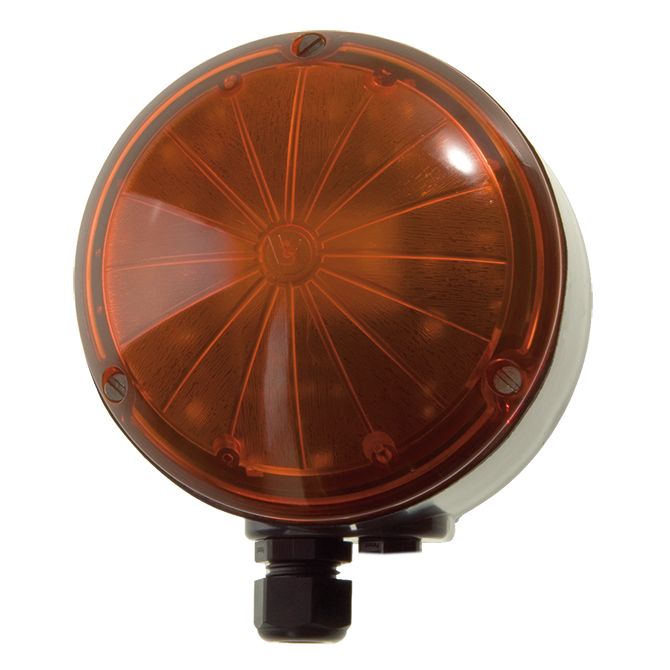

The image shows the dome color Orange. When ordering or inquiring, please specify the desired dome color:
orange = 00 / green = 10 / clear = 20 / red = 30 / yellow = 40.

Technical Data:

• Network connection: RJ45 socket, 10Mbit half-duplex
• Power supply: PoE 802.3af or 48VDC
• Power consumption: approx. 0.8 W standby / approx. 4 W operation
• Control: SIP
• Sound level: max. 105 dBA at 1 m
• Flash sequence: individually programmable
• CE compliance: EN 60950, EN 61000, EN 60947-1
• Storage temperature: -40°C to +70°C
• Operating temperature: -30°C to +60°C
• Housing material: ABS plastic, anthracite gray
• Protection rating: IP66
• Cable glands: M16 x 1.5 (for Ø 5–10 mm cables), M12 x 1.5 blind plug

Scope of Delivery:

• DUO/SIP call indicator
• M16 x 1.5 cable gland
• M12 x 1.5 blind plug
• Installation manual
• (Optional power supply if not operated via PoE)

Options:

• Dome colors: Orange (00), Green (10), Clear (20), Red (30), Yellow (40)
