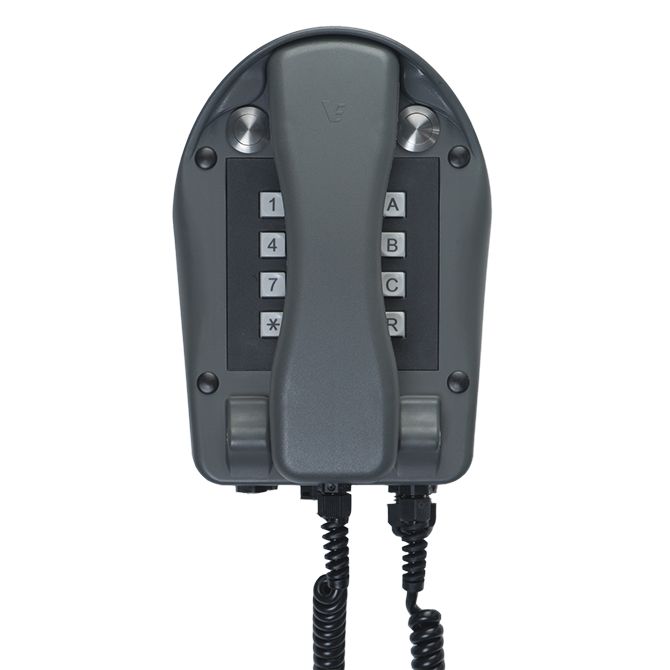

Vershoven 01.02000 Industrial telephone A24 VA - with stainless steel handset cord

The weatherproof A24 is suited for dusty and moist environments. It is designed for DTMF and pulse dialling as well as a PABX device and end device. Its keypad consists of 16 durable buttons that can also optionally ordered to light up. A continuously adjustable fixture protects the telephone handset against shocks. An integrated volume amplifier can be added on. We are also happy to offer the A24 with two custom buttons that can be assigned other functions as desired.

Technical Data:

Storage temperature: -40°C … +70°C
Operating temperature: -25°C … +55°C
Relative humidity: max 95%
Casing enclosure: IP 66
Dialling modes: DTMF or pulse*
CE conformity: EN 50081, EN 50082, EN 60950, access based on CTR21
Tone signalling volume: 60 dB(A) – 90 dB(A) at 1 m distance
Functions: depending on number of keys, 4-6 functions, redialling, mute, receiver amplification, 4x + 3dB, headset*, line ground* / flash,
4 direct outward dialling buttons, open listening, abbreviated dialling
Connection terminals: clamping range 0.08 – 2.5 mm² single, multi and fine wire
Cable gland: M16, Ø 5-10 mm
Dummy plugs: 1 x M12*, 1 x M16
Handset: M12Flex, Ø 3-6.5 mm
Material Casing: polyamide
Locking screws: V4A (1.4571)

* not available at A24/Basic
Type: A24
