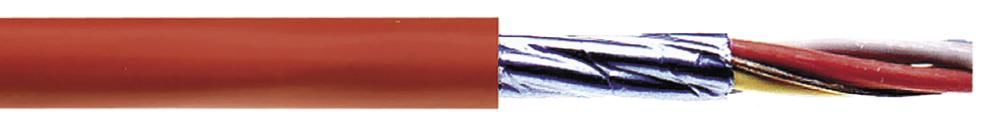

VDE-Kabel N730010 JH(St)H 4x2x0.8 Bd halogen-free without FE fire alarm cable red cores star quad
|
809,31 EUR |
|||||||||||
|
incl. 185,61 EUR copper surcharge ( 963,08 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 500 meters | |||||||||||
| Lieske Part No.: | 384748 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | N730010 | ||||||||||
| UPC/EAN: | 5413260615252 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel N730010:
Application:
Halogen-free installation cable with static shielding and improved fire performance for telecommunications and information processing systems. This cable is used for telephone, measurement and signal transmission, in the construction of intercoms and extensions for telecommunications systems of all classes in dry and damp operating locations.Installation on, in and under plaster is permitted. The static shielding reliably limits external electromagnetic interference alternating fields. There is no fire damage caused by halogen-containing gases, and the smoke development is minimal.
Structure:
Conductor: bare copper conductor, single-wire,
0.6 or 0.8 mm diameter
Core insulation: cross-linked polymer HI1
in accordance with VDE 0207 Part 23
Core identification: in accordance with VDE 0815
Stranding: 4 cores to a star quad and
5 star quads to a bundle
Bundles in layers Banding
Static shield: plastic-coated metal foil
(metal side inside) and
bare drain wire
Outer jacket: Polyolefin mixture HM2 in accordance with
VDE 0207 Part 24 halogen-free
and flame-retardant
Jacket color: gray RAL 7001 or red as
a fire alarm cable
Technical data: 0.6 mm 0.8 mm
Nominal voltage: 300 V 300 V
Test voltage: 800 V 800 V
Loop resistance: 130 Ohm/km 73.2 Ohm/km
Current carrying capacity: 2.5 A 5.1 A
Operating capacitance: 120 nF/km 100 nF/km
Insulation resistance: 100 MOhm x km 100 MOhm x km
Capacitive coupling K1 300 pF 300 pF
(100 m, 800 Hz): K9-12 100 pF 100 pF
Line attenuation: approx. 1.7 dB/km 1.1 dB/km (800Hz)
Temperature range: - 5 °C - + 50 °C
Operating temperature: + 70 °C (max.)
Bending radius: 7.5 x cable diameter
2.5 x cable diameter for
a single bend without tension
Burning behavior: in accordance with VDE 0472 T.
804 test type C (=IEC 332-1)
Properties:
halogen-free, low fire propagation, minimal smoke
development, no corrosive gases.
Type: J-H(ST)H 4 X 2 X 0,8
The item price shown refers to 500 meters VDE-Kabel N730010
Questions & answers
What is the delivery time of VDE-Kabel N730010 JH(St)H 4x2x0.8 Bd halogen-free without FE fire alarm cable red cores star quad?
The article VDE-Kabel N730010 JH(St)H 4x2x0.8 Bd halogen-free without FE fire alarm cable red cores star quad is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel N730010 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel N730010 JH(St)H 4x2x0.8 Bd halogen-free without FE fire alarm cable red cores star quad always at the best possible price. We can give you a discount of 2% on VDE-Kabel N730010 JH(St)H 4x2x0.8 Bd halogen-free without FE fire alarm cable red cores star quad if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 50 meters of VDE-Kabel N730010 JH(St)H 4x2x0.8 Bd halogen-free without FE fire alarm cable red cores star quad we can offer you a price of 771,89 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel N730010 JH(St)H 4x2x0.8 Bd halogen-free without FE fire alarm cable red cores star quad via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel N730010 JH(St)H 4x2x0.8 Bd halogen-free without FE fire alarm cable red cores star quad is offered by us in a sales unit of 500 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
