VDE-Kabel N729016 JH (St) H 2x2x0, 8 Bd halogen-free without FE, fire alarm cable wires red star quad
|
-98% 0,97 EUR 60,96 EUR |
|||||||||||
|
incl. 0,22 EUR copper surcharge ( 1,15 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >100 meters | |||||||||||
| Lieske Part No.: | 622809 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | N729016 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel N729016:

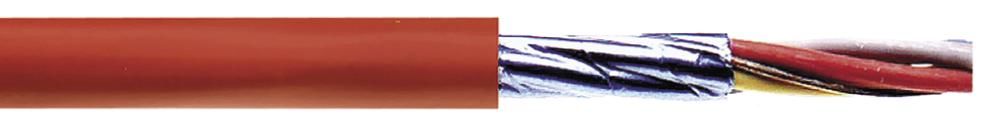

Fire alarm installation cable JH (St) H. .. Bd red
Application:
Halogen free installation cable with static screen and improved fire performance for telecommunication and information processing systems. This cable is used for telephone, measuring and signaling, in stations and private branch for telecommunication systems of all classes in dry and wet premises.
A laying on, in and under plaster is permitted. The static screen causes a reliable limit of external electromagnetic interference alternating fields. There are no fire damage by halogen-containing gases, the flue gas development is low.
Building:
Conductor: solid bare copper wire
0.6 or 0.8 mm
Insulation: cross-linked polymer HI1 by
VDE 0207 part 23
Core Kennzeichn. According to VDE 0815
Stranding: 4 cores to quads and
5 star quad to the bundle
Bundle in layers
Banding
Static
Screen: plastic laminated metal foil
(Metal side inside) and bare
Drain wire
Outer sheath: Polyolefin compound by HM2
VDE 0207 part 24 halogen-free
and flame retardant
Sheath color: gray RAL 7001 or red than
Fire Alarm Cable
Specifications: 0.6 mm 0.8 mm
Rated voltage: 300 V 300 V
Test voltage: 800V 800V
Schleifenwiderst. 130 Ohm / km 73.2 Ohm / km
Current Rating: 2.5 A 5.1 A
Operating capacity: 120 nF / km 100 nF / km
Isolationswiderst. 100 MOhm x km 100 MOhm x km
Capacitive Koppl. K1 300 pF 300 pF
(100 m, 800 Hz): K9-12 100 pF 100 pF
Leitungsdämpf. Approximately 1.7 dB / km 1.1 dB / km
(800Hz)
Temp: -. 5 ° C - + 50 ° C (during installation)
- 30 ° - 70 ° C (after installation)
Operating temperature: + 70 ° C (max.)
Bending radius: 7.5 x Leitungsdurc type: JH (ST) H 2X2X0, 8 item: 500 MTR
Type: J-H(ST)H 2X2X0,8 Bd
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
