VDE-Kabel G446096 NHXCH E90 4x10.0/10.0 sqmm halogen-free sheathed cable
|
18,92 EUR |
|
|
incl. 4,66 EUR copper surcharge ( 22,51 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1425877 |
|---|---|
| Mfg Part No: | G446096 |
| Weight: | 0.12 kg |
Product information for VDE-Kabel G446096:
functional integrity NHXCH FE 180 E90
Application:
Safety cables are used wherever special protection
against fire and fire damage to people and property
is necessary and long emergency running times must be met, such as in
airports, hospitals and schools . Can be used indoors and outdoors
, but should not be laid directly in soil or water. The formation of smoke caused by
fire, which makes escape routes impossible to find
and causes the development of toxic gases, is prevented.
Insulation retention of at least 180 minutes and functional retention of
at least 90 minutes. Safety for over 90 minutes guarantees the functionality
of water pressure boosting systems for extinguishing water supply,
ventilation systems, smoke and heat exhaust systems and fire brigade
lifts, etc.

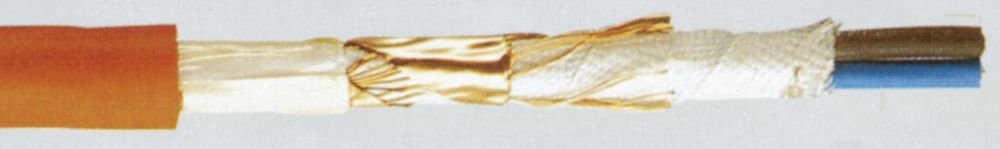

Construction:
Conductor: bare copper conductor according to VDE 0295,
round single-wire or multi-wire
50 mm2 are compressed
mica tapeCore insulation: polymer mixture halogen-free
according to VDE 0207 T. 23
Core identification: according to VDE 0293
Common core covering: glass silk tapes or
extruded filling mixture,
foil wrapping
Concentric conductor: made of bare copper wires with opposing
holding coil made of copper tape,
PETP- Tape
outer sheath: polymer mixture
halogen-free according to VDE 0207 T. 24
Sheath color: orange
Technical data:
Nominal voltage: 06/1 kV
Test voltage: 4000 V
Temperature range: +5°C - +50°C (when laying)
-30°C - +70° C (after laying)
Operating temperature: +90°C (max.)
Bending radius: 10 x cable diameter (fixed)
Tests:
Flammability: according to VDE 0472 T. 804,
test type C (=IEC 332-3)
Insulation maintenance: according to VDE 0472 T. 814 and IEC 331
Functional integrity: according to VDE 0472 T. 804 Sales unit: 1 MTR
Type: NHXCH-E90 4 X 10,0/ 10,0
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
