VDE-Kabel G432096 NHXCH E90 3x1, 5/1, 5 mm ², halogen-free sheath line
|
7,73 EUR |
|||||||||||
|
incl. 0,61 EUR copper surcharge ( 9,20 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 121413 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | G432096 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel G432096:
Application:
Safety cables are used wherever special protection against fire and fire damage to people and property neces- dig Notlaufzeiten is high and must be met, as in search . airports, hospitals and schools indoor and outdoor use, but do not lay Directly in the ground and water. By Resulting fire smoke production, the escape routes untraceable making and the development of toxic gases causes is Prevented. Insulation from at least 180 minutes and integrity of at least 90 min security about 90 min to guarantee optimum functionality with water pressure boosting systems for fire water supply, ventilation system, smoke and heat exhaust ventilation systems and fire- lifts etc.
Building:

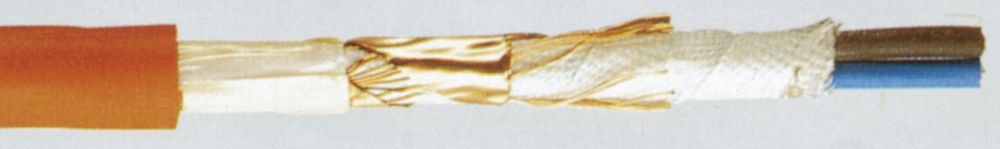

Conductor: bare copper wire Accor ding to VDE 0295, round solid or stranded > 50 mm ² are compacted mica tape insulation: polymer mixture halogen-free accor ding to VDE 0207 T. 23 Core identification to VDE 0293 Inner covering: glass silk ribbons or extruded filling compound, foil wrapping Concentric conductor: bare copper wire with opposite - läufiger helix of copper tape, PETP tape Sheath: polymer mixture halogen-free accor ding to VDE 0207 T. 24 Jacket Color: Orange
Specifications:
Rated voltage: 06/1 kV Test voltage: 4000 V Temperature range: +5 ° C - +50 ° C (during installation) -30 ° C - +70 ° C (after installation) Operating Temp +90 ° C (max ) Bend radius: 10 x cable diameter (fixed)
Tests:
Flammability: VDE 0472 T. 804, Category C (= IEC 332-3) Insulation: VDE 0472 T. 814 and IEC 331 integrity: VDE 0472 T. 804 Type: E90 NHXCH 3X1, 5/1, item 5 1 MTR
Type: NHXCH-E90 3X1,5/1,5
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
