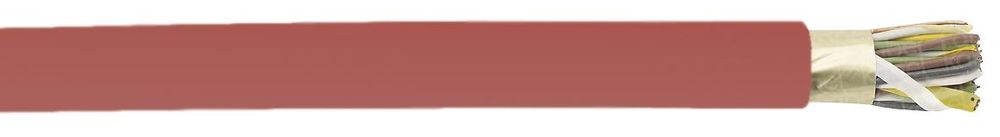

VDE-Kabel G168016 JE-H (ST) H E30 8x2x0, 8 red, fire alarm cable halogen-free FE E30
|
8,03 EUR |
|||||||||||
|
incl. 0,70 EUR copper surcharge ( 9,56 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 459268 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | G168016 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel G168016:
Application:
Security installation cable for the transmission of signals and
measurements in control and regulation systems. Where special protection
against fire and fire damage to people and property values ​​and
integrity of the equipment over a period of 30 minutes or
30 - 90 minutes is required. They are not for power-
approved installation purposes and not for direct burial.
Building:
Conductor: solid bare copper wire0.8 mm in diameter mica tapes
Insulation: cross-linked polymer HI1 according to VDE 0207
23 part
Core identification to VDE 0815
Twisting: 2 cores to the pair and
4 pairs into
bundles in layers common Aderhüllung
Static Screen: plastic laminated
metal foil (metal side inside)
and bare drain wire
Outer sheath: Polyolefin compound HM2
as per VDE 0207 Part 24
halogen-free and flame retardant
sheath color: orange or red than
Fire Alarm Cable
Specifications: 0.8 mm
Rated voltage: 225 V
Test voltage: 300 V
DC loop resistance: 73.2 ohms / km
Current Rating: 5.1A
Operating capacity: 120 nF / km
Insulation resistance: 100 Mohm x km
Capacitive coupling: C1 200 pF
(100 m , 800 Hz):
Attenuation: 1.2 dB / km (800 Hz)
Temperature range: - 5 ° C - + 50 ° C (during installation)
- 30 ° - 70 ° C (after installation) Operating Temperature: + 70 ° C (max.)
Bending radius: 7,5 x cable diameter
2.5 x cable diameter
for single bending without train
Tests:
Burning characteristics: according to VDE 0472 T. 804
Category C (= IEC 332-1)
Insulation: according to VDE 0472 part 814, IEC 331
integrity: to DIN 4102 Part 12
Corrosivity
Gases: according to VDE 0472 T. 813
Smoke density: according to VDE 0472 T. 816
Category C (= IE
Type: JE-H (ST) H 8x2x0, 8 BMK E30
Quantity: 1 MTR
Type: JE-H(ST)H 8X2X0,8 R
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
