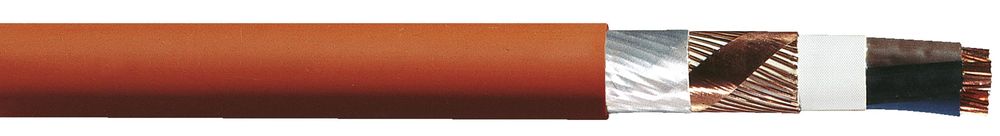

VDE-Kabel G034096 NHXCH E30 4x10, 0/10, 0qmm, halogen-free sheath line
|
14,86 EUR |
|||||||||||
|
incl. 4,66 EUR copper surcharge ( 17,68 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 477333 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | G034096 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel G034096:
with insulation and integrity, shielded
Application:
Wherever special protection against fire and fire damage for
People and property is necessary and meets high Notlaufzeiten
must be such Beisspiel in airports, hospitals and
Schools. Indoor and outdoor use, not directly in the ground
water and embarrassed. The emerging as fire, toxic
causes shear gases is prevented. Insulation of at least
180 minutes integrity of at least 30 minutes. Security
over 30 minutes, for example, guarantees the functionality of
Fire detection and alarm systems, security and other
Emergency power lighting.
Building:
Conductor: bare copper wire according to VDE 0295,
round solid or stranded
> 50 mm ² are compacted
Mica tape
Insulation: halogen-free polymer blend
according to VDE 0207 T. 23
Core identification to VDE 0293 (dischargers always
O version) filling compound
Inner covering: glass silk ribbons or
extruded filling compound
Concentric conductor: Bare copper wire with counter-
läufiger helix of copper tape,
PETP tape
Outer sheath: halogen-free polymer blend
according to VDE 0207 T. 24
Jacket color: Orange
Specifications:
Rated voltage: 06/1 kV
Test voltage: 4000 V
Temperature range: +5 ° C - +50 ° C (during installation)
-30 ° C - +70 ° C (after installation)
Operating temp. +90 ° C (max.)
Bending radius: 10 x cable diameter
(Fixed)
Tests:
Burning characteristics: according to VDE 0472 T. 804,
Category C (= IEC 332-3)
Insulation: VDE 0472 T. 814 and IEC 331
Function maintenance: according to VDE 0472 T. 804 and IEC 332-3
Corrosivity of gases: according to VDE 0472 T. 813
Flue gas you type: NHXCH-E30 4 X 10.0 / 10.0 Quantity: 1 MTR
Type: NHXCH-E30 4 X 10,0/
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
