VDE-Kabel G024096 NHXCH E30 3x70.0/35.0 sqmm halogen-free sheathed cable
|
66,18 EUR |
|||||||||||
|
incl. 23,68 EUR copper surcharge ( 78,75 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1425868 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | G024096 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel G024096:
with insulation and functional integrity, shielded
Application:
Wherever special protection against fire and fire damage to
people and property is necessary and long emergency times
must be met, such as in airports, hospitals and
schools. Can be used indoors and outdoors, do not
lay directly in soil and water. The development of toxic gases caused by fire
is prevented. Insulation retention of at least
180 minutes and functional retention of at least 30 minutes. Security
for over 30 minutes guarantees, for example, the functionality of
fire detection and alarm systems, security and other
backup lighting.

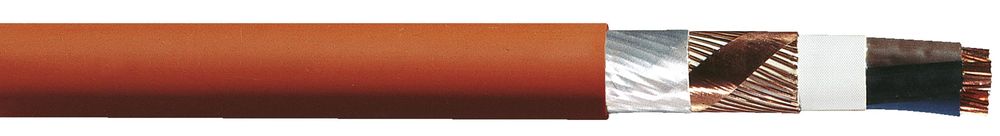

Construction:
Conductor: Bare copper conductor according to VDE 0295,
round single-wire or multi-wire
50 mm2 are compressed
Mica tapeCore insulation: polymer mixture halogen-free
according to VDE 0207 T. 23
Core identification: according to VDE 0293 (single-wire always in
O version) Filler jacket
Common core covering: Glass silk tape or
extruded Filling mixture
Concentric conductor: made of bare copper wires with opposing
holding coil made of copper tape,
PETP tape
Outer sheath: polymer mixture halogen-free
according to VDE 0207 T. 24
Sheath color: orange
Technical data:
Nominal voltage: 06/1 kV
Test voltage: 4000 V
Temperature range: +5°C - +50°C (when laying)
-30°C - +70°C (after laying)
Operating temperature: +90°C (max.)
Bending radius: 10 x cable diameter
(fixed)
Tests:
Burning behavior: according to VDE 0472 T . 804,
test type C (=IEC 332-3)
Insulation maintenance: according to VDE 0472 T. 814 and IEC 331
Functional maintenance: according to VDE 0472 T. 804 and IEC 332-3
Corrosiveness of the fire gases: according to VDE 0472 T. 813
Smoke gas tight Sales unit: 1 MTR
Type: NHXCH-E30 3 X 70,0/ 35,0
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of VDE-Kabel G024096 NHXCH E30 3x70.0/35.0 sqmm halogen-free sheathed cable?
The article VDE-Kabel G024096 NHXCH E30 3x70.0/35.0 sqmm halogen-free sheathed cable is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel G024096 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel G024096 NHXCH E30 3x70.0/35.0 sqmm halogen-free sheathed cable always at the best possible price. We can give you a discount of 2% on VDE-Kabel G024096 NHXCH E30 3x70.0/35.0 sqmm halogen-free sheathed cable if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 meters of VDE-Kabel G024096 NHXCH E30 3x70.0/35.0 sqmm halogen-free sheathed cable we can offer you a price of 64,91 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel G024096 NHXCH E30 3x70.0/35.0 sqmm halogen-free sheathed cable via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
