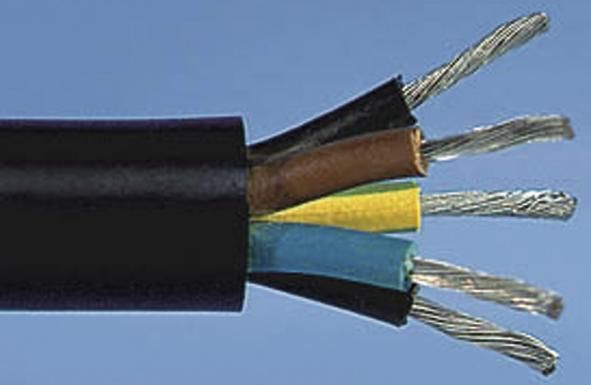

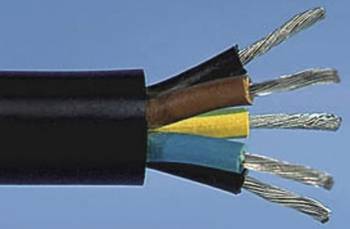

VDE-Kabel 500570200100 H07RN-F 4G4.0 sqmm 100m ring Heavy rubber hose line
|
471,48 EUR |
|||||||||||
|
incl. 115,38 EUR copper surcharge ( 561,06 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 100 meters | |||||||||||
| Lieske Part No.: | 473637 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 500570200100 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 500570200100:
For connecting equipment subject to very extreme loads, both mechanically and thermally. For example, for equipment in agricultural, commercial and fire-prone premises. They are also used for large cooking kettles, hotplates, hand lamps, power tools such as circular saws, drills, DIY equipment, but also for portable engines or machines on building sites or in agricultural operations, etc. Can also be used for permanent installation, e.g. on plaster, in temporary buildings and living quarters, permitted for direct installation on components of lifting gear, machines, etc.
Construction
Conductor: Fine-wire copper wire class 5
Core insulation: Rubber compound in accordance with
VDE 0207 T. 20
Core identification: in accordance with VDE 0293-308
Outer sheath: Rubber compound in accordance with
VDE 0207 T. 21
Sheath color: black
Note
G = with green-yellow protective conductor
X = without protective conductor
Technical data
Nominal voltage: 450/750 V
Test voltage: 2500 V
Temperature range: -25 °C - +80 °C (when laying)
-25 °C - +80 °C (after laying)
Operating temp.: +80 °C (max.)
Bending radius: 6 x cable diameter (min.)
Continuous tensile load: max. 15 N/mm^2 taking into account the
total copper cross-section
Fire behavior: according to VDE 0472 T. 804
test type B (=IEC 332-1)
Oil resistance
of the sheath: according to VDE 0472 T. 803
test type A
Ozone resistance: according to VDE 0472 T. 805 test type A or
according to VDE 0472 T. 805 A1 test type C.
Type: H07RN-F 4 G 4,0
The item price shown refers to 100 meters VDE-Kabel 500570200100
Questions & answers
What is the delivery time of VDE-Kabel 500570200100 H07RN-F 4G4.0 sqmm 100m ring Heavy rubber hose line?
The article VDE-Kabel 500570200100 H07RN-F 4G4.0 sqmm 100m ring Heavy rubber hose line is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 500570200100 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 500570200100 H07RN-F 4G4.0 sqmm 100m ring Heavy rubber hose line always at the best possible price. We can give you a discount of 2% on VDE-Kabel 500570200100 H07RN-F 4G4.0 sqmm 100m ring Heavy rubber hose line if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 meters of VDE-Kabel 500570200100 H07RN-F 4G4.0 sqmm 100m ring Heavy rubber hose line we can offer you a price of 450,11 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 500570200100 H07RN-F 4G4.0 sqmm 100m ring Heavy rubber hose line via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 500570200100 H07RN-F 4G4.0 sqmm 100m ring Heavy rubber hose line is offered by us in a sales unit of 100 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
