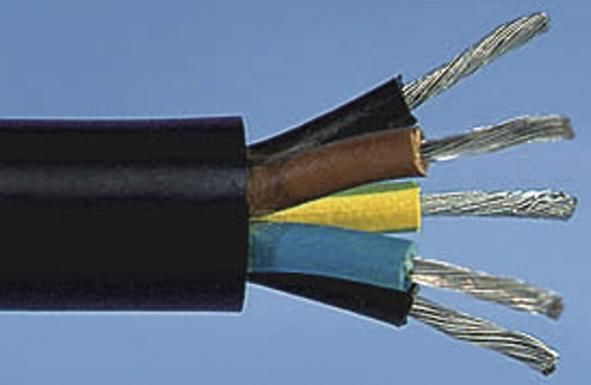

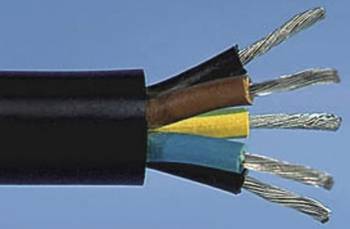

VDE-Kabel 500570100050 H07RN-F 4G4 50m sq mm Ring, Heavy rubber cable
|
235,40 EUR |
|||||||||||
|
incl. 57,69 EUR copper surcharge ( 280,13 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 50 meters | |||||||||||
| Lieske Part No.: | 625733 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 500570100050 | ||||||||||
| Weight: | 39 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 500570100050:
to VDE 0282-4
Application: < B>
For connection of equipment under very extreme
loads, both mechanical and thermal point of view.
for example, in agricultural equipment, commercial and fire-hazard
ten operating sites.Next they are for large boilers, heating plates,
hand lamps, electric tools such as circular saws, drills,
home network devices, but also for transportable motors or machines
used on construction sites or farms, etc.,
can also for fixed installation, eg on plaster, in temporary
buildings and barracks, allowed for direct laying aud
components
of lifting equipment, machines, etc.
Structure: < B>
Conductor: Stranded bare copper Class 5
Insulation: rubber mixture according to VDE 0207 T. 20
Core identification to VDE 0293
outer sheath: rubber mixture according to VDE 0207 T. 21
Color: black
Specifications: < B>
Rated voltage: 450/750 V
Test voltage: 2500 V
temperature range: - 25 ° C - + 60 ° C (during installation)
- 40 ° C - +60 ° C (after installation)
Operating temp. +60 ° C (max.)
bending radius: 6 x cable diameter (min.)
Dauerzugbelastung: max.15N/mm 2
taking into account the
total copper cross section
fire: according to VDE 0472 T. 804
type B (= IEC 332-1)
oil resistance of sheath: VDE 0472 T. 803 test A
Ozone resistance: according to VDE 0472 T. 805 Category A or
to VDE 0472 T. 805 A1 Category C
cores x cross-section mm ²: 4 G 4
Cu index (kg / m% ): 15.4
Outer diameter approx: 17.9
weight (kg / m%): 35.7
type: H07RN-F 4G4 50M item: 50 MTR
Type: H07RN-F 4G4 50M
The item price shown refers to 50 meters VDE-Kabel 500570100050
Questions & answers
What is the delivery time of VDE-Kabel 500570100050 H07RN-F 4G4 50m sq mm Ring, Heavy rubber cable?
The article VDE-Kabel 500570100050 H07RN-F 4G4 50m sq mm Ring, Heavy rubber cable is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 500570100050 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 500570100050 H07RN-F 4G4 50m sq mm Ring, Heavy rubber cable always at the best possible price. We can give you a discount of 2% on VDE-Kabel 500570100050 H07RN-F 4G4 50m sq mm Ring, Heavy rubber cable if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 meters of VDE-Kabel 500570100050 H07RN-F 4G4 50m sq mm Ring, Heavy rubber cable we can offer you a price of 224,74 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 500570100050 H07RN-F 4G4 50m sq mm Ring, Heavy rubber cable via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 500570100050 H07RN-F 4G4 50m sq mm Ring, Heavy rubber cable is offered by us in a sales unit of 50 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
