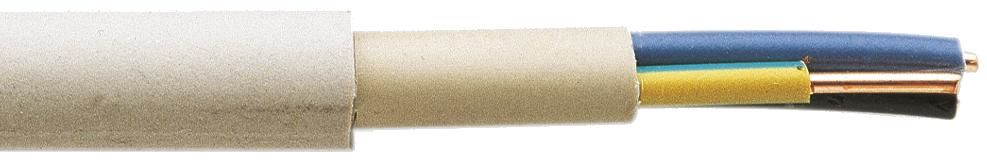

VDE-Kabel 3x2, 5 mm ² 100m ring, PVC insulated sheathed cable
|
83.287,16 EUR |
|||||||||||
|
incl. 83.234,88 EUR copper surcharge ( 99.111,72 EUR incl. VAT ) ≈ £71,460.38 | ≈ $96,529.82 plus delivery charges: 148,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| Sales unit: 100 meters | |||||||||||
| In Stock: >1000 meters | |||||||||||
| Lieske Part No.: | 628153 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | |||||||||||
| Weight: | 13 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel NYM-J 3X2,5 100M:
The NYM-J 3x2.5 is characterized by high electrical safety: the rated voltage is 300/500 V, and the test voltage is 2000 V. The maximum operating temperature is +70 °C, and the cable can withstand temperatures from -40 °C to +70 °C after installation. During installation, a temperature range of +5 °C to +70 °C must be maintained. The bending radius is 4 times the cable diameter for fixed installation, allowing for flexible handling. The cable is designed for permanent, reliable power supply in various applications, including industrial facilities, residential buildings, and outdoor installations.
Technical Data
- Number of cores x cross-section: 3 x 2.5 mm²
- Rated voltage: 300/500 V
- Test voltage: 2000 V
- Operating temperature (max.): +70 °C
- Temperature range (during installation): +5 °C to +70 °C
- Temperature range (after installation): -40 °C to +70 °C
- Bending radius: 4 x cable diameter (fixed installation)
- Outer sheath: PVC gray
- Core insulation: PVC according to VDE 0207 T. 4
- Conductor: bare copper conductor, single-strand up to 10 mm²
- Marking: according to VDE 0293-308
- Filler sheath: present
- Weight: 22.9 kg/100 m
- Outer diameter: approx. 10.4 mm
- Cu content: 7.2 kg/100 m
- Manufacturing: VDE-compliant
Type: NYM-J 3X2,5 100M
The item price shown refers to 100 meters VDE-Kabel NYM-J 3X2,5 100M
Questions & answers
What is the delivery time of VDE-Kabel 3x2, 5 mm ² 100m ring, PVC insulated sheathed cable?
The article VDE-Kabel 3x2, 5 mm ² 100m ring, PVC insulated sheathed cable is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel NYM-J 3X2,5 100M to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 3x2, 5 mm ² 100m ring, PVC insulated sheathed cable always at the best possible price. We can give you a discount of 2% on VDE-Kabel 3x2, 5 mm ² 100m ring, PVC insulated sheathed cable if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 meters of VDE-Kabel 3x2, 5 mm ² 100m ring, PVC insulated sheathed cable we can offer you a price of 83.286,38 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 3x2, 5 mm ² 100m ring, PVC insulated sheathed cable is offered by us in a sales unit of 100 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
