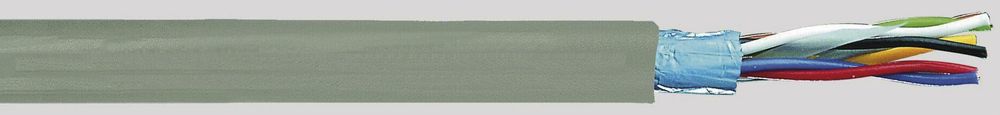

VDE-Kabel 377005032 RD-Y(ST)Y 32x2x0.5 mm² gray 100m ring control technology cable
|
1.419,75 EUR |
|||||||||||
|
incl. 306,27 EUR copper surcharge ( 1.689,50 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 100 meters | |||||||||||
| Lieske Part No.: | 444019 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 377005032 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 377005032:
As an installation cable, data, control and
connection cable in telecommunications and information systems as well as in trade fair control and regulation technology, for interference-free data and signal
transmission. Suitable for permanent installation in dry and damp rooms, outdoors but not without UV protection and not in the ground.
Construction
Conductor: bare copper wire, 7-wire
Core insulation: polyvinyl chloride (PVC)
Core identification: different colors, according to VDE 0815
Stranding: pairs in bundle stranding
Filling element: aluminum-coated foil
with drain wire underneath
Outer jacket: PVC
Technical data
Conductor resistance: max. 73.6 Ohm/km
Temperature range: moving -5°C to +50°C
stationary -40°C to +70°C
Peak operating voltage: max. 600 V (not for high-current installation purposes)
Test voltage: core/core 2000 V
core/shield 1000 V
Installation resistance: core/core min. 100 MOhm x km
core/shield min. 100 MOhm x km
Operating capacity: at 800 Hz max. 120 nF/km
(for cables with up to 4 double cores, 20%
exceedance of the values possible)
Characteristic impedance: at 1 kHz approx. 370 Ohm
at 10 kHz approx. 130 Ohm
Capacitive coupling: at 800 Hz max. 200 pF/100 m
(20% of the values, but at least one
value, may be up to 400 pF)
Line attenuation: at 1 kHz approx. 1.2 dB/km
at 10 kHz approx. 3.0 dB/km
Crosstalk attenuation: at 10 kHz and 500 m line length min. 60 dB
Minimum bending radius: approx. 7.5 x line diameter
Flame retardancy: VDE 0482-332-1-2/IEC 60332-1.
Type: RD-Y(ST)Y 32X2X0,5 G
The item price shown refers to 100 meters VDE-Kabel 377005032
Questions & answers
What is the delivery time of VDE-Kabel 377005032 RD-Y(ST)Y 32x2x0.5 mm² gray 100m ring control technology cable?
The article VDE-Kabel 377005032 RD-Y(ST)Y 32x2x0.5 mm² gray 100m ring control technology cable is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 377005032 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 377005032 RD-Y(ST)Y 32x2x0.5 mm² gray 100m ring control technology cable always at the best possible price. We can give you a discount of 2% on VDE-Kabel 377005032 RD-Y(ST)Y 32x2x0.5 mm² gray 100m ring control technology cable if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 meters of VDE-Kabel 377005032 RD-Y(ST)Y 32x2x0.5 mm² gray 100m ring control technology cable we can offer you a price of 1.369,64 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 377005032 RD-Y(ST)Y 32x2x0.5 mm² gray 100m ring control technology cable via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 377005032 RD-Y(ST)Y 32x2x0.5 mm² gray 100m ring control technology cable is offered by us in a sales unit of 100 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
