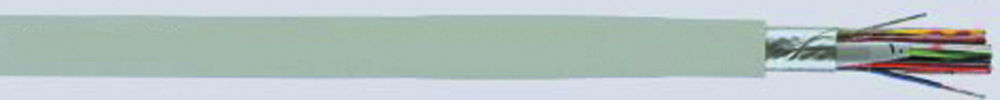

VDE-Kabel 372008002 JE-Y (ST) Y 2x2x0.8 mm ² BD EWT 500M, data cable installation
|
374,67 EUR |
|||||||||||
|
incl. 106,59 EUR copper surcharge ( 445,86 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 500 meters | |||||||||||
| Lieske Part No.: | 127813 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 372008002 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 372008002:
Application:
The cables are used to transmit signals and measured values in symmetrical circuits in control and regulation technology, as well as to transmit information in data and process computer systems. Suitable for permanent installation in dry and damp rooms in and under plaster, but also for permanent installation on external walls of buildings. With blue outer sheath for intrinsically safe systems. Installation cables arenot approved for high-voltage installation purposes or for underground installation.
Structure
Cu conductor: bare, solid 0.8 mm Ø
PVC core insulation: YI3 in accordance with DIN VDE 0482
Pair marking: in accordance with DIN VDE 0815
(Siematic color code) Stranding: Cores stranded in
pairs with optimal lay lengths 4 pairs to a bundle Bundles stranded in layers. Foil wrapping: Shielding made of plastic- laminated aluminum foil Bare copper drain wire Sheath: gray (RAL 7032) Technical data Conductor resistance of the loop: max. 73.2 Ohm/km Insulation resistance: min. 100 mOhmxkm Capacitive coupling: max. 200 pF/100 m Operating capacitance at 800 Hz: max. 100 nF/km Test voltage: Core/core: 500 V 50 Hz 1 min. Core/shield: 2000 V 50 Hz 1 min. Peak operating voltage: 225 V Temperature range: moving: -5 °C to +50 °C stationary: -30 °C to +70 °C Bending radius: 7.5 x cable diameter.
Type: JE-Y(ST)Y 2 X 2 X 0,
The item price shown refers to 500 meters VDE-Kabel 372008002
Questions & answers
What is the delivery time of VDE-Kabel 372008002 JE-Y (ST) Y 2x2x0.8 mm ² BD EWT 500M, data cable installation?
The article VDE-Kabel 372008002 JE-Y (ST) Y 2x2x0.8 mm ² BD EWT 500M, data cable installation is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 52 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 372008002 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 372008002 JE-Y (ST) Y 2x2x0.8 mm ² BD EWT 500M, data cable installation always at the best possible price. We can give you a discount of 2% on VDE-Kabel 372008002 JE-Y (ST) Y 2x2x0.8 mm ² BD EWT 500M, data cable installation if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 meters of VDE-Kabel 372008002 JE-Y (ST) Y 2x2x0.8 mm ² BD EWT 500M, data cable installation we can offer you a price of 370,65 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 372008002 JE-Y (ST) Y 2x2x0.8 mm ² BD EWT 500M, data cable installation via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 372008002 JE-Y (ST) Y 2x2x0.8 mm ² BD EWT 500M, data cable installation is offered by us in a sales unit of 500 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
