VDE-Kabel 295388 NA2XS(F)2Y 3x1x150RM/25 12/20KV Fca medium voltage cable according to VDE 0276-620
|
62,99 EUR |
|
|
incl. 7,85 EUR copper surcharge ( 74,96 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1320614 |
|---|---|
| Mfg Part No: | 295388 |
| Weight: | 0.12 kg |
Product information for VDE-Kabel 295388:
Application:
For laying in the ground, outdoors (however, the cable must be protected from sunlight), indoors and in cable ducts for power plants, industry and distribution networks. When laying in cable ducts and indoors, it must be taken into account that the PE sheath is not flame-retardant according to VDE 0472 T. 804, test type B.The cable is suitable for unfavorable operating conditions, especially if the penetration of water in the longitudinal direction must be avoided after mechanical damage.

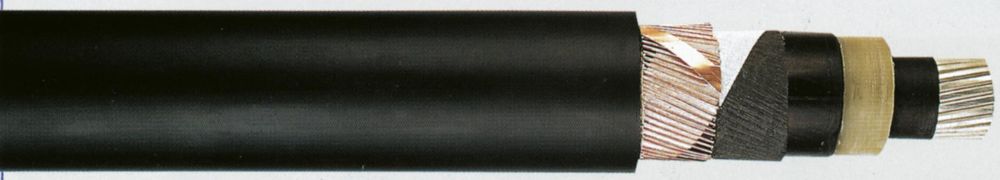

Structure:
Conductor: bare aluminum conductor in accordance with
VDE 0295, (RM) round,
multi-wire, extruded
inner conductive layer
Core insulation: VPE (cross-linked polyethylene)
extruded outer conductive layer gap sealing
(conductive tape and swelling tape)
Shield: copper wires and cross-conductive spiral
made of copper
foil banding
Outer jacket: black PE
Technical data:
Nominal voltage: 6/10 kV, 12/20 kV and 18/30 kV
Test voltage: 21 kV AC/5 min. at Uo/U=6/10 kV
30 kV AC/5 min. at Uo/U=12/20 kV
45 kV AC/5 min. at Uo/U=18/30 kV
Temperature range: -20 °C - +70 °C (during installation)
-30 °C - +70 °C (after installation)
Operating temperature: +90 °C (max.)
Bending radius: 15 x cable diameter min.
Type: NA2XS(F)2Y 3 X 1 X 150,0 RM/25 12/20KV
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
