VDE-Kabel 2141001-149 EIB-BUS cable 2x2x0, 8 green halogen-free, 500m drum
|
843,97 EUR |
|||||||||||
|
incl. 86,62 EUR copper surcharge ( 1.004,32 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| Sales unit: 500 meters | |||||||||||
| In Stock: >1000 meters | |||||||||||
| Lieske Part No.: | 996658 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2141001-149 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 2141001-149:

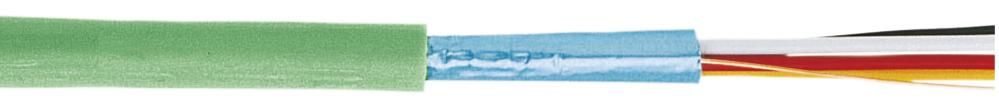

Structure:
Conductor: single-wire bare copper conductor,
0.8 mm diameter
Core insulation: PVC
Marking: in accordance with VDE 0815
Stranding: cores in pairs Pairs in layers
Static shield: plastic-coated metal foil
with drain
wire Foil
outer sheath: green PVC with
'fire alarm cable' imprint
Technical data:
Nominal voltage: 300 V
Test voltage: 800 V
Loop resistance: 73.2 Ohm/km
Current carrying capacity: 5.1 A
Operating capacity: 100 nF/km
Insulation resistance: 100 MOhm x km
Capacitive
coupling: K1 (800 Hz, 100 m) 300 pF
Line attenuation: approx. 1.1 dB/km (800 Hz)
Temperature range: -5 °C - +50 °C (when laying)
-30 °C - +70 °C (after laying)
Operating temperature: +70 °C (max.)
Bending radius: 7.5 x Cable diameter
2.5 x cable diameter
for one-time bending without tension
Flame retardancy: according to VDE 0472 T. 804
test type B (=IEC 332-1).
Type: Y(ST)H 2X2X0,8 HALOF
The item price shown refers to 500 meters VDE-Kabel 2141001-149
Questions & answers
What is the delivery time of VDE-Kabel 2141001-149 EIB-BUS cable 2x2x0, 8 green halogen-free, 500m drum?
The article VDE-Kabel 2141001-149 EIB-BUS cable 2x2x0, 8 green halogen-free, 500m drum is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 2141001-149 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 2141001-149 EIB-BUS cable 2x2x0, 8 green halogen-free, 500m drum always at the best possible price. We can give you a discount of 2% on VDE-Kabel 2141001-149 EIB-BUS cable 2x2x0, 8 green halogen-free, 500m drum if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 50 meters of VDE-Kabel 2141001-149 EIB-BUS cable 2x2x0, 8 green halogen-free, 500m drum we can offer you a price of 798,53 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 2141001-149 EIB-BUS cable 2x2x0, 8 green halogen-free, 500m drum via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 2141001-149 EIB-BUS cable 2x2x0, 8 green halogen-free, 500m drum is offered by us in a sales unit of 500 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
