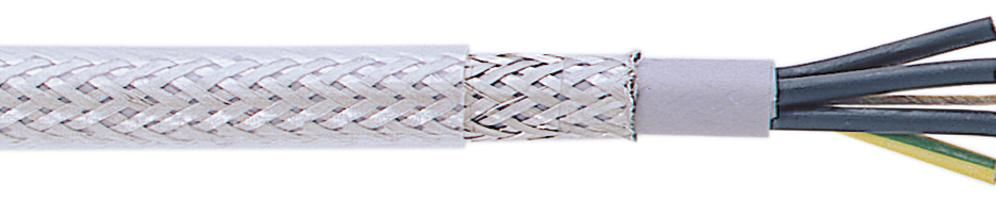

VDE-Kabel 10700913 YSLYCY-OZ 2x0, 75 mm ², control cable with copper shielding transparent
|
2,00 EUR |
|||||||||||
|
incl. 0,39 EUR copper surcharge ( 2,38 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 333169 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 10700913 | ||||||||||
| Weight: | 10.8 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 10700913:
Application:
Steuerungseitung for control equipments on machine tools, conveyor and
Assembly lines, conveyor systems, equipment, etc. Suitable for
fixed installation or flexible application, with free movement without
Tensile stress or forced movements. The
Number YSLYCY-JZ cable, in dry, damp and wet
Spaces used for medium mechanical stresses are
the. When used as a signal or measuring line are high-frequency
te external influences parried by the copper screen.
Building:
Conductor: Bare copper, fine wireaccording to VDE 0295 cl 5
Insulation: PVC
Core identification to VDE 0293, JZ = black cores with
consecutive numbers and
green-yellow earth core
OZ = black cores with consecutive run-the
Numbers printed without protective conductor
twisted in layers
PVC inner jacket gray
Shielding: tinned copper braid
Jacket: PVC
Color: transparent
Specifications:
Rated voltage: 300/500 VTest voltage: 4000 V
Temperature - 5 ° C + 70 ° C (dynamic)
range: -30 ° C + 70 ° C (non-moving)
Bending radius: 4 x cable diameter (fixed)
15 x cable diameter
(Flexible use)
Flame resistance according to VDE 0472 T. 804
Category B (= IEC 332-1)
Features: YSLY control lines are largely
Starting resistant to the action
of chemicals such as acids and alkalis
and certain hydrocarbon
connections
Number of cores x cross-section mm ² 2 x 0.75 (OZ)
Outer diameter approx: 7.4
Copper content (kg / m%): 6.12
Approximate weight (kg / m%): 9.9
Type: YSLYCY-OZ 2X0, 75
Quantity: 1 MTR
Type: YSLYCY-OZ 2X0,75
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
