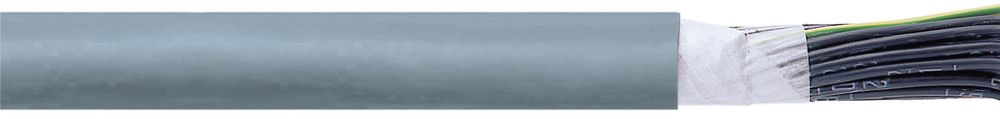

VDE-Kabel 106010003 YSLY-HF-JZ 3G1.0 mm² highly flexible drag chain cable. PVC-PVC
|
1,39 EUR |
|||||||||||
|
incl. 0,22 EUR copper surcharge ( 1,65 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 449922 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 106010003 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 106010003:
Application:
PVC drag chain cables are suitable as measuring, control and regulating cables in machine tool construction, in plant and equipment construction and in transport and conveyor technology. These cables are particularly suitable in cable drag chains, on assembly lines and in robot technology, as well as in cases of constant bending stress and constantly moving current collectors. Installation in dry and damp rooms, but not outdoors.Structure:
Conductor: bare copper wire,
extra-fine wire in accordance with VDE 0295 Class 6
Core insulation: PVC
Core identification: VDE 0293-308
JZ = black cores with
consecutive numbering
and green-yellow protective conductor
OZ = black cores with
consecutive numbering
without protective conductor Stranding: stranded in layers
in extremely short lay lengths Fleece banding Sheath: PVC mixture Color: gray Technical data: up to 0.75 mm from 1.0 mm Nominal voltage: 300/500 V 500/750 V Test voltage: 2000 V 3000 V Temperature range: -5 °C - +70 °C (moving) -40 °C - +70 °C (not moving) Bending radius: 10 x cable diameter (moving) 7.5 x cable diameter (fixed) Flame retardancy: in accordance with VDE 0472 T. 804 test type B (=IEC 332-1) Product advantages: - high flexibility - small bending radius.
Type: YSLY-HF-JZ 3x1,0
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
Questions & answers
What is the delivery time of VDE-Kabel 106010003 YSLY-HF-JZ 3G1.0 mm² highly flexible drag chain cable. PVC-PVC?
The article VDE-Kabel 106010003 YSLY-HF-JZ 3G1.0 mm² highly flexible drag chain cable. PVC-PVC is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 106010003 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 106010003 YSLY-HF-JZ 3G1.0 mm² highly flexible drag chain cable. PVC-PVC always at the best possible price. We can give you a discount of 2% on VDE-Kabel 106010003 YSLY-HF-JZ 3G1.0 mm² highly flexible drag chain cable. PVC-PVC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 50 meters of VDE-Kabel 106010003 YSLY-HF-JZ 3G1.0 mm² highly flexible drag chain cable. PVC-PVC we can offer you a price of 1,34 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 106010003 YSLY-HF-JZ 3G1.0 mm² highly flexible drag chain cable. PVC-PVC via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
