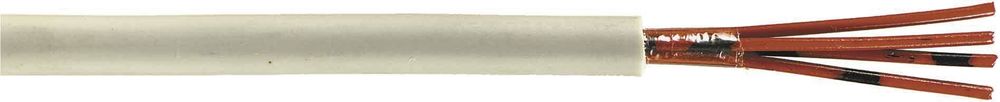

VDE-Kabel 105638-00 I-YY BD 6x2x0, 6, telecommunications installation cable
|
503,85 EUR |
|||||||||||
|
incl. 144,97 EUR copper surcharge ( 599,58 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 500 meters | |||||||||||
| Lieske Part No.: | 447169 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 105638-00 | ||||||||||
| Weight: | 7.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 105638-00:
according to VDE 0815
Application:
Preferably in the stations and private branch for
Telecommunications installations in dry and damp rooms
as well as for
fixed installation on outer walls for protection against solar radiation.
Building:
Conductor: copper conductor, solidblank
0.6 mm diameter
Insulation: PVC
Marking:
according to VDE 0815
Stranding: 4 cores for Star
four
Star quad to the bundle
Stranded to cable core
Film
Sheath: Grey PVC
Specifications:
Rated voltage: 300 VTest voltage: 800 V
Loop resistance: 130 / km
Rated current: 2.5 A
Operating capacity: 100 nF / km
Insulation resistance: 100 km Mx
Capacitive
Couplings: K1 (800 Hz, 100 m) 300pF
Line Attenuation: 1.7 dB / km (800 Hz)
Temperature range: - 5 ° C - + 50 ° C
(During installation)
- 30 ° C - + 70 ° C
(After installation)
Operating temperature: + 70 ° C (max.)
Bending radius: 7,5 x cable diameter
2.5 x cable diameter
for single bending without
Train
Flame resistance according to VDE 0472 T. 804
Category B (= IEC 332-1)
Diameter in mm: 6 x 0.6 x 2
Outer diameter approx: 7.2
Copper content (kg / m%): 3.4 Type: I-YY 6x2x0, 6
Quantity: 1 MTR
Type: I-YY 6X2X0,6
The item price shown refers to 500 meters VDE-Kabel 105638-00
Questions & answers
What is the delivery time of VDE-Kabel 105638-00 I-YY BD 6x2x0, 6, telecommunications installation cable?
The article VDE-Kabel 105638-00 I-YY BD 6x2x0, 6, telecommunications installation cable is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 105638-00 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 105638-00 I-YY BD 6x2x0, 6, telecommunications installation cable always at the best possible price. We can give you a discount of 2% on VDE-Kabel 105638-00 I-YY BD 6x2x0, 6, telecommunications installation cable if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 50 meters of VDE-Kabel 105638-00 I-YY BD 6x2x0, 6, telecommunications installation cable we can offer you a price of 493,08 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 105638-00 I-YY BD 6x2x0, 6, telecommunications installation cable via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 105638-00 I-YY BD 6x2x0, 6, telecommunications installation cable is offered by us in a sales unit of 500 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
