VDE-Kabel 102897-00 EIB-BUS cable 2x2x0, 8, 250m green ring,
|
336,10 EUR |
|||||||||||
|
incl. 43,31 EUR copper surcharge ( 399,96 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| Sales unit: 250 meters | |||||||||||
| In Stock: >1000 meters | |||||||||||
| Lieske Part No.: | 559565 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 102897-00 | ||||||||||
| UPC/EAN: | 8009929293663 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||

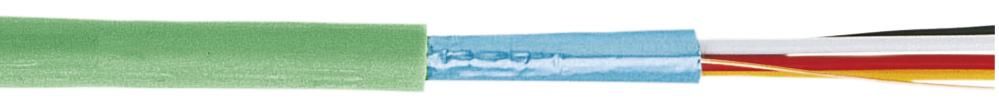

Product information for VDE-Kabel 102897-00:
Application:
Communication in building systems technologyUsed in building systems technology for decentralized control of e.g. lighting, heating, air conditioning, ventilation, energy management, blinds, time recording, locking systems, etc. The cable is not approved for high-voltage installation purposes or for laying underground.
Data is transmitted serially.
The EIB installation essentially consists of sensors = command transmitters
(e.g. light barriers, switches, thermostats, infrared, anemometers, time switches) and actuators = command receivers (e.g. motors, heating, fans, lamps, blinds). The EIB bus cable can be laid on, in and under plaster, in pipes and cable ducts, in dry, damp and wet rooms.
EIB - BUS 2x2x0.8 mm
Conductor: bare copper wire, 0.8 mm diameter
Core insulation: PVC
Core identification: 1st pair red + black
2nd pair white + yellow
Stranding: 4 cores to a star quad
Shield: Aluminum-laminated plastic film
Sheath: PVC
Color: green
Technical data
Conductor resistance: 37 Ohm/km max.
Insulation resistance: 100 MOhm x km
Test voltage
core/sheath: 4 kV/50Hz 1 min.
Temperature range: -30 °C - + 70 °C (not moving)
Bending radius: 7.5 x cable diameter (not moving)
Standards: according to EIB specification.
Type: PYCYM 2X2X0,8
The item price shown refers to 250 meters VDE-Kabel 102897-00
Questions & answers
What is the delivery time of VDE-Kabel 102897-00 EIB-BUS cable 2x2x0, 8, 250m green ring,?
The article VDE-Kabel 102897-00 EIB-BUS cable 2x2x0, 8, 250m green ring, is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 102897-00 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 102897-00 EIB-BUS cable 2x2x0, 8, 250m green ring, always at the best possible price. We can give you a discount of 2% on VDE-Kabel 102897-00 EIB-BUS cable 2x2x0, 8, 250m green ring, if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 meters of VDE-Kabel 102897-00 EIB-BUS cable 2x2x0, 8, 250m green ring, we can offer you a price of 318,53 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 102897-00 EIB-BUS cable 2x2x0, 8, 250m green ring, via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 102897-00 EIB-BUS cable 2x2x0, 8, 250m green ring, is offered by us in a sales unit of 250 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
