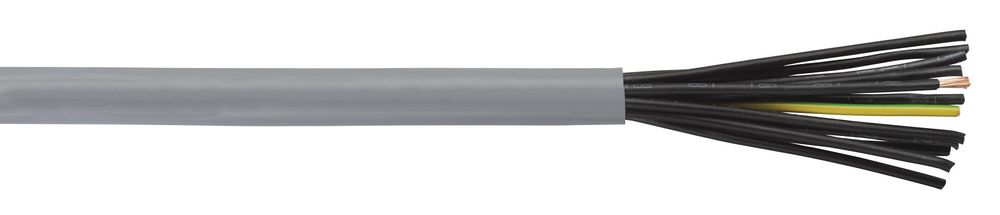

VDE-Kabel 10232706 YSLY-JB 4G0, 75 mm ² 100m ring, PVC control cable with colored cores
|
122,70 EUR |
|||||||||||
|
incl. 18,30 EUR copper surcharge ( 146,01 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 100 meters | |||||||||||
| Lieske Part No.: | 586149 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 10232706 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 10232706:
Application:
Connection and connection cable for control devices of tool
machines, conveyor and assembly lines, conveyor systems, equipment
, etc. Suitable for fixed installation or flexible application, with free
movement without tensile stress or forced
motion control. The control line can be used in dry, damp and
wet areas with medium mechanical stresses entered
are used.
Building:
Conductor: Bare copper, fine wireaccording to VDE 0295 cl 5
Insulation: PVC
Core identification: VDE 0293
JB = colored cores
and green-yellow protective conductor
OB colored cores =
without protective conductor
twisted in layers
Jacket: PVC
Color: gray
Specifications:
Rated voltage: 300/500 VTest voltage: 4000 V
Temperature range: - 5 ° C + 70 ° C (dynamic)
-30 ° C to +70 ° C (non-moving)
Bending radius: 4 x cable diameter
(Fixed)
15 x cable diameter
(Flexible use)
Flame resistance according to VDE 0472 T. 804
Category B (= IEC 332-1)
Features: YSLY control lines are largely
resistant to the action of
chemicals such as acids and alkalis
and certain hydrocarbon
connections
Number of cores x cross-section mm ²: 4 x 0.75
Outer diameter approx: 6.4
Cu index (kg / m%): 2.88
approx Weight (kg / m%): 7.1 Type: YSLY-JB 4X0, 75
Item: 100 MTR
Type: YSLY-JB 4X0,75
The item price shown refers to 100 meters VDE-Kabel 10232706
Questions & answers
What is the delivery time of VDE-Kabel 10232706 YSLY-JB 4G0, 75 mm ² 100m ring, PVC control cable with colored cores?
The article VDE-Kabel 10232706 YSLY-JB 4G0, 75 mm ² 100m ring, PVC control cable with colored cores is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 10232706 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 10232706 YSLY-JB 4G0, 75 mm ² 100m ring, PVC control cable with colored cores always at the best possible price. We can give you a discount of 2% on VDE-Kabel 10232706 YSLY-JB 4G0, 75 mm ² 100m ring, PVC control cable with colored cores if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 meters of VDE-Kabel 10232706 YSLY-JB 4G0, 75 mm ² 100m ring, PVC control cable with colored cores we can offer you a price of 114,87 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 10232706 YSLY-JB 4G0, 75 mm ² 100m ring, PVC control cable with colored cores via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 10232706 YSLY-JB 4G0, 75 mm ² 100m ring, PVC control cable with colored cores is offered by us in a sales unit of 100 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
