VDE-Kabel 10175406 H05VV5-F 5G0, 75 mm ², UL, CSA, VDE / HAR, SEV - Admission
|
1.121,88 EUR |
|||||||||||
|
incl. 152,47 EUR copper surcharge ( 1.335,04 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 500 meters | |||||||||||
| Lieske Part No.: | 122872 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 10175406 | ||||||||||
| UPC/EAN: | 4046725055426 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||

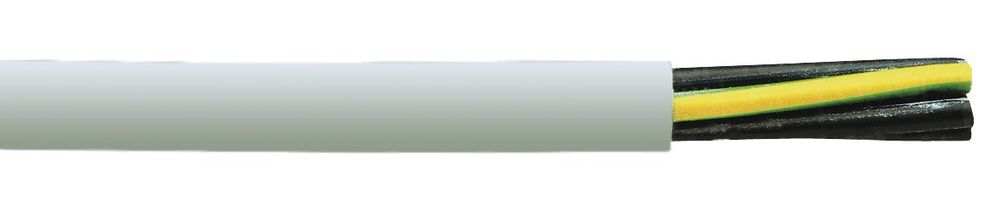

Product information for VDE-Kabel 10175406:
Application:
In plant and mechanical engineering, for export to North America and Canada. Otherwise as H05VV5-F.Structure:
Conductor: Bare copper wire,
finely stranded in accordance with VDE 0295 Class 5
Core insulation: PVC, TI2 in accordance with DIN VDE 0281
Part 1
Core identification: VDE 0293-308,
black cores
with continuous number printing
and green-yellow protective conductor
twisted in layers
Sheath: PVC, TM5 in accordance with DIN VDE
0281 Part 1
increased oil resistance
Color: gray
Standardization: HAR - UL - CSA
Technical data: DIN/VDE UL+CSA
Nominal voltage: 300/500 V 600 V
Test voltage: 3000 V
Temperature range:
(moving) -5 °C - +70 °C to +90 °C
(not moving) -40 °C - + 70° C to +90 °C
Bending radius: 12.5 x cable diameter (min.)
Flame retardancy: in accordance with VDE 0472 T. 804
Test type B and IEC = 332-1 and
CSA FT2 as well as UL VW-1
Oil resistance: very good according to DIN VDE 0281
Part 1
Note:
G = with protective conductor gn-ye
X = without protective conductor
.
Type: H05VV5-F 5 G 0,75 HA
The item price shown refers to 500 meters VDE-Kabel 10175406
