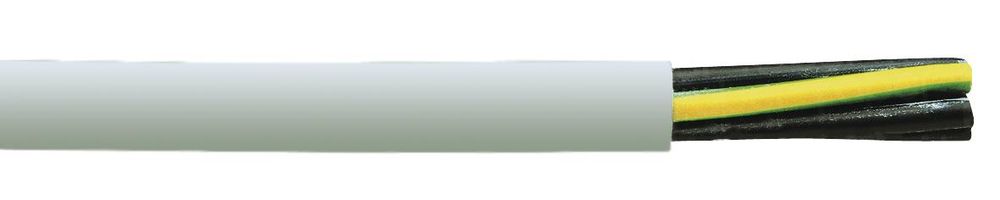

VDE-Kabel 10175206 H05VV5-F 3G0, 75 mm ², UL, CSA, VDE / HAR, SEV - A
|
842,20 EUR |
|||||||||||
|
incl. 93,17 EUR copper surcharge ( 1.002,22 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 500 meters | |||||||||||
| Lieske Part No.: | 106828 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 10175206 | ||||||||||
| UPC/EAN: | 4046725055044 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 10175206:
Application:
In plant and mechanical engineering, for export to North America and Canada. Otherwise as H05VV5-F.Structure:
Conductor: Bare copper wire,
finely stranded in accordance with VDE 0295 Class 5
Core insulation: PVC, TI2 in accordance with DIN VDE 0281
Part 1
Core identification: VDE 0293-308,
black cores
with continuous number printing
and green-yellow protective conductor
twisted in layers
Sheath: PVC, TM5 in accordance with DIN VDE
0281 Part 1
increased oil resistance
Color: gray
Standardization: HAR - UL - CSA
Technical data: DIN/VDE UL+CSA
Nominal voltage: 300/500 V 600 V
Test voltage: 3000 V
Temperature range:
(moving) -5 °C - +70 °C to +90 °C
(not moving) -40 °C - + 70° C to +90 °C
Bending radius: 12.5 x cable diameter (min.)
Flame retardancy: in accordance with VDE 0472 T. 804
Test type B and IEC = 332-1 and
CSA FT2 as well as UL VW-1
Oil resistance: very good according to DIN VDE 0281
Part 1
Note:
G = with protective conductor gn-ye
X = without protective conductor
.
Type: H05VV5-F 3 G 0,75 HA
The item price shown refers to 500 meters VDE-Kabel 10175206
Questions & answers
What is the delivery time of VDE-Kabel 10175206 H05VV5-F 3G0, 75 mm ², UL, CSA, VDE / HAR, SEV - A?
The article VDE-Kabel 10175206 H05VV5-F 3G0, 75 mm ², UL, CSA, VDE / HAR, SEV - A is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of VDE-Kabel 10175206 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you VDE-Kabel 10175206 H05VV5-F 3G0, 75 mm ², UL, CSA, VDE / HAR, SEV - A always at the best possible price. We can give you a discount of 2% on VDE-Kabel 10175206 H05VV5-F 3G0, 75 mm ², UL, CSA, VDE / HAR, SEV - A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 meters of VDE-Kabel 10175206 H05VV5-F 3G0, 75 mm ², UL, CSA, VDE / HAR, SEV - A we can offer you a price of 797,26 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of VDE-Kabel 10175206 H05VV5-F 3G0, 75 mm ², UL, CSA, VDE / HAR, SEV - A via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
VDE-Kabel 10175206 H05VV5-F 3G0, 75 mm ², UL, CSA, VDE / HAR, SEV - A is offered by us in a sales unit of 500 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
