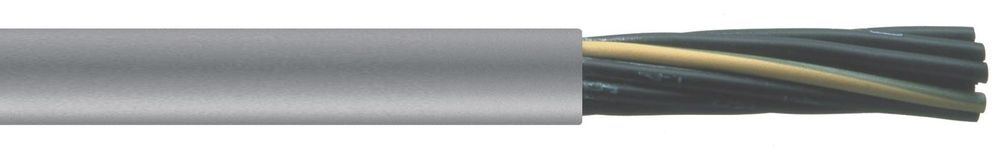

VDE-Kabel 10138006 YSLY-JZ 4G4 sq. mm 50m roll, PVC control cable with numbered cores
|
197,57 EUR |
|||||||||||
|
incl. 65,22 EUR copper surcharge ( 235,11 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 50 meters | |||||||||||
| Lieske Part No.: | 563636 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 10138006 | ||||||||||
| Weight: | 26.2 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for VDE-Kabel 10138006:
Application:
Control cable for control equipments on machine tools, conveyor and
Assembly lines, conveyor systems, equipment, etc. Suitable for
fixed installation or flexible application, with free movement without
Tensile stress or forced movements in medium-
sized mechanical stresses. The control line may
be used dry, damp and wet rooms.
Building:
Conductor: Bare copper, fine wireaccording to VDE 0295 cl 5
Insulation: PVC
Core identification: VDE 0293
JZ = black cores with
consecutive numbers
and green-yellow protective conductor
OZ = black cores with
consecutive numbers
without protective conductor
twisted in layers
Jacket: PVC with printing the
name, size and
VDE-Reg.-No.
Color: gray
Specifications:
Rated voltage: 300/500 VTest voltage: 4000 V
Temperature range: - 5 ° C + 70 ° C (dynamic)
-30 ° C to +70 ° C (non-moving)
Bending radius: 4 x cable diameter (fixed)
15 x cable diameter
(Flexible use)
Flame resistance according to VDE 0472 T. 804
Category B (= IEC 332-1)
Features: YSLY control lines are largely
resistant to the action of
chemicals such as acids and alkalis
and certain Kohlenwasserstoffver-
pounds
of cores x cross-section mm ²: 4 x 4.00
Outer diameter approx: 11.0
Cu index (kg / m%): 15 , 36
ca Weight (kg / m%): 26.2 Type: YSLY-JZ 4X4
Item: 50 MTR
Type: YSLY-JZ 4X4
The item price shown refers to 50 meters VDE-Kabel 10138006
