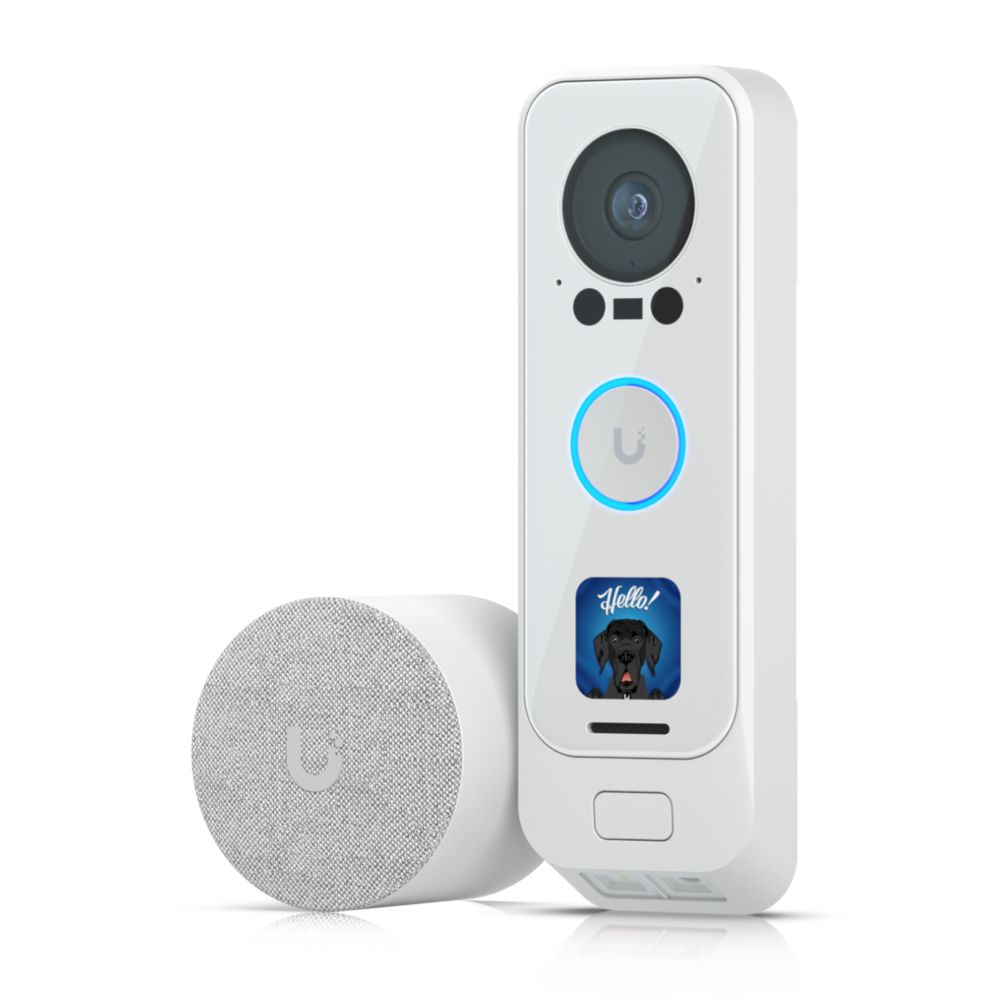

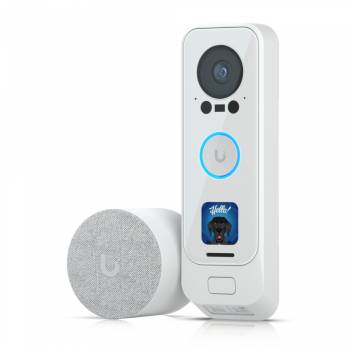

Ubiquiti Unifi Protect G4 Doorbell Professional PoE Kit / Doorbell / Wifi / 8MP Camera / 2-Way Audio / UVC-G4 Doorbell Pro PoE Kit-White

Your premium UniFi doorbell with integrated PoE and including PoE chime for plug-and-play installation. Enhanced HDR and low-light performance
Programmable welcome screen and secondary packet detection camera
AI event detection
Connected and powered by PoE
Integrated 2-way audio
Includes PoE chime
Weather resistant (covered outdoors)
Technical Specifications
UVC-G4 Doorbell Pro PoE Mechanical Dimensions Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 3,6 cm ( 1,4 inch ))
Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 1,8 cm ( 0,7 inch )) Wedge
: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 2,5 cm ( 1 inch ))
On-Wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 2,5 cm ( 1 inch )) Weight Device: 264 g (9.3 oz)
Wall mount: 56 g (2 oz)
Wedge: 33 g (1.2 oz)
Wall mount: 53 g (1.9 oz) Housing materials Aluminum alloy, polycarbonate Mount materials Wall mount: Aluminum alloy.
Wedge: Polycarbonate.
Overhead Mount: Polycarbonate Weatherproof IPX4 Optics Sensor Main Camera: 5MP CMOS sensor
Package Camera: 8MP CMOS sensor Lens Fixed focal length Viewing angle Main Camera: H: 138°, V: 114°, D: 155°
Package Camera: H: 97.5°, V: 79.4°, D: 118.2° Night Mode Built-in IR LED illumination and IR cut filter Video Video compression H.264 Resolution Main Camera: 2MP 1600 x 1200 (4:3)
Package Camera: 2MP 1600 x 1200 (4:3) Max. Frame Rate 30 FPS System Processor Quad-core Arm® Cortex®-A53 based chip Network Interface GbE RJ45 port Power Method PoE Supported Voltage Range 37–57 VDC Max. Power Consumption 7W LED Link/Activity Button (1) Doorbell button
(1) Factory reset Operating temperature -30 to 40 °C (-22 to 104 °F) Operating humidity 10 to 90% non-condensing Certifications CE, FCC, IC Audio Microphone Yes (can be disabled) Speaker Yes Software UniFi OS application UniFi Protect app UniFi Protect iOS™ and Android™
UP-Chime PoE Mechanical Dimensions Device: Ø62 x 54 mm (Ø2.5 x 5,3 cm ( 2,1 inch ))
Flush mount: Ø89 x 63.1 mm (Ø3.5 x 6,3 cm ( 2,5 inch ))
Surface mount: Ø62 x 20.2 mm (Ø2.5 x 2 cm ( 0,8 inch )) Weight Device: 158 g (5.6 oz)
Flush mount: 91 g (3.2 oz)
Surface mount: 28 g (1 oz) Enclosure Materials Aluminum alloy, polycarbonate Mount Materials Polycarbonate, zinc alloy System Processor Dual-core Xtensa®, 32-bit, 400 MIPS Network Interface 10/100 MbE port Power Method PoE Supported Voltage Range 44–57 VDC Max. Power Consumption 3.5 W ESD/EMP Protection Air: ± 16 kV, Contact: ± 8 kV LED R/G/B/W Button Factory reset Operating Temperature 0 to 40 °C (32 to 104 °F) Operating Humidity 10 to 90% non-condensing Certifications CE, FCC, IC Audio Speaker Yes Buzzer Yes Software Web Application UniFi Protect App UniFi Protect iOS™ and Android™
