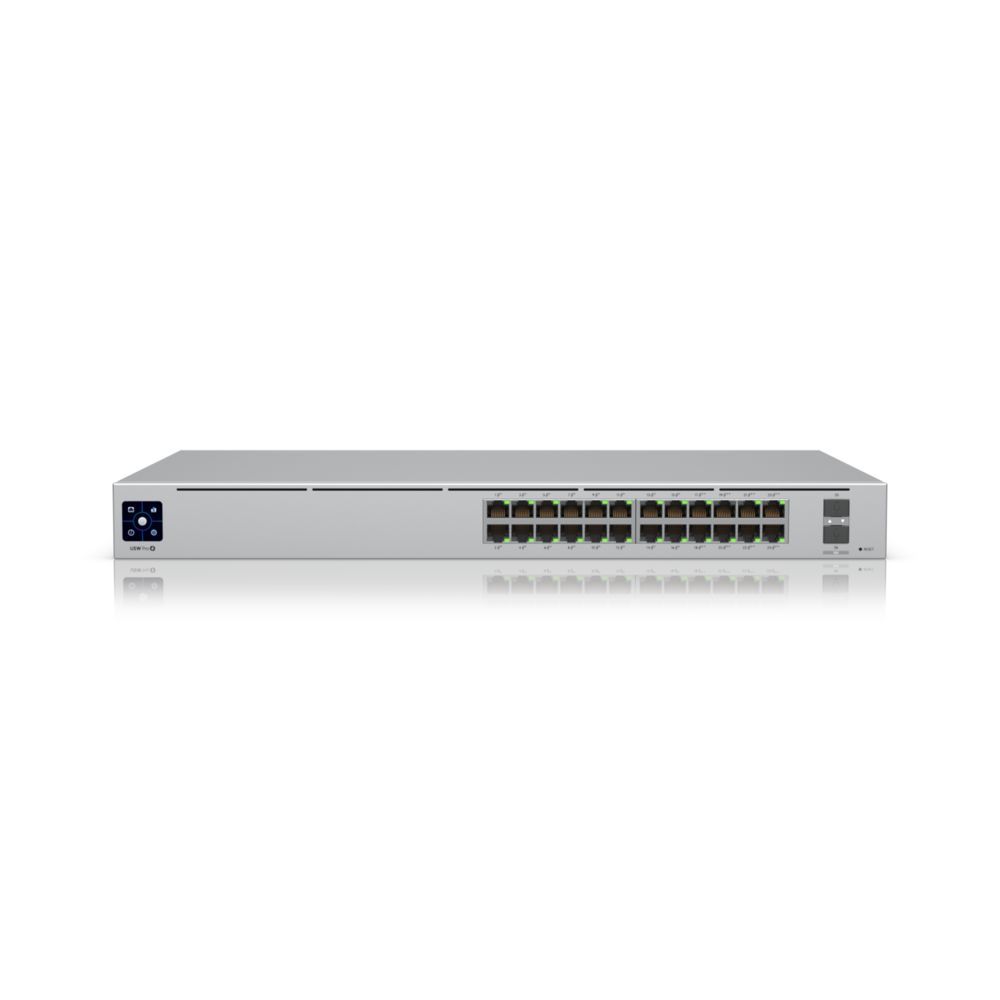

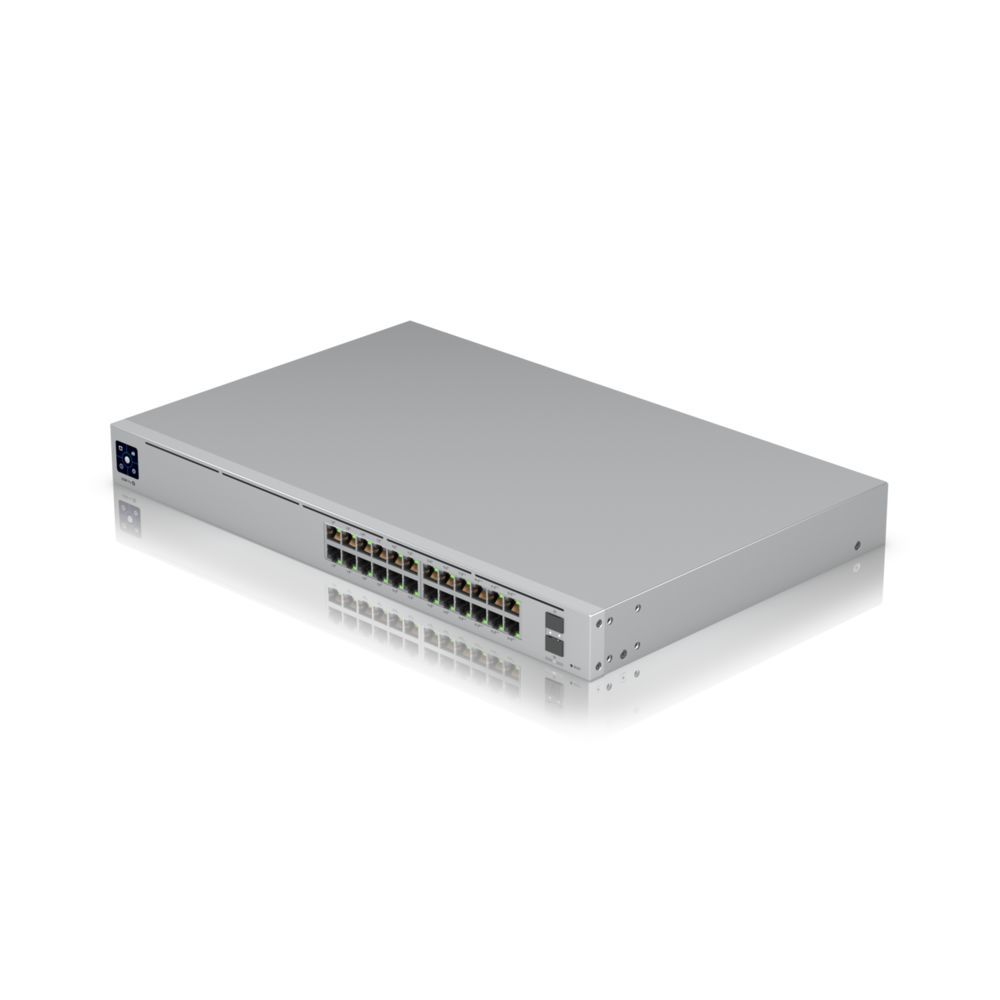

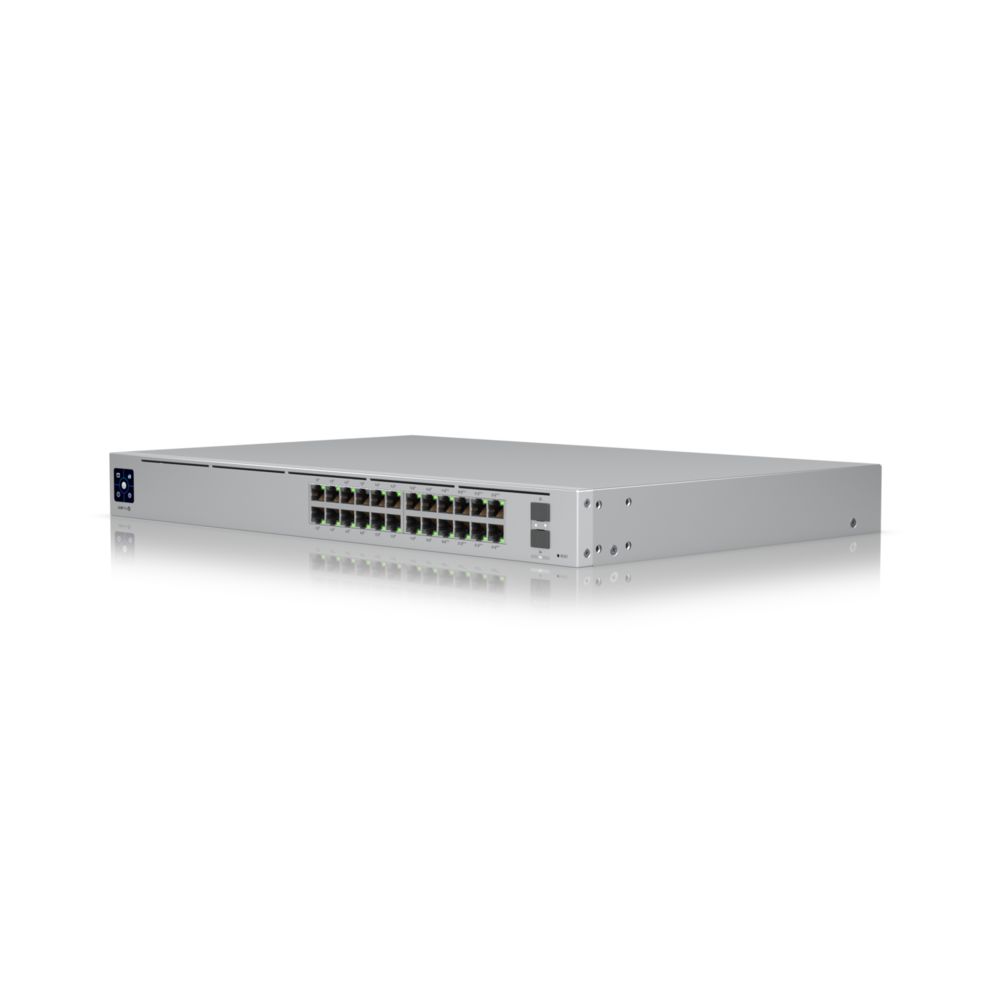

Ubiquiti UniFi Switch Pro / 24 Port / 400W / PoE++ / 2 SFP+ Ports / USW-Pro-24-POE
|
593,95 EUR 615,55 EUR |
|
|
( 706,80 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1788023 |
|---|---|
| Mfg Part No: | USW-Pro-24-POE |
| Weight: | 5.8 kg |
Product information for Ubiquiti USW-Pro-24-POE:
A 24-port Layer 3 switch with high-performance PoE++ output. (16) GbE PoE+, (8) GbE PoE++ ports
(2) 10G SFP+ ports
Total 400W PoE availability
DC backup ready
Layer 3 switching
Virtually silent cooling
Technical specifications Mechanical Dimensions 442.4 x 285, 4 x 43.7 mm (17.4 x 11.2 x 4,3 cm ( 1,7 inch )) Weight Without mounting brackets: 4.3 kg (9.5 lb)
With mounting brackets: 4.4 kg (9.7 lb) Body material SGCC- Steel Hardware Management Interface Ethernet In-Band Network Interface (24) GbE RJ45 Ports
(2) 1/10G SFP+ Ports PoE Interface (16) PoE/PoE+ (Pins 1, 2+ 3, 6-)
(8) 60W PoE++ PoE/PoE+ (Pins 1, 2+ 3, 6-) / PoE++ (Pair A 1, 2+ 3, 6-) (Pair B 4, 5+ 7, 8-) Total non-blocking throughput 44 Gbit/s Switching capacity 88 Gbps forwarding rate 65.472 Mpps Power method Universal input, 100-240V AC, 50/60 Hz
USP RPS DC input, 52V DC, 7.69A / 11.5V DC, 2.61A power supply AC/DC , internal, 450W Supported voltage range 100-240V AC Max. power consumption 50W (without PoE output) Total available PoE 400W Max. PoE wattage per port according to PSE PoE+: 32W
PoE++: 64W Voltage range PoE mode PoE: 44-57V
PoE+: 50-57V ESD/EMP protection Air: ± 16kV, Contact: ± 12kV LCM display (1) 3,3 cm ( 1,3 inch ) touch screen Factory reset button Shock and vibration ETSI300-019-1.4 -Standard Operating Temperature -5 to 40°C (23 to 104°F) Operating Humidity 10 to 90% non-condensing Certifications CE, FCC, IC LEDs System Status Ethernet PoE
Speed/Link/Activity SFP+ Link/Activity RPS Status Application Requirements UniFi Network Version 5.10.5 and above
(2) 10G SFP+ ports
Total 400W PoE availability
DC backup ready
Layer 3 switching
Virtually silent cooling
Technical specifications Mechanical Dimensions 442.4 x 285, 4 x 43.7 mm (17.4 x 11.2 x 4,3 cm ( 1,7 inch )) Weight Without mounting brackets: 4.3 kg (9.5 lb)
With mounting brackets: 4.4 kg (9.7 lb) Body material SGCC- Steel Hardware Management Interface Ethernet In-Band Network Interface (24) GbE RJ45 Ports
(2) 1/10G SFP+ Ports PoE Interface (16) PoE/PoE+ (Pins 1, 2+ 3, 6-)
(8) 60W PoE++ PoE/PoE+ (Pins 1, 2+ 3, 6-) / PoE++ (Pair A 1, 2+ 3, 6-) (Pair B 4, 5+ 7, 8-) Total non-blocking throughput 44 Gbit/s Switching capacity 88 Gbps forwarding rate 65.472 Mpps Power method Universal input, 100-240V AC, 50/60 Hz
USP RPS DC input, 52V DC, 7.69A / 11.5V DC, 2.61A power supply AC/DC , internal, 450W Supported voltage range 100-240V AC Max. power consumption 50W (without PoE output) Total available PoE 400W Max. PoE wattage per port according to PSE PoE+: 32W
PoE++: 64W Voltage range PoE mode PoE: 44-57V
PoE+: 50-57V ESD/EMP protection Air: ± 16kV, Contact: ± 12kV LCM display (1) 3,3 cm ( 1,3 inch ) touch screen Factory reset button Shock and vibration ETSI300-019-1.4 -Standard Operating Temperature -5 to 40°C (23 to 104°F) Operating Humidity 10 to 90% non-condensing Certifications CE, FCC, IC LEDs System Status Ethernet PoE
Speed/Link/Activity SFP+ Link/Activity RPS Status Application Requirements UniFi Network Version 5.10.5 and above
Questions & answers
What is the delivery time of Ubiquiti UniFi Switch Pro / 24 Port / 400W / PoE++ / 2 SFP+ Ports / USW-Pro-24-POE?
The article Ubiquiti UniFi Switch Pro / 24 Port / 400W / PoE++ / 2 SFP+ Ports / USW-Pro-24-POE is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti USW-Pro-24-POE to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti UniFi Switch Pro / 24 Port / 400W / PoE++ / 2 SFP+ Ports / USW-Pro-24-POE always at the best possible price. We can give you a discount of 2% on Ubiquiti UniFi Switch Pro / 24 Port / 400W / PoE++ / 2 SFP+ Ports / USW-Pro-24-POE if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
