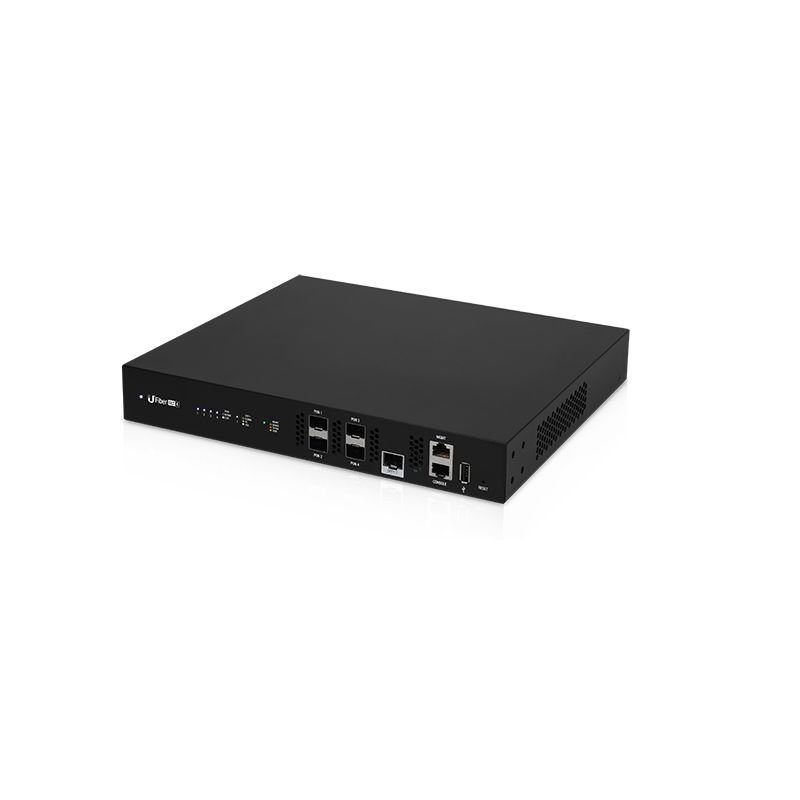

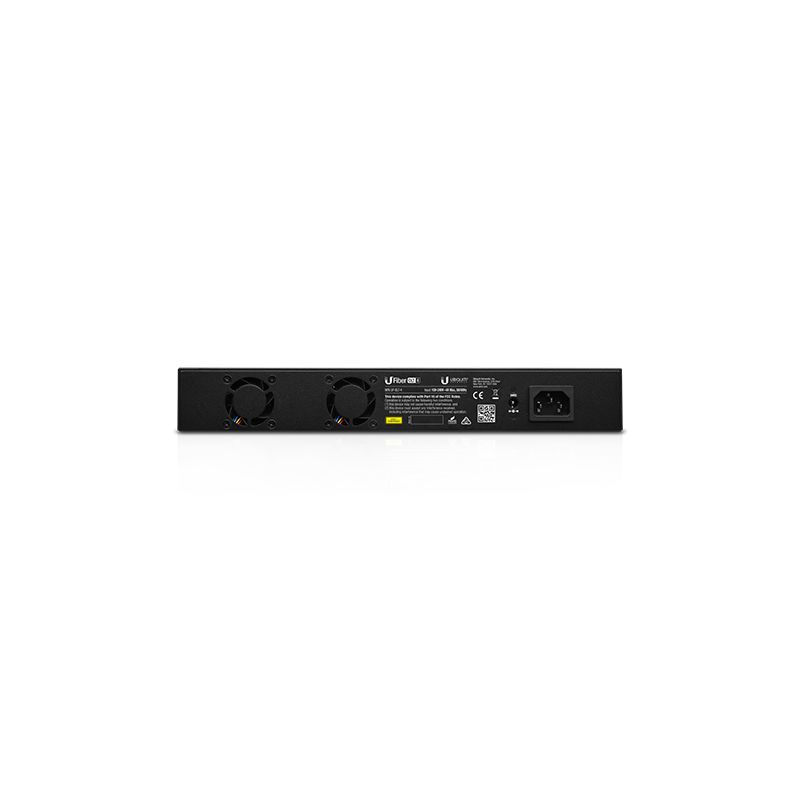

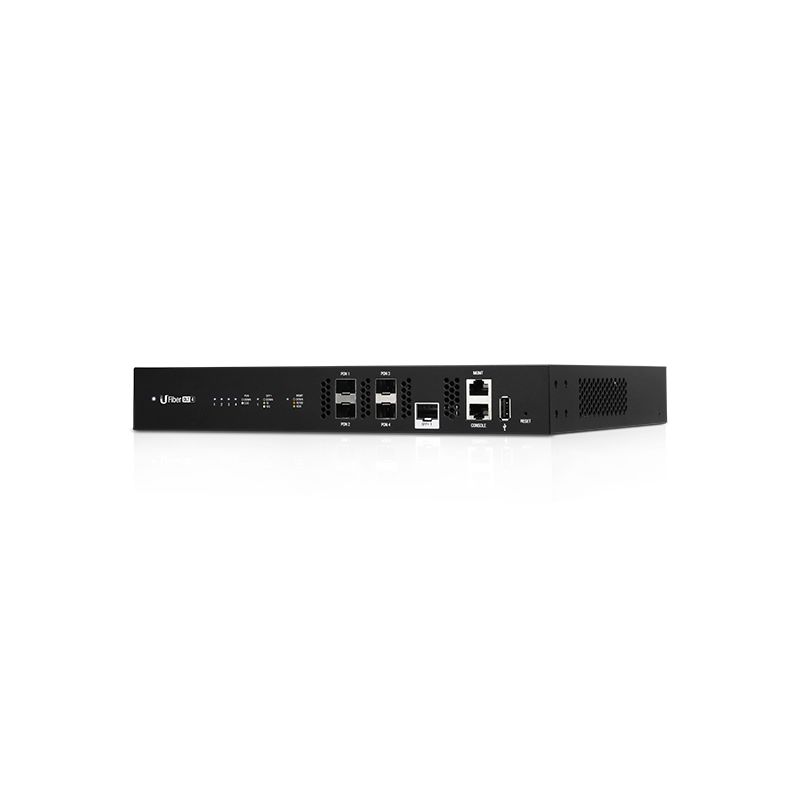

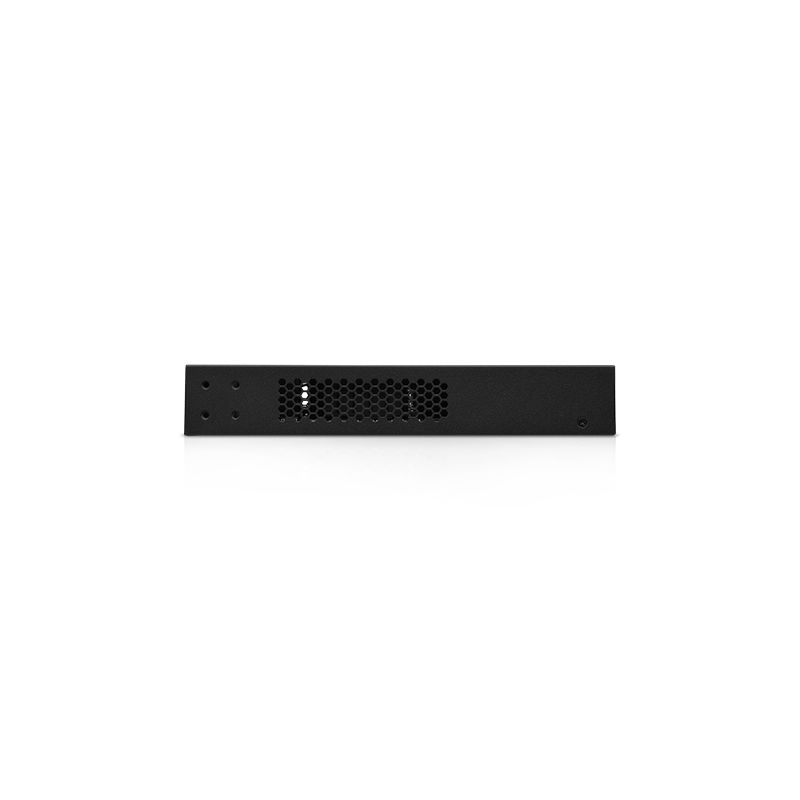

Ubiquiti U Fiber, UF-OLT-4
|
897,65 EUR |
|
|
( 1.068,20 EUR incl. VAT ) ≈ £778.26 | ≈ $1,044.86 plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1449532 |
|---|---|
| Mfg Part No: | UF-OLT-4 |
| Weight: | 3.05 kg |
Product information for Ubiquiti UF-OLT-4:
Four-port GPON Optical Line Terminal (OLT) to manage fiber optic Internet services for up to 512 clients (128 per port). GPON. 2.488 Gbps down/1.244 Gbps stream capacity
512 client capacity (4 ports)
(1) 10G SFP+ uplink ports
1U rack mount
Power redundancy support Technical specifications Mechanical Dimensions 299.8 x 258.95 x 42.55 mm Weight 1930g (without hangers)
2130g (with hangers) Case features SGCC steel Hardware Processor MIPS 1004Kc 880 MHz Dual-core Memory 512 MB DDR3, 512 MB NAND Management interface (1) Ethernet out-of-band management
(1) Ethernet In-Band Management
(1) RJ45 Serial Console Port Network Interface (4) GPON OLT SFP
(1) 10Gbps SFP+ Buttons (1) Reset LEDs/Indicator (1) Power: Blue/White. Flashing blue
: Reset to default.
Solid blue: System is starting.
Permanently white: service is ready.
(4) GPON OLT SFP
Solid/white flashing: GPON connection/activity
(1) SFP+ Ethernet: White (10G ) Green (1G), solid after connection established, flashing when active
(1) Ethernet RJ45 Out- of Band Management: Green (1G), solid after connection is established, flashes when active Power Method 100-240 VAC/50-60 Hz Universal input / 25 VDC Power supply Internal AC/DC 56W DC /DC barrel connector Supported voltage range AC input: 100 to 240 VAC / 25 to 16 VDC Max. power consumption 35 W (excluding SFP modules) Operating temperature -10 to 45 °C (14 to 113 °F) Operating humidity 10% to 90% non-condensing Software Mode OLT 2/3 Ethernet Switch and GPON Core Advanced QoS Supports 8 priority queues per user port and traffic classification Concurrent clients 512 ONUs/ONTs registered Minimum software requirements Any modern web browser
512 client capacity (4 ports)
(1) 10G SFP+ uplink ports
1U rack mount
Power redundancy support Technical specifications Mechanical Dimensions 299.8 x 258.95 x 42.55 mm Weight 1930g (without hangers)
2130g (with hangers) Case features SGCC steel Hardware Processor MIPS 1004Kc 880 MHz Dual-core Memory 512 MB DDR3, 512 MB NAND Management interface (1) Ethernet out-of-band management
(1) Ethernet In-Band Management
(1) RJ45 Serial Console Port Network Interface (4) GPON OLT SFP
(1) 10Gbps SFP+ Buttons (1) Reset LEDs/Indicator (1) Power: Blue/White. Flashing blue
: Reset to default.
Solid blue: System is starting.
Permanently white: service is ready.
(4) GPON OLT SFP
Solid/white flashing: GPON connection/activity
(1) SFP+ Ethernet: White (10G ) Green (1G), solid after connection established, flashing when active
(1) Ethernet RJ45 Out- of Band Management: Green (1G), solid after connection is established, flashes when active Power Method 100-240 VAC/50-60 Hz Universal input / 25 VDC Power supply Internal AC/DC 56W DC /DC barrel connector Supported voltage range AC input: 100 to 240 VAC / 25 to 16 VDC Max. power consumption 35 W (excluding SFP modules) Operating temperature -10 to 45 °C (14 to 113 °F) Operating humidity 10% to 90% non-condensing Software Mode OLT 2/3 Ethernet Switch and GPON Core Advanced QoS Supports 8 priority queues per user port and traffic classification Concurrent clients 512 ONUs/ONTs registered Minimum software requirements Any modern web browser
