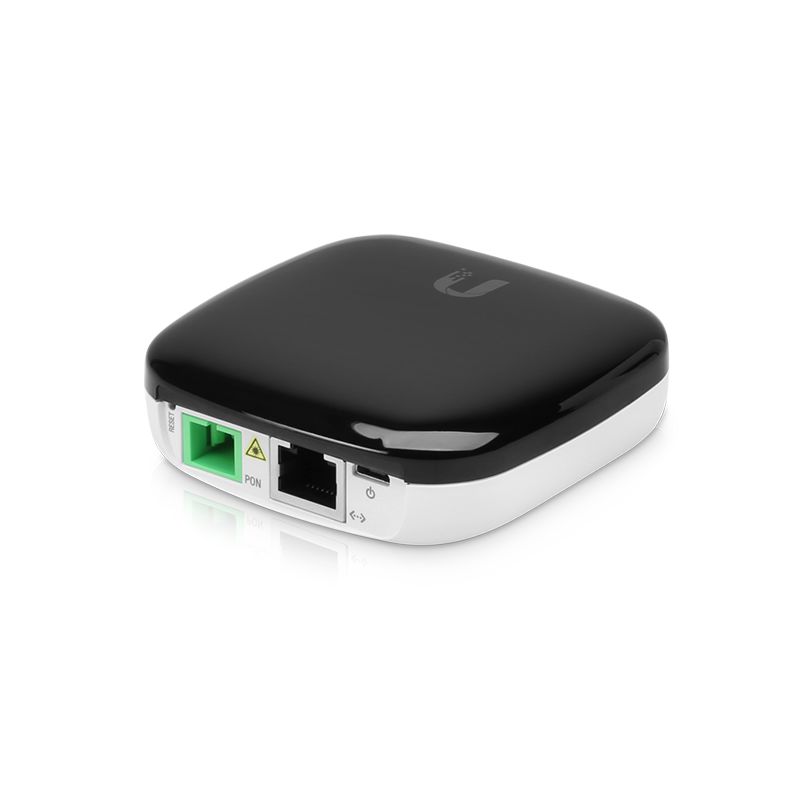

Ubiquiti Fiber UF-LOCO-5
|
183,86 EUR 190,54 EUR |
|
|
( 218,79 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1467807 |
|---|---|
| Mfg Part No: | UF-LOCO-5 |
| Weight: | 0.9 kg |
Product information for Ubiquiti UF-LOCO-5:
GPON Customer Premises Device (CPE) that combines high performance with ultra-low power consumption. (1) GPON port
(1) GbE RJ45 LAN port and 24V PoE input
Note. This device is designed for use with the UFiber OLT. Third-party OLTs may not be compatible or may not be able to establish a reliable connection to the ONU.Technical Specifications Mechanical Dimensions 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 2,6 cm ( 1 inch )) Weight 77 g ( 2.72 oz) Hardware Network Interfaces (1) SC/APC, GPON WAN
(1) RJ45, Ethernet LAN Network Interface Speeds (1) GPON WAN, ITU G.984: 2.488 Gbit/s Downstream / 1.244 Gbit/s Upstream
(1 ) GbE LAN: 10/100/1000 Mbps Management interface In-band Ethernet
PON Normal optical power range TX (Class B+): 1.5 to 5 dBm
RX: -28 to -8 dBm Power method Micro USB: 5V, 1A
24V Passive PoE (Pins +4, 5 -7, 8) Power supply Micro USB power supply*: 5 V, 1 A
*Only included in the single pack of the UF-LOCO Max. energy consumption 3.5 W Supported voltage range 4. 7 to 5.3 V Processor Specifications MIPS-32, 240 MHz Memory Information 128 MB DDR3 Button (1) Reset Operating Temperature -10 to 45 °C (14 to 113 °F) Operating Humidity 10 to 90% non-condensing Certifications CE, FCC, IC
(1) GbE RJ45 LAN port and 24V PoE input
Note. This device is designed for use with the UFiber OLT. Third-party OLTs may not be compatible or may not be able to establish a reliable connection to the ONU.Technical Specifications Mechanical Dimensions 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 2,6 cm ( 1 inch )) Weight 77 g ( 2.72 oz) Hardware Network Interfaces (1) SC/APC, GPON WAN
(1) RJ45, Ethernet LAN Network Interface Speeds (1) GPON WAN, ITU G.984: 2.488 Gbit/s Downstream / 1.244 Gbit/s Upstream
(1 ) GbE LAN: 10/100/1000 Mbps Management interface In-band Ethernet
PON Normal optical power range TX (Class B+): 1.5 to 5 dBm
RX: -28 to -8 dBm Power method Micro USB: 5V, 1A
24V Passive PoE (Pins +4, 5 -7, 8) Power supply Micro USB power supply*: 5 V, 1 A
*Only included in the single pack of the UF-LOCO Max. energy consumption 3.5 W Supported voltage range 4. 7 to 5.3 V Processor Specifications MIPS-32, 240 MHz Memory Information 128 MB DDR3 Button (1) Reset Operating Temperature -10 to 45 °C (14 to 113 °F) Operating Humidity 10 to 90% non-condensing Certifications CE, FCC, IC
Questions & answers
What is the delivery time of Ubiquiti Fiber UF-LOCO-5?
The article Ubiquiti Fiber UF-LOCO-5 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti UF-LOCO-5 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti Fiber UF-LOCO-5 always at the best possible price. We can give you a discount of 2% on Ubiquiti Fiber UF-LOCO-5 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
