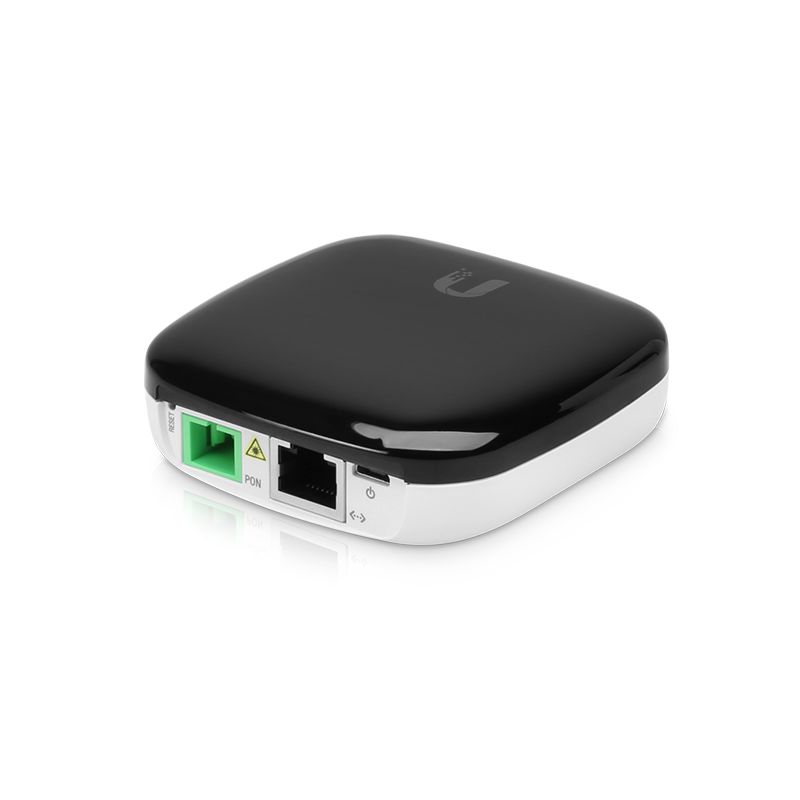

Ubiquiti Fiber UF-LOCO
|
39,61 EUR 40,30 EUR |
|
|
( 47,14 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1449533 |
|---|---|
| Mfg Part No: | UF-LOCO |
| Weight: | 0.33 kg |
Product information for Ubiquiti UF-LOCO:
GPON Customer Premises Device (CPE) that combines high performance with ultra-low power consumption. (1) GPON port
(1) GbE RJ45 LAN port and 24V PoE input
Note. This device is designed for use with the UFiber OLT. Third-party OLTs may not be compatible or may not be able to establish a reliable connection to the ONU.Technical Specifications Mechanical Dimensions 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 2,6 cm ( 1 inch )) Weight 77 g ( 2.72 oz) Hardware Network Interfaces (1) SC/APC, GPON WAN
(1) RJ45, Ethernet LAN Network Interface Speeds (1) GPON WAN, ITU G.984: 2.488 Gbit/s Downstream / 1.244 Gbit/s Upstream
(1 ) GbE LAN: 10/100/1000 Mbps Management interface In-band Ethernet
PON Normal optical power range TX (Class B+): 1.5 to 5 dBm
RX: -28 to -8 dBm Power method Micro USB: 5V, 1A
24V Passive PoE (Pins +4, 5 -7, 8) Power supply Micro USB power supply*: 5 V, 1 A
*Only included in the single pack of the UF-LOCO Max. energy consumption 3.5 W Supported voltage range 4. 7 to 5.3 V Processor Specifications MIPS-32, 240 MHz Memory Information 128 MB DDR3 Button (1) Reset Operating Temperature -10 to 45 °C (14 to 113 °F) Operating Humidity 10 to 90% non-condensing Certifications CE, FCC, IC
(1) GbE RJ45 LAN port and 24V PoE input
Note. This device is designed for use with the UFiber OLT. Third-party OLTs may not be compatible or may not be able to establish a reliable connection to the ONU.Technical Specifications Mechanical Dimensions 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 2,6 cm ( 1 inch )) Weight 77 g ( 2.72 oz) Hardware Network Interfaces (1) SC/APC, GPON WAN
(1) RJ45, Ethernet LAN Network Interface Speeds (1) GPON WAN, ITU G.984: 2.488 Gbit/s Downstream / 1.244 Gbit/s Upstream
(1 ) GbE LAN: 10/100/1000 Mbps Management interface In-band Ethernet
PON Normal optical power range TX (Class B+): 1.5 to 5 dBm
RX: -28 to -8 dBm Power method Micro USB: 5V, 1A
24V Passive PoE (Pins +4, 5 -7, 8) Power supply Micro USB power supply*: 5 V, 1 A
*Only included in the single pack of the UF-LOCO Max. energy consumption 3.5 W Supported voltage range 4. 7 to 5.3 V Processor Specifications MIPS-32, 240 MHz Memory Information 128 MB DDR3 Button (1) Reset Operating Temperature -10 to 45 °C (14 to 113 °F) Operating Humidity 10 to 90% non-condensing Certifications CE, FCC, IC
Questions & answers
What is the delivery time of Ubiquiti Fiber UF-LOCO?
The article Ubiquiti Fiber UF-LOCO is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti UF-LOCO to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti Fiber UF-LOCO always at the best possible price. We can give you a discount of 2% on Ubiquiti Fiber UF-LOCO if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
