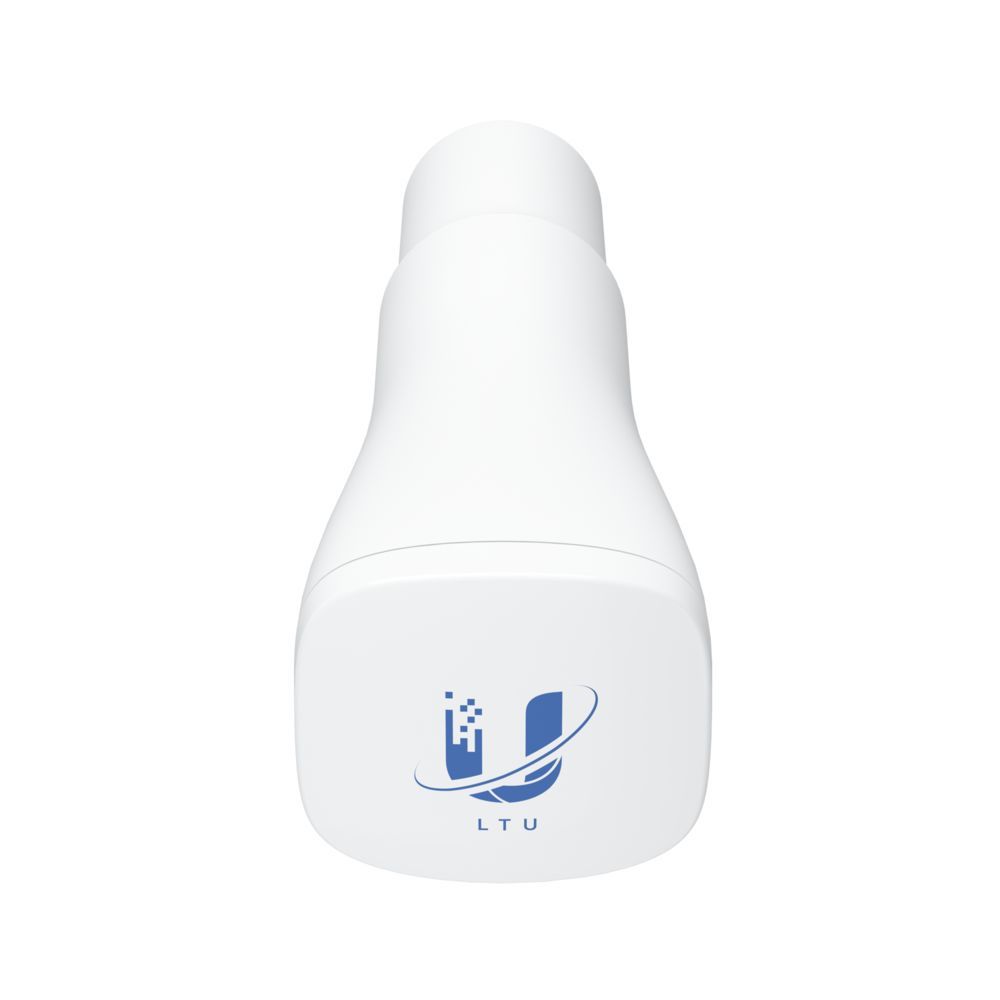

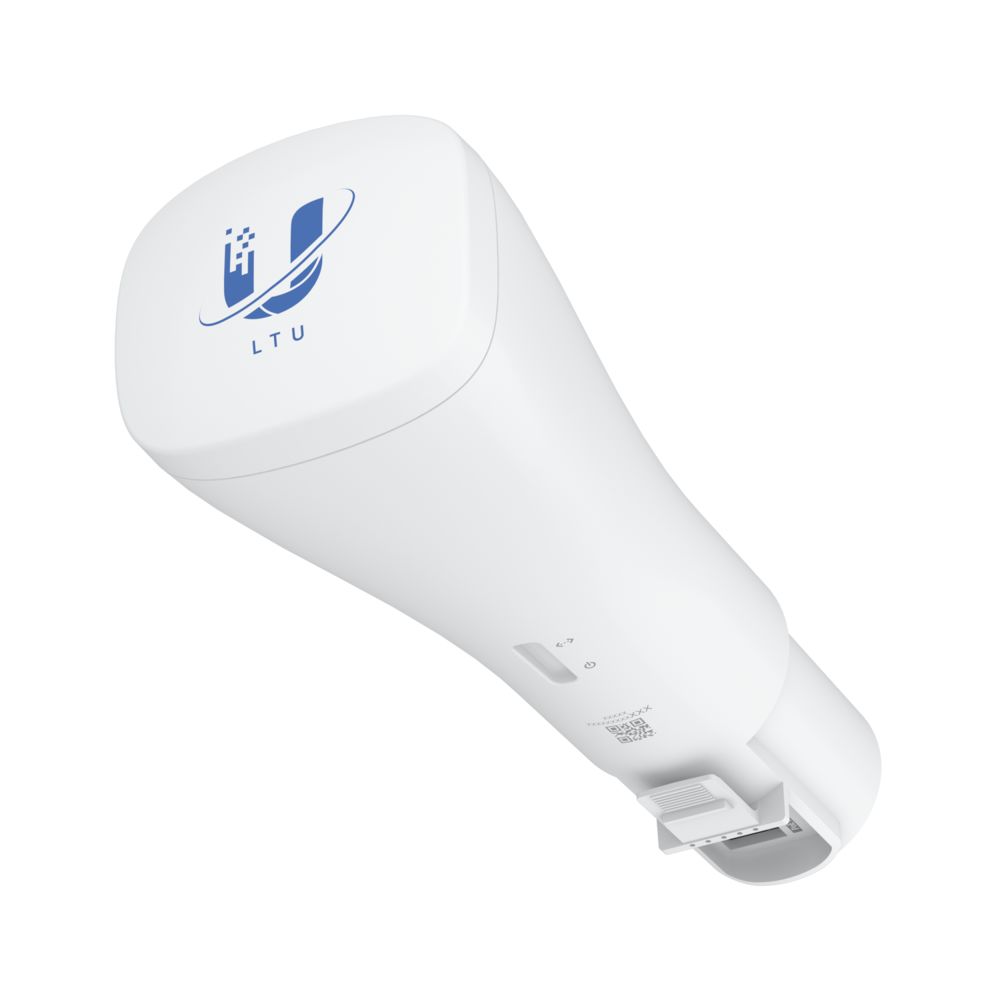

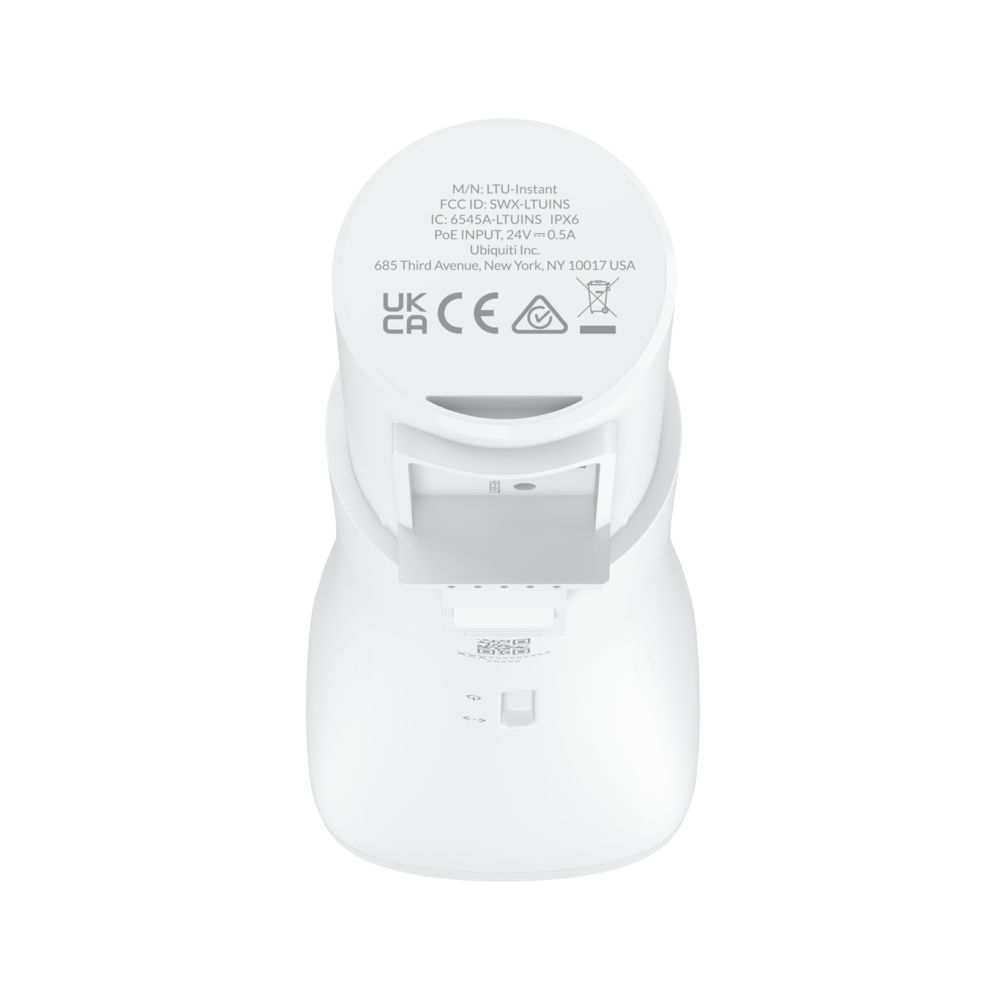

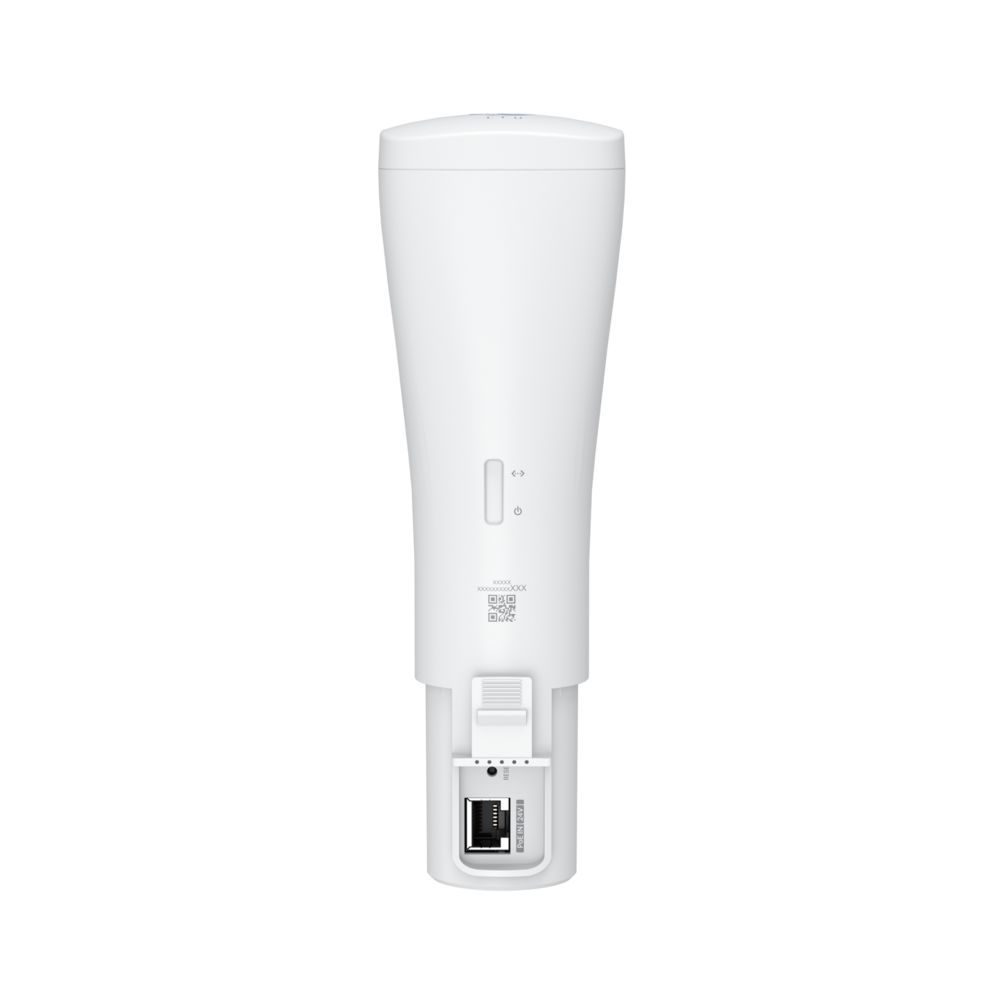

Ubiquiti LTU-Instant-5 PtMP 5GHz Client
|
301,74 EUR 312,71 EUR |
|
|
( 359,07 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1705931 |
|---|---|
| Mfg Part No: | LTU-Instant-5 |
| Weight: | 1.07 kg |
Product information for Ubiquiti LTU-Instant-5:
22 dBi high-gain antenna with InnerFeed® technology
Easy integration into LBE 5AC Gen 2 deployments
Includes (5) feeds and (5) PoE adapters
Technical specifications Mechanical Dimensions Feed: 201.46 x 64.15 x 56.15 mm (7.93 x 2.53 x 2.21 in)
Antenna: 358 x 271.95 x 288.5 mm (14.09 x 10.71 x 11.36 in) Weight Lining : 215 g (7.58 oz)
Antenna: 890 g (1.96 lb)
Antenna with mount: 1.07 kg (2.36 lb) Housing material UV-stabilized polycarbonate Wind load 275 N at 200 km/h (61.8 lbf at 125 mph) Weatherproof IPX6 Hardware Network interface (1) GbE RJ45 port Power method Passive PoE 2-pair (4, 5+ 7, 8-) Power supply 24V, 0.5A Gigabit PoE adapter (included Included) Supported Voltage Range 22-26V DC Max Power Consumption 8.5W RF Connections Internal LEDs Power/Ethernet Operating Temperature -40 to 60°C (-40 to 140°F) Operating Humidity 5 to 95% non-condensing Certifications FCC, IC , CE Software Modes PtMP CPE, PtP*
*Firmware series 1.5.1 and above 1.5.x. Services SNMP, SSH, Dynamic DNS, Web Server, Remote Protocol, Ping Watchdog Utilities airView®, Speed Test, Orientation, Discovery, Ping, Traceroute, Cable Test, Constellation Auto Distance Adjustment Yes Auto Power Adjustment Yes Network Bridge/Router* Mode
*The Router mode is only available in PtMP CPE mode. Security Yes Static reporting Yes Management interface Bluetooth management for easy setup via
UISP app WEB interface Minimum software requirements
Any modern iOS™ or Android™ based smartphone with web browser System Maximum throughput 900+ Mbps*
*FW- Version 2.3.0 and above. Encryption WPA2-PSK (AES) Uplink/Downlink Ratio 25/75, 33/67, 50/50 RF Working Frequency* 5.15 to 5.95 GHz
*Depending on regulatory region. Max. conducted transmission power 22 dBm (per chain) Channel bandwidth 10/20/30/40/50/60/80/100 MHz*
*FW version 2.3.0 and higher. Antenna gain 22 dBi Isolation 20 dB
Questions & answers
What is the delivery time of Ubiquiti LTU-Instant-5 PtMP 5GHz Client?
The article Ubiquiti LTU-Instant-5 PtMP 5GHz Client is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti LTU-Instant-5 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti LTU-Instant-5 PtMP 5GHz Client always at the best possible price. We can give you a discount of 2% on Ubiquiti LTU-Instant-5 PtMP 5GHz Client if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
