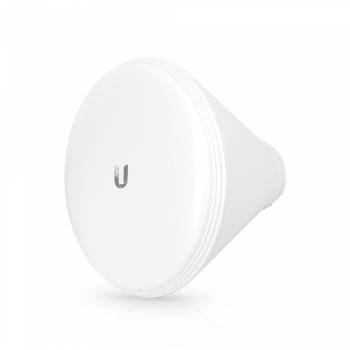

Ubiquiti sector antenna Horn-5-45
|
63,82 EUR 66,14 EUR |
|
|
( 75,95 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Lieske Part No.: | 1705152 |
|---|---|
| Mfg Part No: | Horn-5-45 |
| Weight: | 0.002 kg |
Product information for Ubiquiti Horn-5-45:
5 GHz horn antennas with beam width and precise beam angles for specific beam shaping in the range of 30° to 90°.
Improved beamforming
Improved co-location performance
One-button release for easy antenna changing
Compatible with airFiber, LTU and airMAX radios
Technical specificationsHorn-5-30 Dimensions Ø 221.4 x 184.2 mm (8.71 x 18,5 cm ( 7,3 inch )) Weight 1.1 kg (2.4 pounds) Supported Frequency Range 5.15 - 5.85 GHz Gain 19 dBi HPOL Beamwidth 30° VPOL Beamwidth 30° Elevation Beamwidth 30° Maximum VSWR 1.7:1 Wind Survivability 200 km/h (125 mph) Wind load 56 N at 200 km/h (12.6 lbf at 125 mph) Polarization Dual-Linear Cross-Pole Isolation 17 dB Horn-5-45 Dimensions Ø 175 x 96 mm (6. 9 x 9,6 cm ( 3,8 inch )) Weight 1.34 kg (3 pounds) Supported Frequency Range 5.15-5.85 GHz Gain 15.5 dBi HPOL Beamwidth 45° VPOL Beamwidth 45° Elevation Beamwidth 45° Maximum VSWR 1.7: 1 Wind survivability 200 km/h (125 mph) Wind load 56 N at 200 km/h (12.6 lbf at 125 mph) Polarization Dual-Linear Cross-Pole Isolation 17 dB Horn-5-60 Dimensions 161.6 x 173, 3 x 170.9 mm (6.4 x 6.82 x 6.73 inches) Weight 720 g (1.6 pounds) Supported frequency range 5.15-5.85 GHz Gain 16 dBi HPOL beamwidth 60° VPOL beamwidth 60° Elevation Beam Width 30° Maximum VSWR 2:1 Wind Survivability 200 km/h (125 mph) Wind Load 50 N at 200 km/h (11.2 lbf at 125 mph) Polarization Dual-Linear Cross-Pole Isolation 17 dB Horn-5 -90 Dimensions 152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46 inches) Weight 920 g (2 pounds) Supported frequency range 5.15-5.85 GHz Gain 13 dBi HPOL -Beam Width 90° VPOL Beam Width 90° Elevation Beam Width 45° Maximum VSWR 2:1 Wind Survivability 200 km/h (125 mph) Wind Load 46 N at 200 km/h (10.3 lbf at 125 mph) Polarization Dual-Linear Cross-Pol -Isolation 17 dB
Improved beamforming
Improved co-location performance
One-button release for easy antenna changing
Compatible with airFiber, LTU and airMAX radios
Technical specificationsHorn-5-30 Dimensions Ø 221.4 x 184.2 mm (8.71 x 18,5 cm ( 7,3 inch )) Weight 1.1 kg (2.4 pounds) Supported Frequency Range 5.15 - 5.85 GHz Gain 19 dBi HPOL Beamwidth 30° VPOL Beamwidth 30° Elevation Beamwidth 30° Maximum VSWR 1.7:1 Wind Survivability 200 km/h (125 mph) Wind load 56 N at 200 km/h (12.6 lbf at 125 mph) Polarization Dual-Linear Cross-Pole Isolation 17 dB Horn-5-45 Dimensions Ø 175 x 96 mm (6. 9 x 9,6 cm ( 3,8 inch )) Weight 1.34 kg (3 pounds) Supported Frequency Range 5.15-5.85 GHz Gain 15.5 dBi HPOL Beamwidth 45° VPOL Beamwidth 45° Elevation Beamwidth 45° Maximum VSWR 1.7: 1 Wind survivability 200 km/h (125 mph) Wind load 56 N at 200 km/h (12.6 lbf at 125 mph) Polarization Dual-Linear Cross-Pole Isolation 17 dB Horn-5-60 Dimensions 161.6 x 173, 3 x 170.9 mm (6.4 x 6.82 x 6.73 inches) Weight 720 g (1.6 pounds) Supported frequency range 5.15-5.85 GHz Gain 16 dBi HPOL beamwidth 60° VPOL beamwidth 60° Elevation Beam Width 30° Maximum VSWR 2:1 Wind Survivability 200 km/h (125 mph) Wind Load 50 N at 200 km/h (11.2 lbf at 125 mph) Polarization Dual-Linear Cross-Pole Isolation 17 dB Horn-5 -90 Dimensions 152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46 inches) Weight 920 g (2 pounds) Supported frequency range 5.15-5.85 GHz Gain 13 dBi HPOL -Beam Width 90° VPOL Beam Width 90° Elevation Beam Width 45° Maximum VSWR 2:1 Wind Survivability 200 km/h (125 mph) Wind Load 46 N at 200 km/h (10.3 lbf at 125 mph) Polarization Dual-Linear Cross-Pol -Isolation 17 dB
Questions & answers
What is the delivery time of Ubiquiti sector antenna Horn-5-45?
The article Ubiquiti sector antenna Horn-5-45 is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ubiquiti Horn-5-45 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ubiquiti sector antenna Horn-5-45 always at the best possible price. We can give you a discount of 2% on Ubiquiti sector antenna Horn-5-45 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
